Electrocomponents

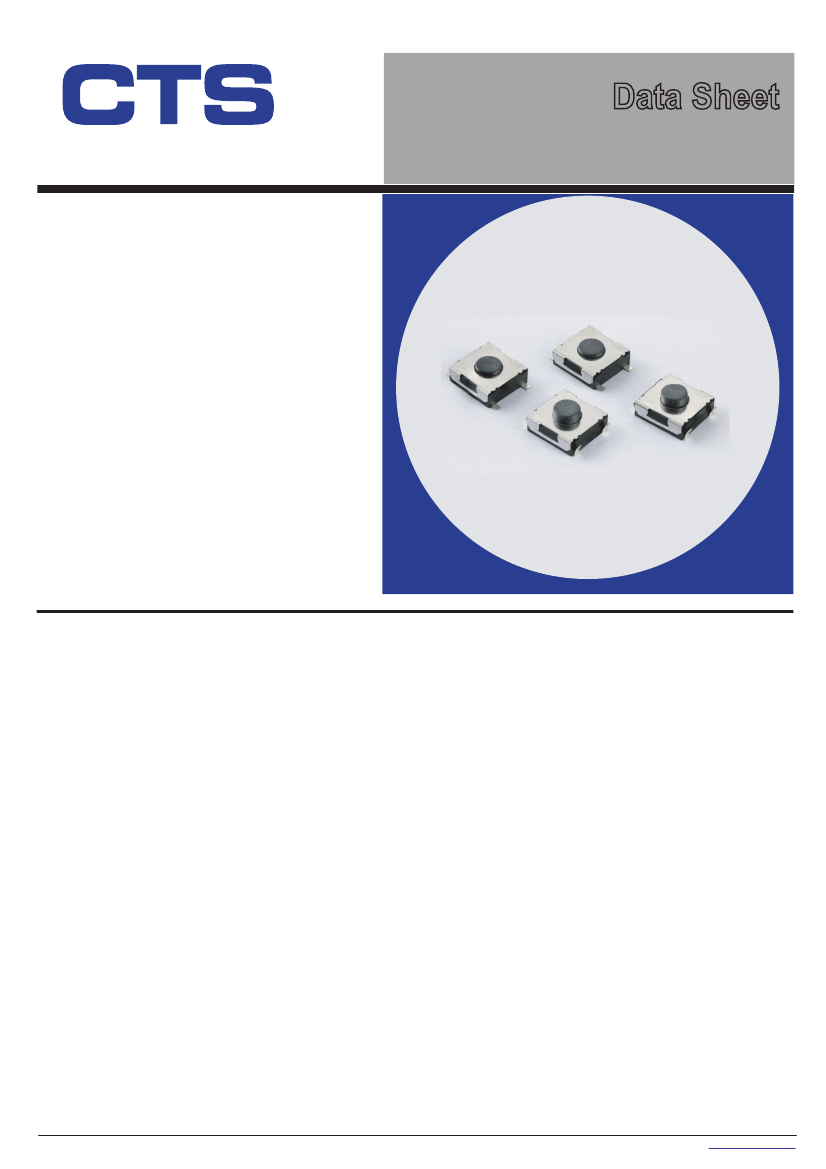

6.2 x 6.2mm Compact
Tactile Switch
Features
Optimized Mechanical Features
• Surface mount gull-wing and J bend terminal
configurations
• Compatible with IR reflow and manual soldering
• Variety of operating force & actuator height options
®
Series 222C
Data Sheet
Tactile Switch
Optimized Contact System
• Excellent tactile feedback
Materials
• Silver coated terminals for better solderability
• High temperature materials (UL94V-0)
• RoHS compliant
Electrical and Mechanical Specifications
Switch Contact Resistance
100 milliohms maximum
Insulation Resistance
100 Megohms minimum between
terminals
Maximum Rating
50 mA 12 VDC
Dielectric Strength
250 VAC for 1 minute between adjacent
terminals
Operating Force
160 gf or 260 gf
Travel
0.25mm
Operating Temperature
- 40°C to +85°C
Storage Temperature
- 40°C to +85°C
Actuator Strength
3 Kgf maximum
Actuation Life
160 gf: 1,000,000 cycles
260 gf: 500,000 cycles
Allowable Solder Time
IR Reflow: Up to 5 seconds at 260°C.
Manual soldering: Up to 3 seconds at 350°C
Packaging
Standard : Tape and reel packaging with
330mm diameter reel and 16mm wide plastic tape
1-2
CTS Electrocomponents
© 2015 CTS Corporation. All rights reserved. Information subject to change.
3/27/15
www.ctscorp.com
CTS SERIES 222CM - Surface Mount Gull Wing
8.0
6.2
0.7
4-1.3
1
2
4.5
3
4
6.1
5.0
9.0
CIRCUIT DIAGRAM
PCB LAYOUT
3.0
6.2
0.15
2.0
“L”
DIMENSION : mm
STANDARD TOLERANCE :
.X (1 PLACE) : ±0.15
5.8
CTS SERIES 222CJ - Surface Mount J Bend Terminal
7.2
6.2
4-1.3
0.7
3
4
5.0
8.0
4.5
6.1
CIRCUIT DIAGRAM
PCB LAYOUT
3.0
6.2
1.2
2.0
“L”
5.8
DIMENSION : mm
STANDARD TOLERANCE :
.X (1 PLACE) : ±0.15
Ordering Information
222C – M
V
A
A
Actuator Force
A:
160 gf
B:
260 gf
R
Packaging
R
: TAPE & REEL PACKAGING
Termination
M:
SURFACE MOUNT GULL WING
J
: SURFACE MOUNT J BEND
Note:
Actuating Direction
V:
VERTICAL
Actuator Height “L”
A:
2.5mm
B:
3.4mm
C:
3.1mm
Consult CTS for other common features not
listed.
2 -2
CTS Electrocomponents
© 2015 CTS Corporation. All rights reserved. Information subject to change.
3/27/15
www.ctscorp.com
4.5
1
2
4.5
