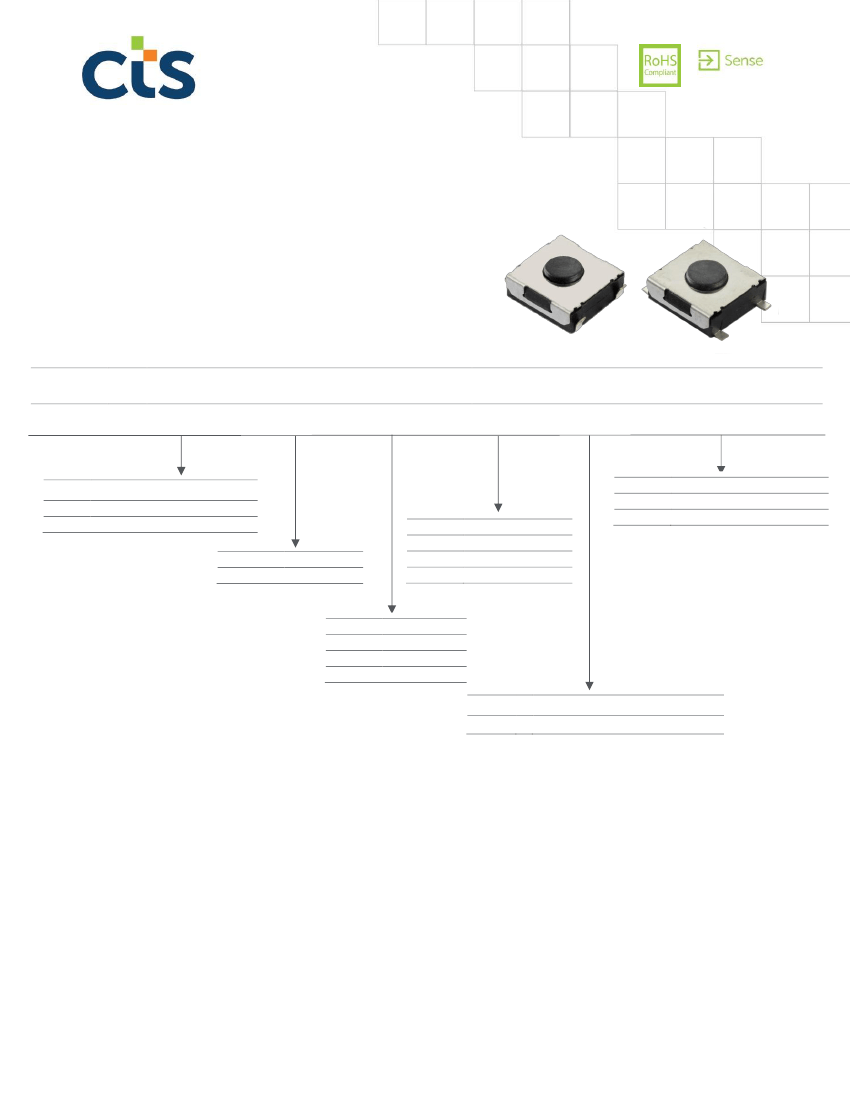

Series 222D
6.2 x 6.2mm Compact Tactile Switch
Surface mount gull wing and J-bend terminal configurations
Compatible with IR reflow and manual soldering
Variety of operating force & actuator height options
Ordering Information
Series
222D
Terminal
Type
M
Actuating
Direction
V
Actuator
Height “L”
A
B Actuation
Force
S
Packaging
R
Ground
Terminal
G
R
R
R
Spec.
T
Without
T
With
T
A
Code
Spec.
M
Surface mount gull wing
J
Surface mount J-bend
Code
V
Spec.
Vertical
Code
A
B
C
Code
A
B
C
Spec.
2.5mm
3.1mm
3.5mm
Spec.
160 gf, black
360 gf, salmon
260 gf, brown
Code
Blank
*G
*Ground terminal option is not
T
available for
(1) Surface mount gull wing type
(2) 3.5mm actuator height
(3) 360 gf actuator force)
T
Code
R
Spec.
Tape & reel packaging
T
Notes: Contact CTS for other common features not listed.
T
2018-8-29 Rev. A
www.ctscorp.com
Page 1 of 6
© 2018 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Series 222D
Tactile Switch
Electrical Specifications
Parameter
Contact Resistance
Insulation Resistance
Dielectric Strength
Nonswitching Rating
Between insulated
terminals
1 minute between
adjacent switches
100
250
50
or
12
Conditions & Remarks
Min
Max
100
Unit
milliohms
Megohms
VAC
mA
or
VDC
Mechanical and Environmental
Soldering
RoHS
Operating Force
Actuation Life
Actuator Strength
Travel
Packaging
Operating Temperature
Range
Storage Temperature
Range
Maximum reflow temperature, 260°C for 5 seconds
Maximum manual temperature, 350°C for 3 seconds
Lead-Free. Fully compliant to RoHS Directive 2011/65/EU
160, 260, or 360 gf
160 gf: 1,000,000 cycles
260 gf: 500,000 cycles
360 gf: 200,000 cycles
3 Kgf maximum
0.25 +0.2/-0.1mm
Standard tape and reel packaging
-40°C to +85°C
-40°C to +85°C
2018-8-29 Rev. A
www.ctscorp.com
Page 2 of 6
© 2018 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Series 222D
Tactile Switch
Mechanical Specifications

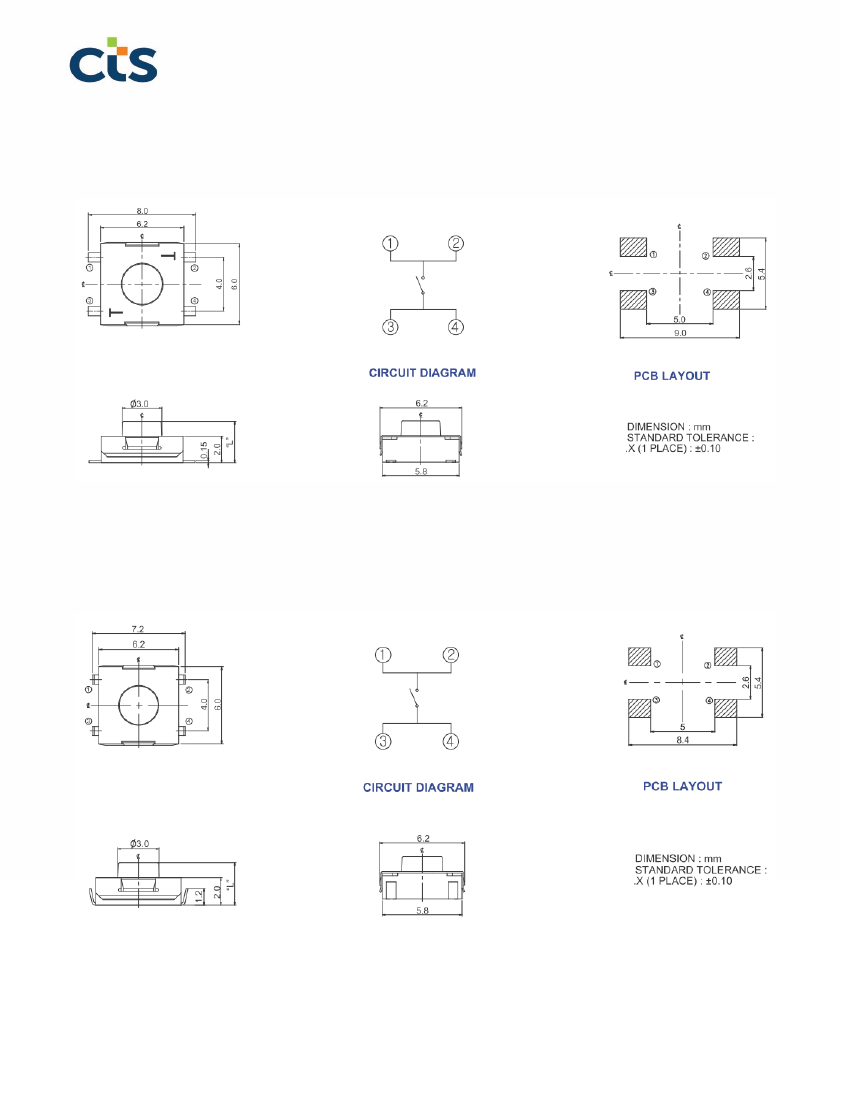

Figure 1 – 222DM, Surface Mount Gull Wing, Without Ground Terminal
Figure 2 – 222DJ, Surface Mount J-Bend Terminal, Without Ground Terminal
2018-8-29 Rev. A
www.ctscorp.com
Page 3 of 6
© 2018 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Series 222D
Tactile Switch
Figure 3 – 222DJ…G, Surface Mount J Bend Terminal, With Ground Terminal

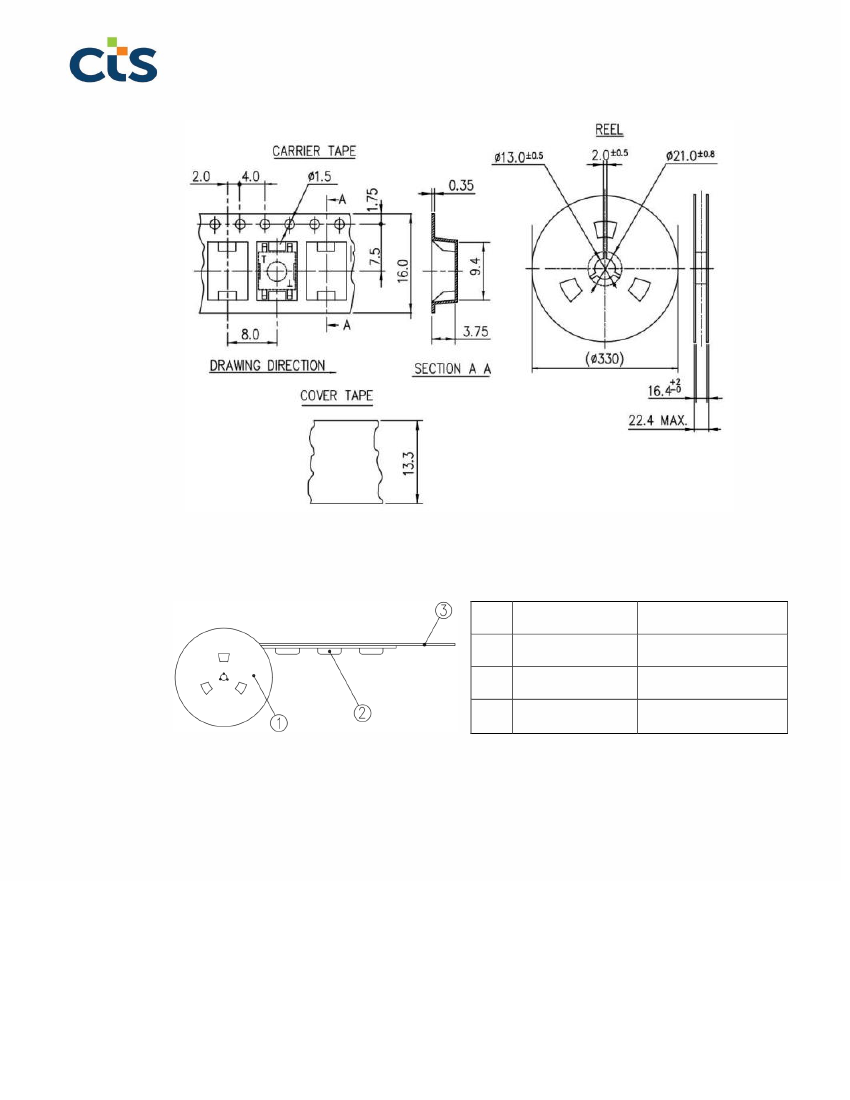

Packing: Tape and Reel
Surface Mount Gull Wing/J-Bend, Without Ground Terminal
The packing specifications:
Structure and materials:
No
①
②
③
1.
2.
3.
4.
5.
6.
7.
PART NAME
REEL
CARRIER TAPE
COVER TAPE
MATERIAL
POLYSTYRENE
POLYSTYRENE
POLYESTER
Packing quantity: 2,000 pcs/reel
More than 10 empty pockets should remain at each end of the carrier tape for each reel.
Shortage of less than 10 pcs a reel is acceptable but no more than 3 consecutive empty pockets are
allowed.
Stripping strength of cover tape is between 10 gf to 70 gf and stripping angle should be within
165°~180°.
The product in the pocket of carrier tape should be placed in a specified correct position.
Tape and reel per EIA-481.
Dimensions:
2018-8-29 Rev. A
www.ctscorp.com
Page 4 of 6
© 2018 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
Series 222D
Tactile Switch
Surface Mount J-Bend, With Ground Terminal
The packing specifications:
Structure and materials:
No
PART NAME
MATERIAL
POLYSTYRENE
POLYSTYRENE
POLYESTER
① REEL
② CARRIER TAPE
③ COVER TAPE
1.
2.
3.
4.
5.
6.
7.
Packing quantity: 2,200 pcs/reel
More than 10 empty pockets should remain at each end of the carrier tape for each reel.
Shortage of less than 10 pcs a reel is acceptable but no more than 3 consecutive empty pockets are
allowed.
Stripping strength of cover tape is between 10 gf to 70 gf and stripping angle should be within
165°~180°.
The product in the pocket of carrier tape should be placed in a specified correct position.
Tape and reel per EIA-481.
Dimensions:
2018-8-29 Rev. A
www.ctscorp.com
Page 5 of 6
© 2018 CTS® Corporation. Information/product(s) subject to change. No warranty that product(s) will meet the stated specifications for customer specific applications or test
equipment. Visit www.ctscorp.com for list of applicable patent(s), more information, or to request a quote.
