5-103978-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-103978-8

5-103978-8: Description9 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-103978-8 Overview

9 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE

5-103978-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	AMPMODU
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15)
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	103978
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	9
Base Number Matches	1

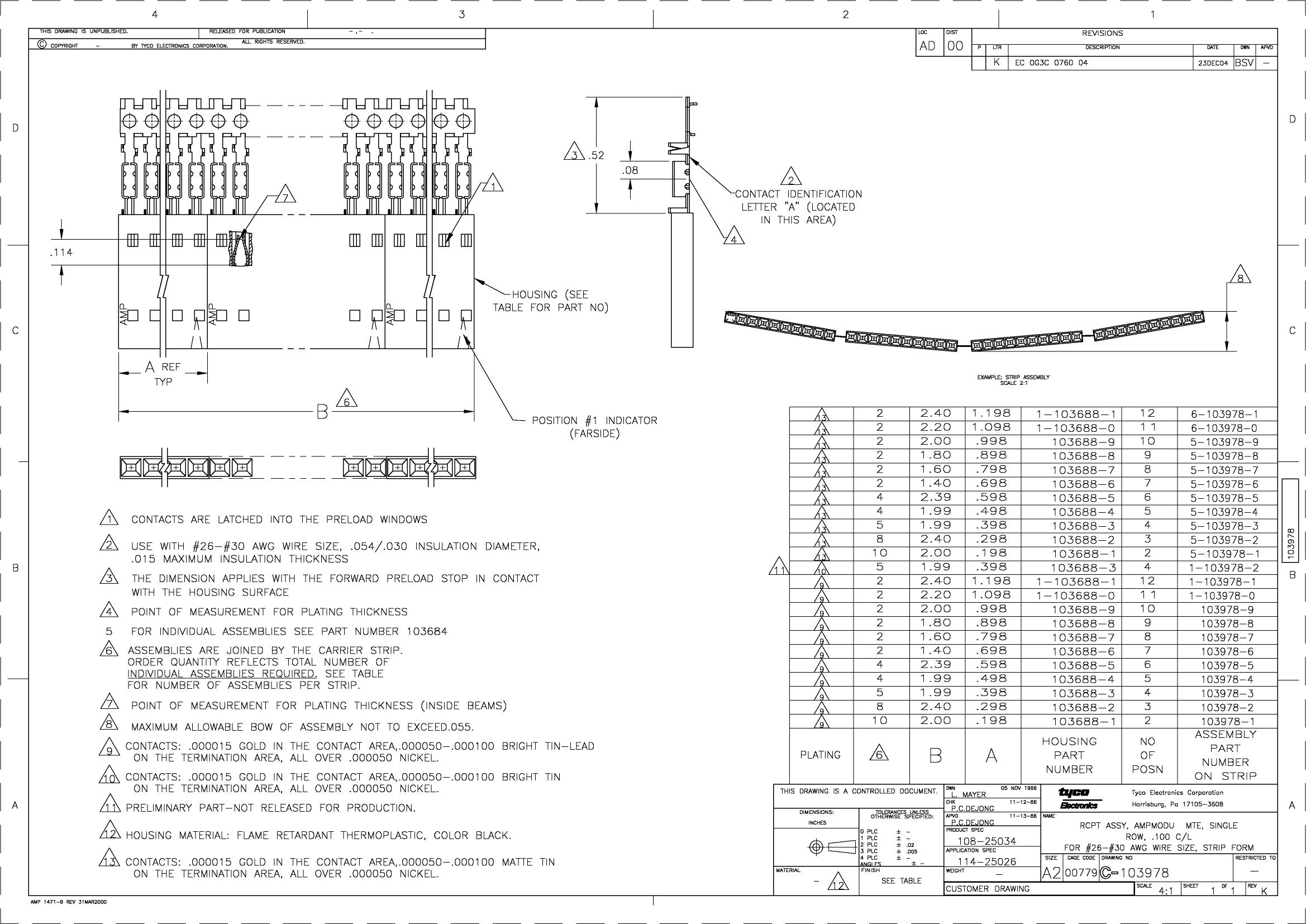

Preview

Download Datasheet

View All

5-103978-8 Related Products

	5-103978-8	5-103978-9	5-103978-5	5-103978-6	6-103978-0	RN732BTTED2083D50	RN732BTTED2083F50	5-103978-7
Description	9 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	10 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	6 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	7 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	11 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	Fixed Resistor, Thin Film, 0.125W, 208000ohm, 150V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT	Fixed Resistor, Thin Film, 0.125W, 208000ohm, 150V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP, ROHS COMPLIANT	8 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compliant	compliant	compliant	compliant
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Other features	AMPMODU	AMPMODU	AMPMODU	AMPMODU	AMPMODU	-	-	AMPMODU
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	-	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15)	GOLD (15)	GOLD (15)	GOLD (15)	GOLD (15)	-	-	GOLD (15)
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	-	-	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	-	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-	PHOSPHOR BRONZE
DIN compliance	NO	NO	NO	NO	NO	-	-	NO
Filter function	NO	NO	NO	NO	NO	-	-	NO
IEC compliance	NO	NO	NO	NO	NO	-	-	NO
MIL compliance	NO	NO	NO	NO	NO	-	-	NO
Manufacturer's serial number	103978	103978	103978	103978	103978	-	-	103978
Mixed contacts	NO	NO	NO	NO	NO	-	-	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	-	-	CABLE
Number of rows loaded	1	1	1	1	1	-	-	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE
Total number of contacts	9	10	6	7	11	-	-	8
Base Number Matches	1	1	1	1	1	-	-	-
