Document 422-1
Chip Inductors – 0402AF Series (1005)
• Higher inductance values than other 0402 inductors
• Ferrite construction for high current handling
• 23 inductance values from 20 nH to 560 nH
Inductance
2
±5% (nH)
20
22
33
36
39
51
56
72
78
100
140
180
200
220
250
270
300
330
360
390
420
470
560
Part
number
1
Impedance typ (Ohms)
900 MHz
1.7 GHz
83
96
142
157
173
218
239
311
344
513
629
832
1110
1050
1230
1320
1550
1850
1920
2350
2270
2680
3620
118
146
207
249
263
330
360
453
522
850
949
1270
1890
1560
1940
1960
2230
2880
2640
2970
2800
3010
3110
SRF typ
3
(MHz)
2600
2500
2300
2300
2200
1930
1900
1650
1600
1400
1220
1150
1000
1150
900
860
860
820
810
760
700
650
600
DCR max
4
(Ohms)
0.050
0.065
0.060
0.075
0.115
0.070
0.095
0.100
0.130
0.160
0.260
0.280
0.440
0.530
0.360
0.550
0.410
0.560
0.575
0.750
0.700
0.730
0.920
Irms
5
(mA)
1600
1300
1400
1300
830
1100
1000
1000
970
900
630
560
400
380
520
360
420
350
360
300
340
310
200
0402AF-200XJL_
0402AF-220XJL_
0402AF-330XJL_
0402AF-360XJL_
0402AF-390XJL_
0402AF-510XJL_
0402AF-560XJL_
0402AF-720XJL_
0402AF-780XJL_
0402AF-101XJL_
0402AF-141XJL_
0402AF-181XJL_
0402AF-201XJL_
0402AF-221XJL_
0402AF-251XJL_
0402AF-271XJL_
0402AF-301XJL_
0402AF-331XJL_
0402AF-361XJL_
0402AF-391XJL_
0402AF-421XJL_
0402AF-471XJL_
0402AF-561XJL_
1. When ordering, please specify
termination
and
packaging
codes:
0402AF-561XJLW
Termination: L
= RoHS compliant gold over nickel over silver-palladi-
um-glass frit.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: W
= 7″ machine-ready reel. EIA-481 punched paper
tape (2000 parts per full reel).
Q
= 7″ machine-ready reel. EIA-481 punched paper
tape (5000 parts per full reel).
U
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter W instead.
2. Inductance measured at 7.9 MHz, 0.1 Vrms, using an Agilent/HP
4286A LCR meter or equivalent with a Coilcraft SMD-F test fixture and
Coilcraft-provided correlation pieces.
3. SRF measured using Agilent/HP 8753D network analyzer and Coilcraft
SMD-D test fixture.
4. DCR measured on Cambridge Technology micro-ohmmeter and a
Coilcraft CCF858 test fixture.
5. Current that causes a 15°C temperature rise from 25°C ambient.
Because of their open construction, these parts will not saturate.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Designer’s Kit C397
contains 20 each of all values
Core material
Ferrite
Terminations
RoHS compliant gold over nickel over silver-palladium-
glass frit. Other terminations available at additional cost.
Weight
0.9 – 1.1 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+100°C with derated current
Storage temperature
Component: –40°C to +100°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+25 to +150 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
2000 or 5000 per 7″ reel. Paper tape: 8 mm wide,
0.68 mm thick, 2 mm pocket spacing
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 422-1
Revised 12/17/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

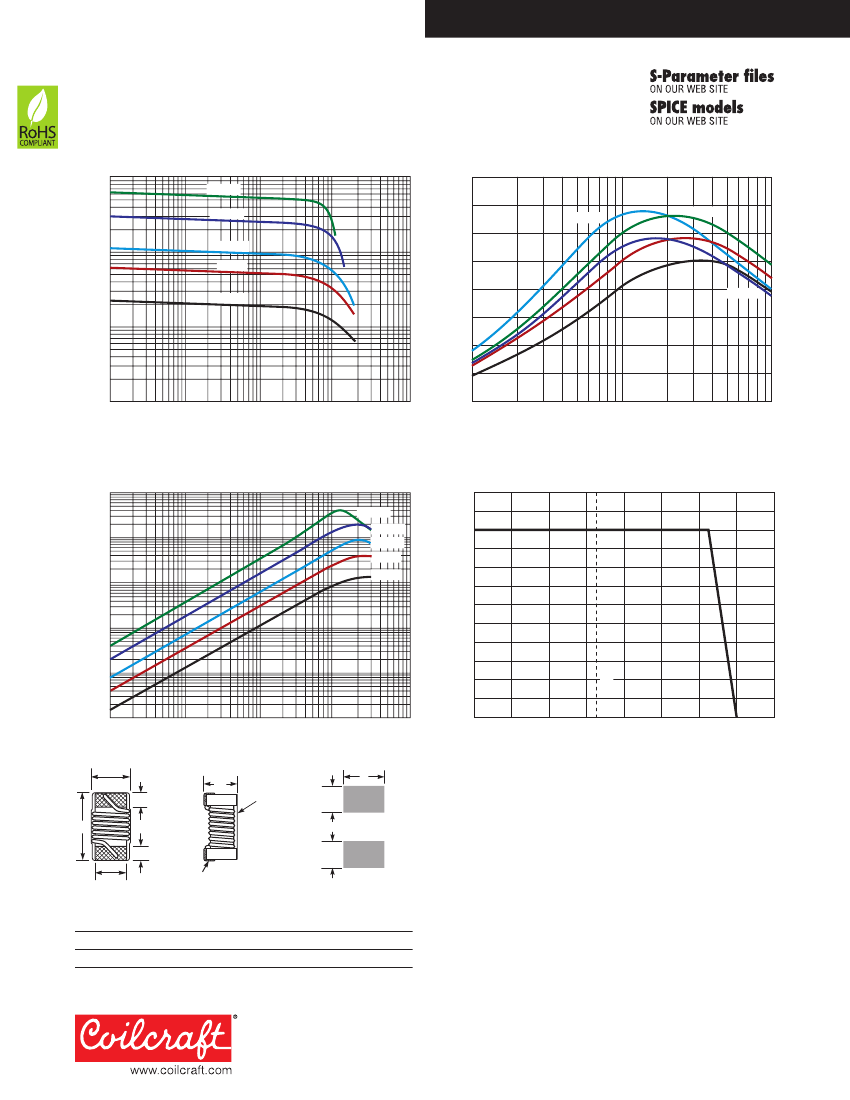

Document 422-2
Chip Inductors – 0402AF Series
Typical L vs Frequency
1000
560 nH
270 nH
Typical Q vs Frequency
16
14
100 nH
560 nH
12
Inductance (nH)
100
100 nH
Q Factor
56 nH
20 nH
10
8
6
4
2
56 nH
20 nH
270 nH
10
1
0.001
0.01
Frequency (GHz)
0.1
1
10
0
1
Frequency (MHz)
10
100
Typical Impedance vs Frequency
10000
560 nH
Irms Derating
120
110
100
270 nH
100 nH
56 nH
20 nH
Impedance (Ohms)
1000
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
100
10
1
0.1
0.001
0.01
Frequency (GHz)
0.1
1
10
-40
-20
0
20
25°C
40
60
80
100
120
Ambient temperature (°C)
H
F
G
B
overall
E
A
E
D
terminal
C
Pick and
place
material
F
Terminal wraparound:
approx 0.007/0,18 both ends
Recommended
Land Pattern
G
0,46
H
0,66 mm
0.018 0.026 inches
A max B max C max
0.044
1,12
0.026
0,66
0,66
D
0,51
E
0,23
F
0.017
0,43
0.026 0.020 0.009
Note:
Height dimension (C) is before optional solder application. For maximum
height dimension including solder, add 0.006 in / 0,152 mm.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 422-2
Revised 12/17/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
