0603R72NJ: DescriptionGeneral Purpose Inductor, 0.072uH, 5%, 1 Element, Ceramic-Core, SMD, 0603, CHIP, 0603, ROHS COMPLIANT; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric View All

0603R72NJ Overview

General Purpose Inductor, 0.072uH, 5%, 1 Element, Ceramic-Core, SMD, 0603, CHIP, 0603, ROHS COMPLIANT

0603R72NJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	API Delevan
package instruction	0603
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	0603
structure	Open Core
core material	CERAMIC
DC Resistance	0.49 Ω
Nominal inductance(L)	0.072 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	0603R
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	1.02 mm
Package length	1.8 mm
Package form	SMT
Package width	1.14 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	34
Maximum rated current	0.4 A
self resonant frequency	1700 MHz
series	0603R
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	150 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

R

0%

±1

H)

(n

CE

AN

*

CT

ER

DU

MB

IN

NU

NG

TI )

RA A

T (m

EN UM

RR IM

CU AX

CE

M

AN )

ST S

SI HM

RE M (O

DC MU

)

XI

Hz

MA

(M

M

MU

NI

MI

F

ST

TE )

SR

Q z

& (MH

CE CY

AN N

CT UE

M

DU EQ

IN FR

MU

NI

MI

F

SERIES

0603R

ct

du

In

DA

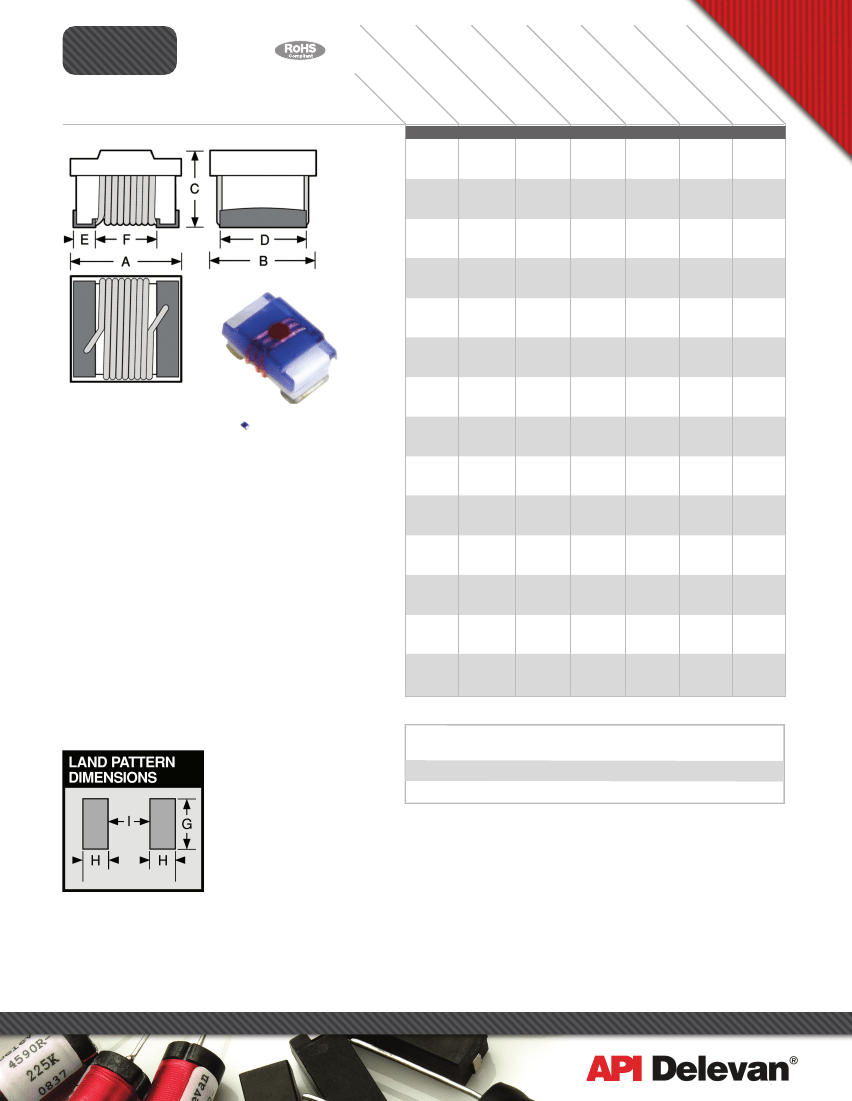

Actual Size (Max.)

SH

Q

Open Construction

Wirewound Surface Mount Inductors

s

or

Physical Parameters

Inches

Millimeters

A

0.071 Max.

1.80 Max.

B

0.045 Max.

1.14 Max.

C

0.040 Max.

1.02 Max.

D

0.030 (Ref. only)

0.76 (Ref. only)

E

0.018 (Ref. only)

0.44 (Ref. only)

F

0.040 (Ref. only)

1.03 (Ref. only)

G

0.040

1.03

H

0.025

0.64

I

0.025

0.64

Operating Temperature Range

–40°C to +125°C

Inductance and Q

tested on HP4291A using HP16193A

test ﬁxture, or equivalent

Packaging

Tape & reel (8mm): 7" reel, 4000 pieces max.

-1N6K

-1N8K

-3N3K

-3N6K

-3N9K

-4N3K

-4N7K

-5N1K

-5N6K

-6N8K

-7N5K

-8N2K

-8N7K

-9N5K

-10NK

-11NK

-12NK

-15NK

-16NK

-18NK

-22NK

-24NK

-27NK

-30NK

-33NK

-36NK

-39NK

-43NK

-47NK

-56NK

-68NK

-72NK

-82NK

-101K

-111K

-121K

-151K

-181K

-221K

-271K

-331K

-391K

1.6

1.8

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.8

7.5

8.2

8.7

9.5

10

11

12

15

16

18

22

24

27

30

33

36

39

43

47

56

68

72

82

100

110

120

150

180

220

270

330

390

SERIES 0603R CERAMIC CORE

16

250

6000

16

250

6000

22

250

6000

22

250

5800

22

250

6000

22

250

5800

25

250

5800

20

250

5800

20

250

5800

27

250

5800

27

250

4800

27

250

4800

27

250

4800

27

250

4800

31

250

4800

31

250

4000

35

250

4000

35

250

4000

35

250

3300

35

250

3100

38

250

3000

38

250

2800

40

250

2800

40

250

2800

40

250

2300

40

250

2300

40

250

2200

38

200

2000

38

200

2000

38

200

1900

37

200

1700

34

150

1700

34

150

1700

34

150

1400

32

150

1350

32

150

1300

32

100

1300

25

100

1200

25

100

1200

25

100

900

25

100

900

25

100

900

0.040

0.045

0.080

0.063

0.080

0.063

0.120

0.160

0.170

0.110

0.130

0.086

0.130

0.170

0.110

0.170

0.190

0.130

0.220

0.150

0.220

0.250

0.280

0.310

0.340

0.490

0.540

0.580

0.610

0.650

0.950

1.400

1.600

2.100

3.800

4.350

700

600

400

300

280

250

200

100

Optional Tolerances: 9.5nH & Lower J = 5%

All Other Values: J = 5% G = 2%

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

1/2009
