AISC-0402-18NK-T datasheet, PDF

Datasheet> All Categories > Passive components> inductor> AISC-0402-18NK-T

AISC-0402-18NK-T: Description1 ELEMENT, 0.018uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402; CategoryPassive components inductor; File Size162KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AISC-0402-18NK-T Overview

1 ELEMENT, 0.018uH, CERAMIC-CORE, GENERAL PURPOSE INDUCTOR, SMD, CHIP, 0402

AISC-0402-18NK-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	0503
Reach Compliance Code	compliant
Is Samacsys	N
uppercase and lowercase codes	0503
structure	Wirewound
core material	Ceramic
DC Resistance	0.23 Ω
Nominal inductance(L)	0.018 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	0.66 mm
Package length	1.19 mm
Package form	SMT
Package width	0.64 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	26
Maximum rated current	0.48 A
self resonant frequency	3100 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	250 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

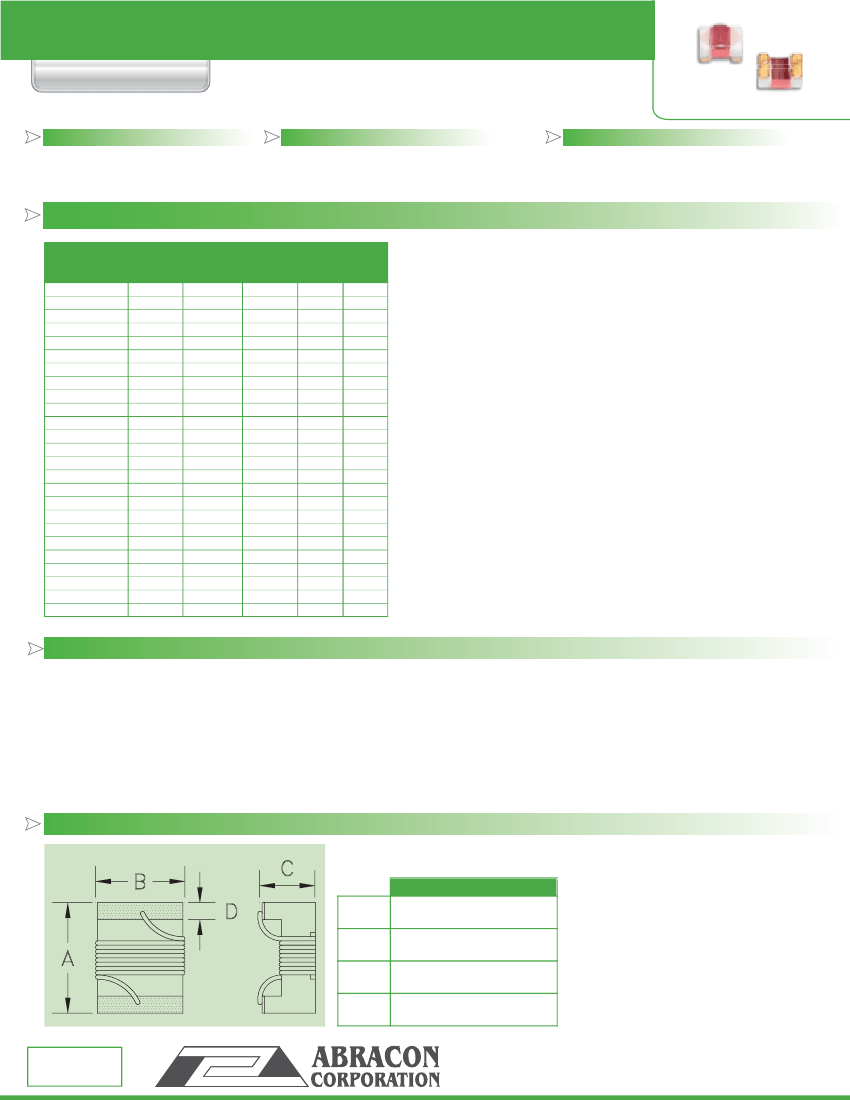

SURFACE MOUNT CERAMIC WIRE-WOUND CHIP INDUCTORS

AISC - 0402

| | | | | | | | | | | | | | |

FEATURES:

• Construction: Ceramic

• High Frequency Design

OPTIONS:

• Tape & Reel is standard

• Tolerance: J=5%, K=10% is standard

APPLICATIONS:

• Wireless Communications

• Networking System

ELECTRICAL SPECIFICATIONS:

Part

Number

AISC-0402

1N0S

1N2S

1N5S

1N8S

2N2S

2N7S

3N3S

3N9S

4N7S

5N6S

6N8J

8N2J

10NJ

12NJ

15NJ

18NJ

22NJ

27NJ

33NJ

39NJ

47NJ

56NJ

68NJ

82NJ

R10J

L (nH)

Q Min

100MHz 800MHz

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

SRF

Min

(MHz)

6000

5500

5200

4800

4600

4000

3500

2800

2500

2200

2000

1800

1500

1400

1200

Max

( )

0.05

0.06

0.07

0.08

0.09

0.10

0.12

0.15

0.17

0.19

0.30

0.35

0.41

0.45

0.60

0.70

0.80

1.20

1.40

1.70

2.10

2.50

4.00

4.50

5.50

Max

(mA)

400

360

340

320

240

200

170

150

140

130

120

110

Number

R0018

R0033

R0039

R0047

R0051

R0056

R0062

R0068

R0075

R0082

R0087

R0095

R010

R011

R012

R015

R018

R022

R024

R027

R033

R039

R047

R051

R056

1.8

3.3

3.9

4.7

5.1

5.6

6.2

6.8

7.5

8.2

8.7

9.5

Tol

K,M

J,K,M

K,M

J,K,M

K,M

J,K,M

G,J,K,M

J,K,M

G,J,K,M

J,K,M

G,J,K,M

Freq

250

200

250

>6000

>5700

>6000

5800

5700

4800

5400

4800

4500

4000

3200

3000

2650

2800

2300

2200

2100

2000

0.045

0.038

0.080

0.200

0.180

0.100

0.110

0.120

0.135

0.150

0.135

0.140

0.170

0.190

0.220

0.250

0.280

0.310

700

600

700

600

TECHNICAL INFORMATION:

• Ordering Code: AISC-XXXX(Size)-XXX(Value)

-(S)(J)(K)-T(Tape and Reel)

• Tolerance: S=±0.3nH, G=±2%, J=±5%, K=±10%

• Check SCD for detail available tolerance

• Letter suffix indicates standard tolerance

• Operating Temperature: -40°C to +125°C

Note:

All specifications subject to change

without notice.

OUTLINE DRAWING:

AISC-0402

0.040±0.006

(1.00±0.15)

0.020±0.006

(0.50±0.15)

0.020±0.006

(0.50±0.015)

0.010±0.004

(0.25±0.10)

Dimensions: Inch

(mm)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 09.06.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
