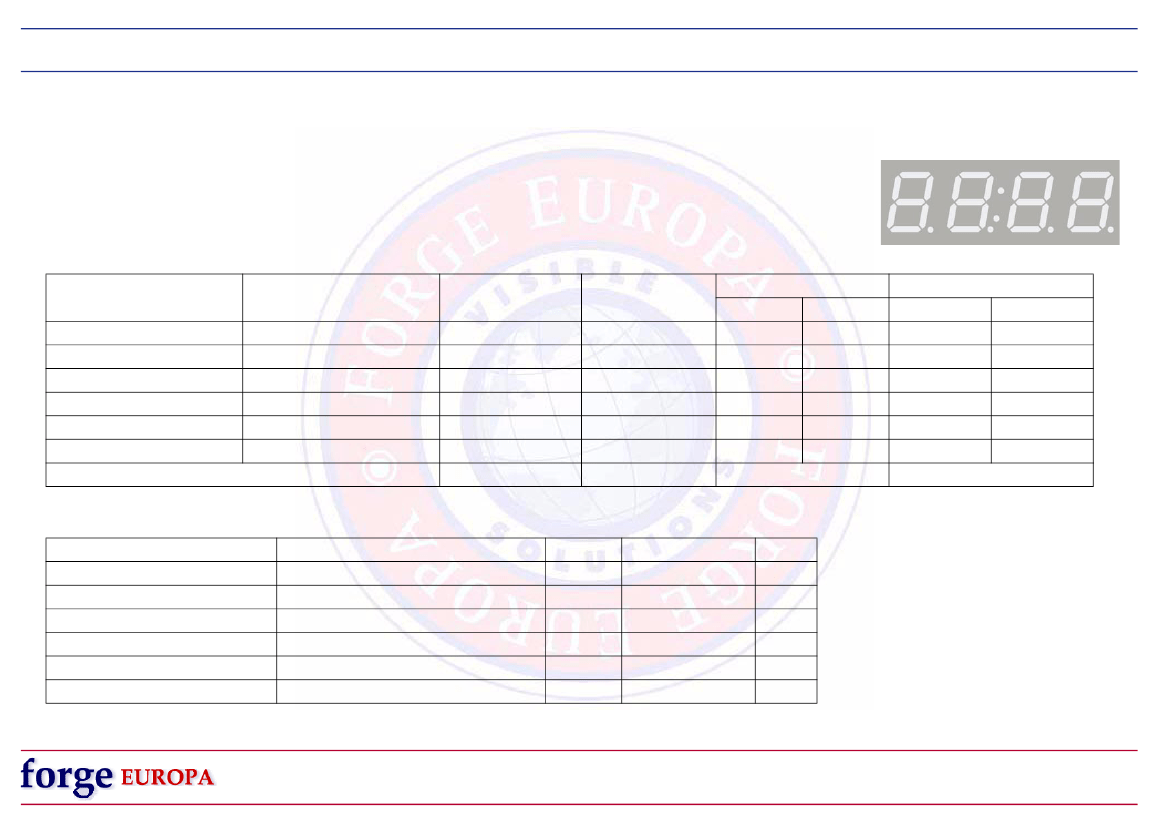

FN4-039XX0CGW
Range
Features:
•
•
•
•
•
High segment intensity
Wide viewing angle
Range of colours
Grey face colour
White segment colour
•
•
•
•
•
0.39" ( 9.9 mm ) Multiplex PO Clock 7 Segment Display
Available options:
Alternative face and segment colour
Alternative font
Cropped terminal pins
Alternative emitting colour
Low current version
Font design
Product not shown
actual size
Electro / Optical Characteristics - I
F
= 20 mA
Part Number
Common Cathode
FN4-0395L0CGW
FN4-039530CGW
FN4-0395Y0530CGW
FN4-039520CGW
FN4-0395B050CGW
FN4-0395B010CGW
Part Number
Common Anode
FN4-0396L0CGW
FN4-039630CGW
FN4-0396Y0530CGW
FN4-039620CGW
FN4-0396B050CGW
FN4-0396B010CGW
Units
(
* HE Blue - I
F
= 10 mA
)
Emitting Colour
GaAlAs Red
HE Red
Yellow
Green
* HE Blue
Blue
Wavelength
Peak
λ
P
660
640
591
568
465
428
nm
T
a
= 25° C
°
Forward Voltage V
F
typical
1.85
2.05
2.05
2.10
3.70
3.80
V
max
2.00
2.50
2.40
2.50
4.00
4.50
Luminous Intensity I
V
min
-
-
-
-
-
-
typical
15
5
30
9
6
4
mcd / seg. (digit average)
Maximum Ratings
Characteristic
Pulse Forward Current
DC Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
T
a
= 25° C
(
Derate above 25° C
)
°
°
Condition
0.1 duty cycle @ 1KHz
I
R
= 10
µA
Symbol
Rating
100 (35)
25 (15)
5
- 25 to + 80
- 30 to + 85
260
Units
mA
mA
V
°
C
°
C
°
C
( HE Blue )
( HE Blue )
I
FP
I
F
V
R
T
opr
T
stg
Note
Industry standard procedures
regarding static must be observed
when handling product produced
with blue die material.
Lead soldering temperature
1.6 mm from body - max 3 seconds
© Forge Europa Limited
Princes Street
Cumbria LA12 7NQ
The Old Railway
Ulverston
England
Tel +44 (0) 1229 580000
Fax +44 (0) 1229 586890
Websites www.forge-europa.co.uk
www.whiteleds.co.uk
E-Mail
info@forge-europa.co.uk
Data Sheet FN4-039XX0CGW
Issue 02 23-10-02 Sheet 1 of 2
FN4-039XX0CGW
Range

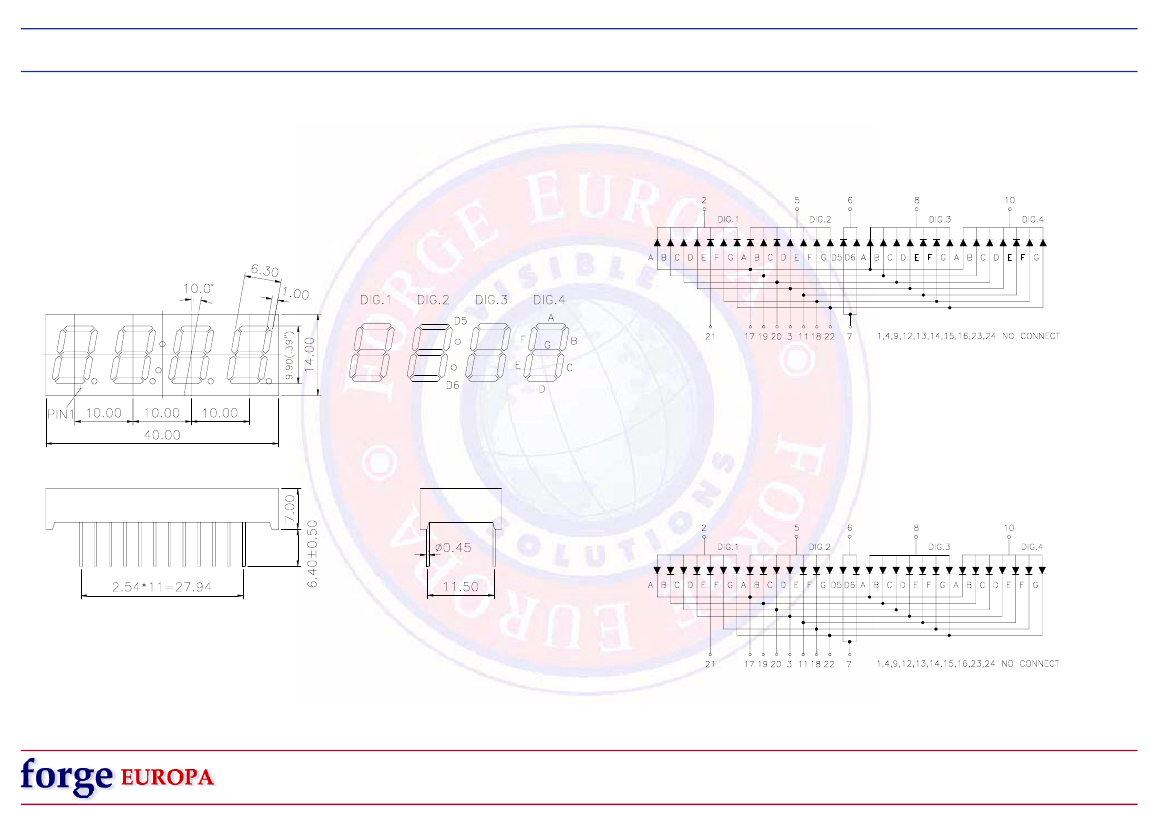

Package Outline
0.39" ( 9.9 mm ) Clock 7 Segment Display
Common Cathode
Common Anode
Tolerance ± 0.25 mm unless stated
© Forge Europa Limited
Princes Street
Cumbria LA12 7NQ
The Old Railway
Ulverston
England
Tel +44 (0) 1229 580000
Fax +44 (0) 1229 586890
Websites www.forge-europa.co.uk
www.whiteleds.co.uk
E-Mail
info@forge-europa.co.uk
Data Sheet FN4-039XX0CGW
Issue 02 23-10-02 Sheet 2 of 2
