0906-5-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 0906-5-5

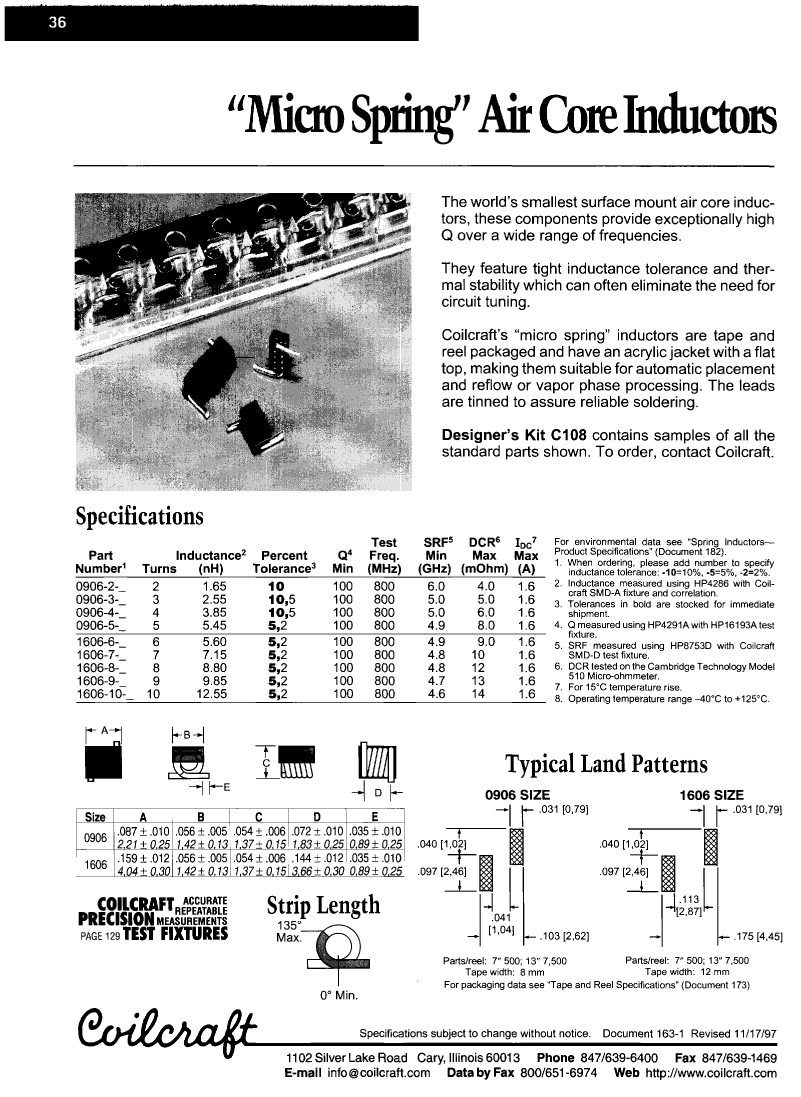

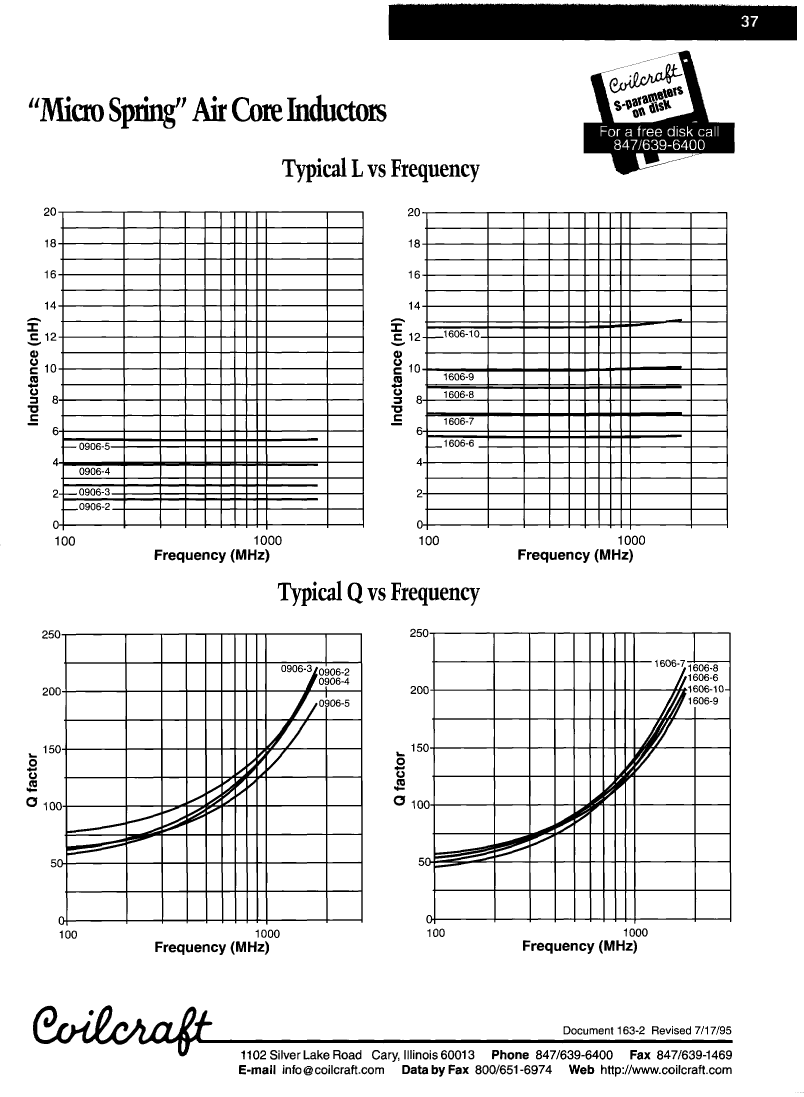

0906-5-5: DescriptionGeneral Purpose Inductor, 0.0055uH, 5%, 1 Element, Air-Core, SMD; CategoryPassive components inductor; File Size273KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric Compare View All

0906-5-5 Overview

General Purpose Inductor, 0.0055uH, 5%, 1 Element, Air-Core, SMD

0906-5-5 Parametric

Parameter Name	Attribute value
Maker	COILCRAFT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
core material	AIR
DC Resistance	0.008 Ω
Nominal inductance(L)	0.0055 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	100
Maximum rated current	1.6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal shape	GULL WING
Test frequency	800 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

0906-5-5 Related Products

	0906-5-5	1606-9-2	1606-10-2	0906-3-5	0906-4-5	1606-6-2	1606-7-2	1606-7-5
Description	General Purpose Inductor, 0.0055uH, 5%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.0099uH, 2%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.0126uH, 2%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.0026uH, 5%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.0039uH, 5%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.0056uH, 2%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.0072uH, 2%, 1 Element, Air-Core, SMD	General Purpose Inductor, 0.0072uH, 5%, 1 Element, Air-Core, SMD
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
core material	AIR	AIR	AIR	AIR	AIR	AIR	AIR	AIR
DC Resistance	0.008 Ω	0.013 Ω	0.014 Ω	0.005 Ω	0.006 Ω	0.009 Ω	0.01 Ω	0.01 Ω
Nominal inductance(L)	0.0055 µH	0.0099 µH	0.0126 µH	0.0026 µH	0.0039 µH	0.0056 µH	0.0072 µH	0.0072 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Minimum quality factor (at nominal inductance)	100	100	100	100	100	100	100	100
Maximum rated current	1.6 A	1.6 A	1.6 A	1.6 A	1.6 A	1.6 A	1.6 A	1.6 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal shape	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Test frequency	800 MHz	800 MHz	800 MHz	800 MHz	800 MHz	800 MHz	800 MHz	800 MHz
Tolerance	5%	2%	2%	5%	5%	2%	2%	5%
Maker	COILCRAFT	-	-	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT
JESD-609 code	-	e3	e3	-	-	e3	e3	e3
Terminal surface	-	TIN	TIN	-	-	TIN	TIN	TIN
