09664136601: DescriptionD Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M3, Plug,; CategoryThe connector The connector; File Size60KB，2 Pages; ManufacturerHARTING; Environmental Compliance

Download Datasheet Parametric View All

09664136601 Overview

D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M3, Plug,

09664136601 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	HARTING
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARDS: DIN 41652, IEC 60807
body width	0.492 inch
subject depth	0.583 inch
body length	2.732 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	YES
maximum insertion force	3.336 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
MIL compliance	NO
Manufacturer's serial number	0966
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M3
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	6.5 A
Guideline	UL
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.114 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0
Evacuation force-minimum value	3.336 N
Base Number Matches	1

Preview

Download Datasheet

View All

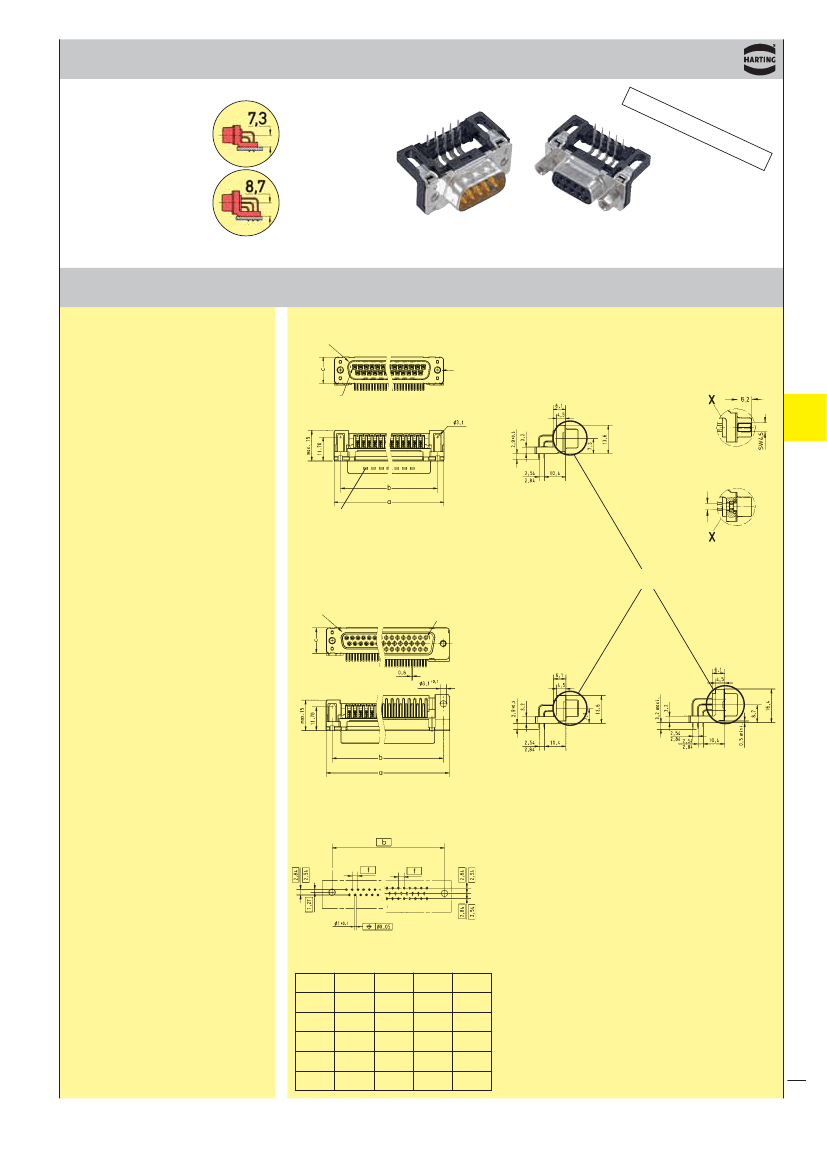

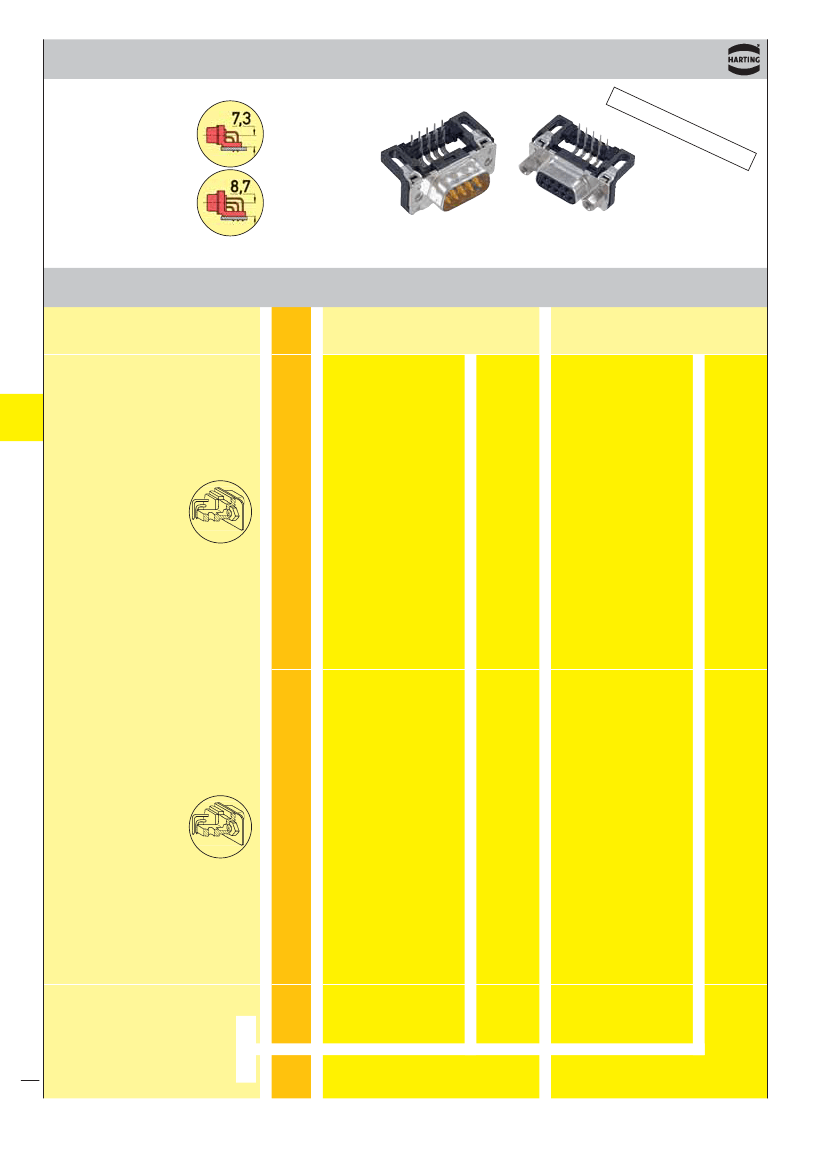

D-Sub

DIN 41 652 · CECC 75 301-802 · IEC 60 807

Mounting height

Number of contacts

Sta

9--37

50

Stamped solder pins, angled without grounding board locks

Identification

No. of

contacts

Part No.

nda

rd V

ers

ion

s

Performance levels

Explanations see page 05.04

Other performance levels on request

þ

Performance level

3

2

Male connector

metal shell with dimples

D-Sub

2.84 mm pitch

9

15

25

37

09 65 123 780

09 65 223 780

09 65 323 780

09 65 423 780

.

2.84 mm pitch

09 65 123 680

09 65 223 680

09 65 323 680

09 65 423 680

.

2.54 mm pitch

9

15

25

37

09 65 122 780

09 65 222 780

09 65 322 780

09 65 422 780

.

2.54 mm pitch

09 65 122 680

09 65 222 680

09 65 322 680

09 65 422 680

.

Female connector

metal shell

2.84 mm pitch

9

15

25

37

50

09 66 113 760

09 66 213 760

09 66 313 760

09 66 413 760

09 66 513 760

.

1)

2.84 mm pitch

09 66 113 660

09 66 213 660

09 66 313 660

09 66 413 660

09 66 513 660

.

1)

2.54 mm pitch

9

15

25

37

50

09 66 112 760

09 66 212 760

09 66 312 760

09 66 412 760

09 66 512 760

.

2.54 mm pitch

09 66 112 660

09 66 212 660

09 66 312 660

09 66 412 660

09 66 512 660

.

1)

05

16

1)

Please insert digit for flange thread or

fitted female screw locks

Ø 3.1 mm hole

þ

1)

0

1)

M3

þ

1

4-40 UNC

þ

2

fitted screw locks 4-40 UNC

þ

3

Not normally kept in stock
