0-0349569-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0-0349569-1

0-0349569-1: Description50/125um, MULTI MODE, SIMPLEX ST CONNECTOR; CategoryThe connector The connector; File Size25KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

0-0349569-1 Overview

50/125um, MULTI MODE, SIMPLEX ST CONNECTOR

0-0349569-1 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Connection Type	SIMPLEX
Connector type	FIBER OPTIC ST CONNECTOR
Coupling type	BAYONET
DIN compliance	NO
Fiber size	50/125um
IEC compliance	NO
Insertion loss	0.3 dB
MIL compliance	NO
model	MULTI
Options	WITH CABLE ASSEMBLY
Base Number Matches	1

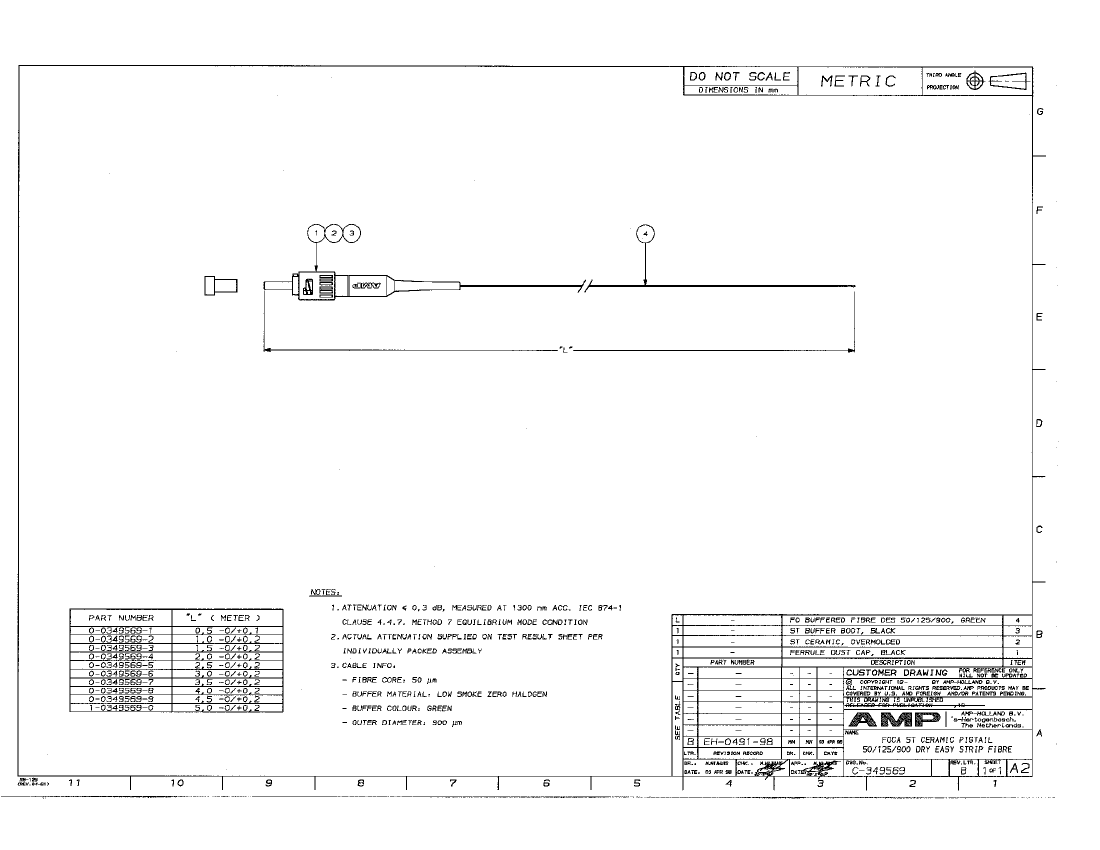

Preview
