09032425804 datasheet, PDF - EEWORLD Datasheet

09032425804: DescriptionBoard Euro Connector, 46 Contact(s), 3 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size93KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

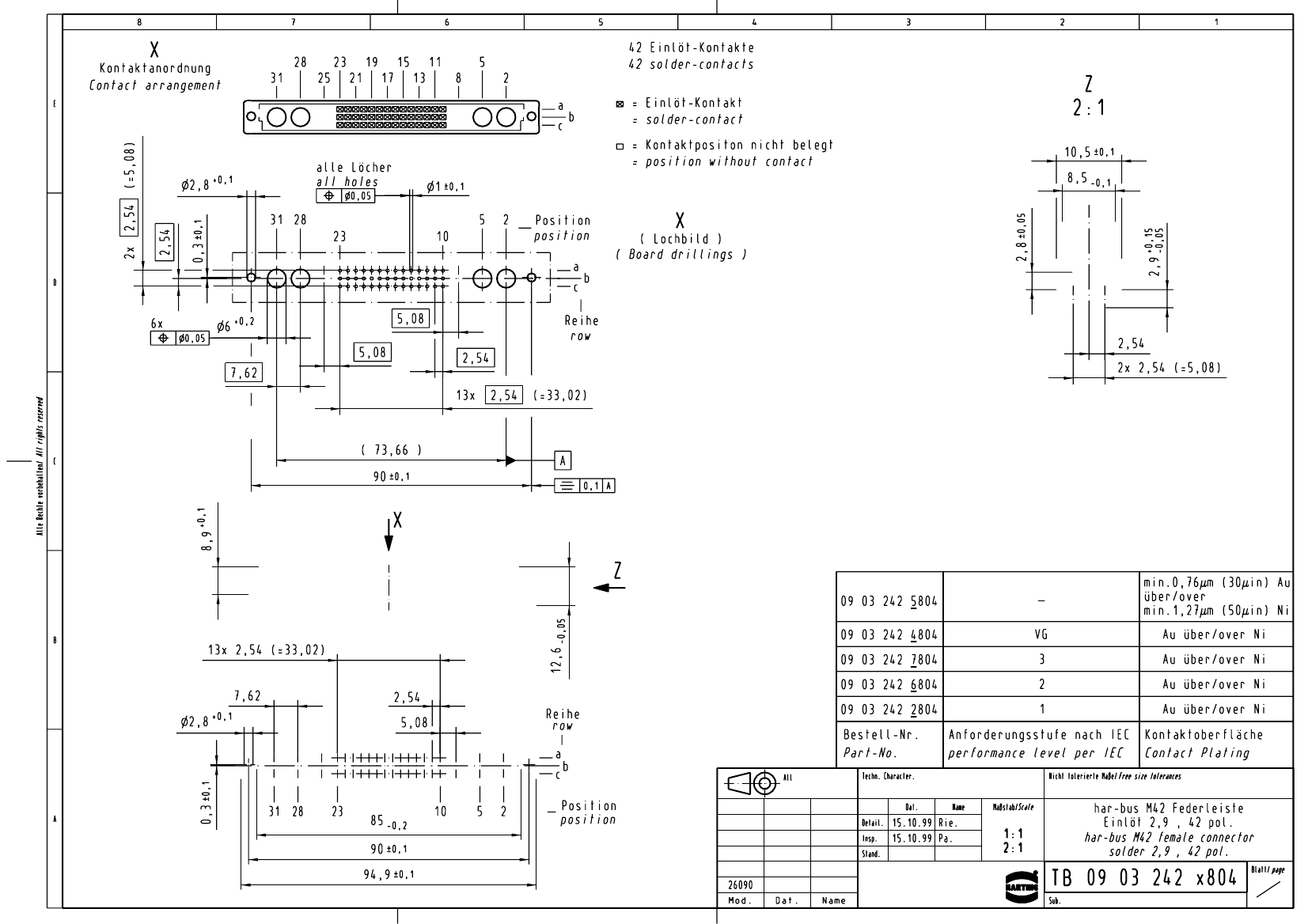

09032425804 Overview

Board Euro Connector, 46 Contact(s), 3 Row(s), Female, Straight, Solder Terminal

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	unknown
Is Samacsys	N
Other features	TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	0903
Mixed contacts	YES
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	46
Base Number Matches	1

	09032425804	09032422804	09032424804	SM11T2-06-10M-10H1LU
Description	Board Euro Connector, 46 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 46 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Board Euro Connector, 46 Contact(s), 3 Row(s), Female, Straight, Solder Terminal	Parallel - Fundamental Quartz Crystal, 10MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 2 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM	TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM	TERMINAL PITCH FOR POWER/COAXIAL CONTACTS: 7.62 MM	AT CUT CRYSTAL; TAPE AND REEL
Manufacturer's serial number	0903	0903	0903	SM11T2
Maker	HARTING	HARTING	HARTING	-
Is Samacsys	N	N	N	-
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	-
Contact point gender	FEMALE	FEMALE	FEMALE	-
DIN compliance	YES	YES	YES	-
Filter function	NO	NO	NO	-
IEC compliance	NO	YES	YES	-
MIL compliance	NO	NO	NO	-
Mixed contacts	YES	YES	YES	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	BOARD	-
Number of rows loaded	3	3	3	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-
Termination type	SOLDER	SOLDER	SOLDER	-
Total number of contacts	46	46	46	-
Base Number Matches	1	1	1	-
