0-179447-1 datasheet, PDF - EEWORLD Datasheet

0-179447-1: Description6 CONTACT(S), MALE, POWER CONNECTOR, SOLDER; CategoryThe connector The connector; File Size67KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

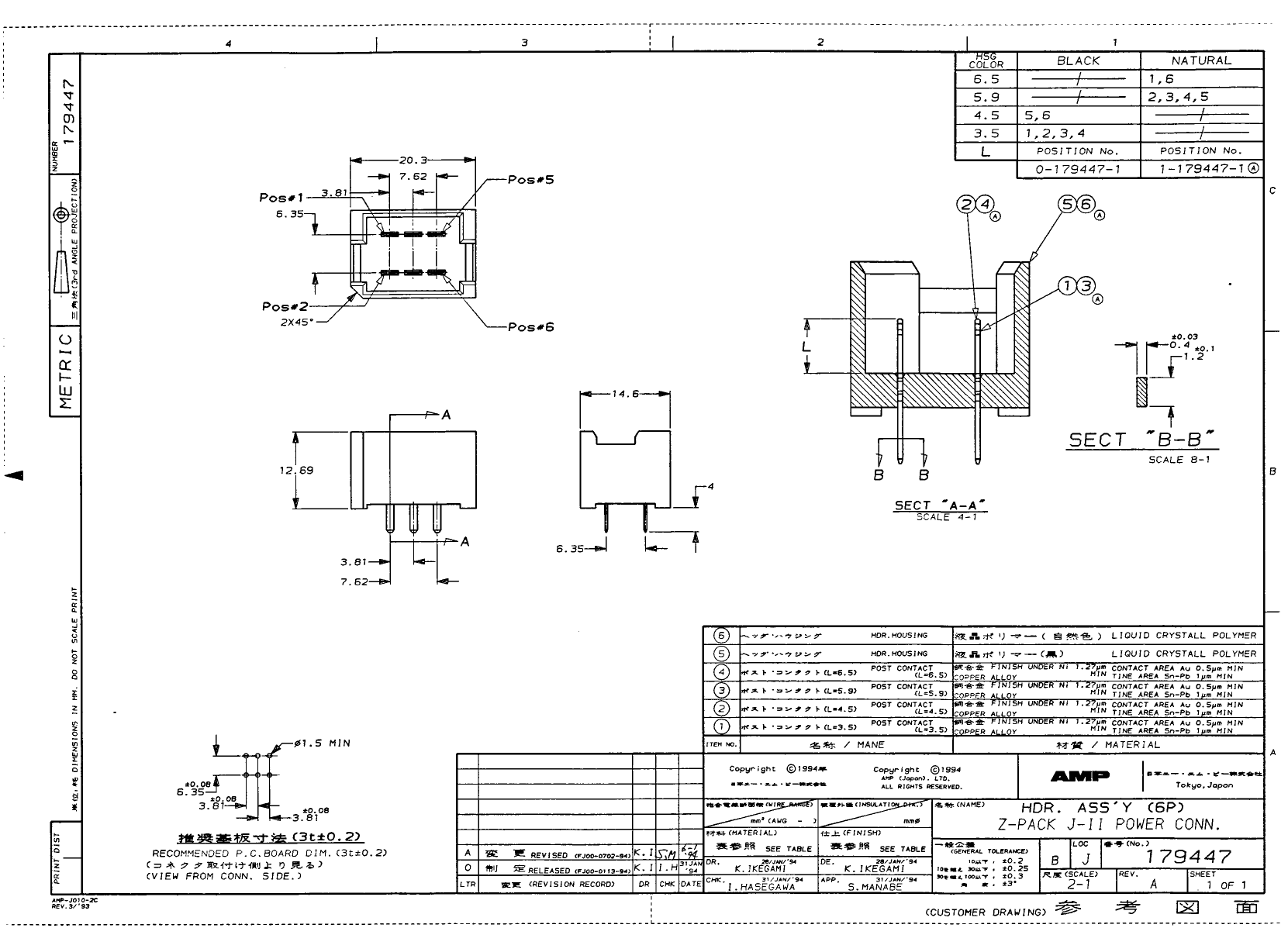

0-179447-1 Overview

6 CONTACT(S), MALE, POWER CONNECTOR, SOLDER

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Is Samacsys	N
body width	0.575 inch
subject depth	0.5 inch
body length	0.799 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	BLADE PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	179447
Plug contact pitch	0.15 inch
Match contact row spacing	0.25 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.35 mm
Plating thickness	20u inch
polarization key	ENDS
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	LIQUID CRYSTAL POLYMER
Terminal length	0.157 inch
Terminal pitch	3.81 mm
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1
