09661565617 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 09661565617

09661565617: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal; CategoryThe connector The connector; File Size367KB，14 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

09661565617 Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal

09661565617 Parametric

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STANDARDS: MIL-C-24308; DIN 41652
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	0966
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	METAL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
Base Number Matches	1

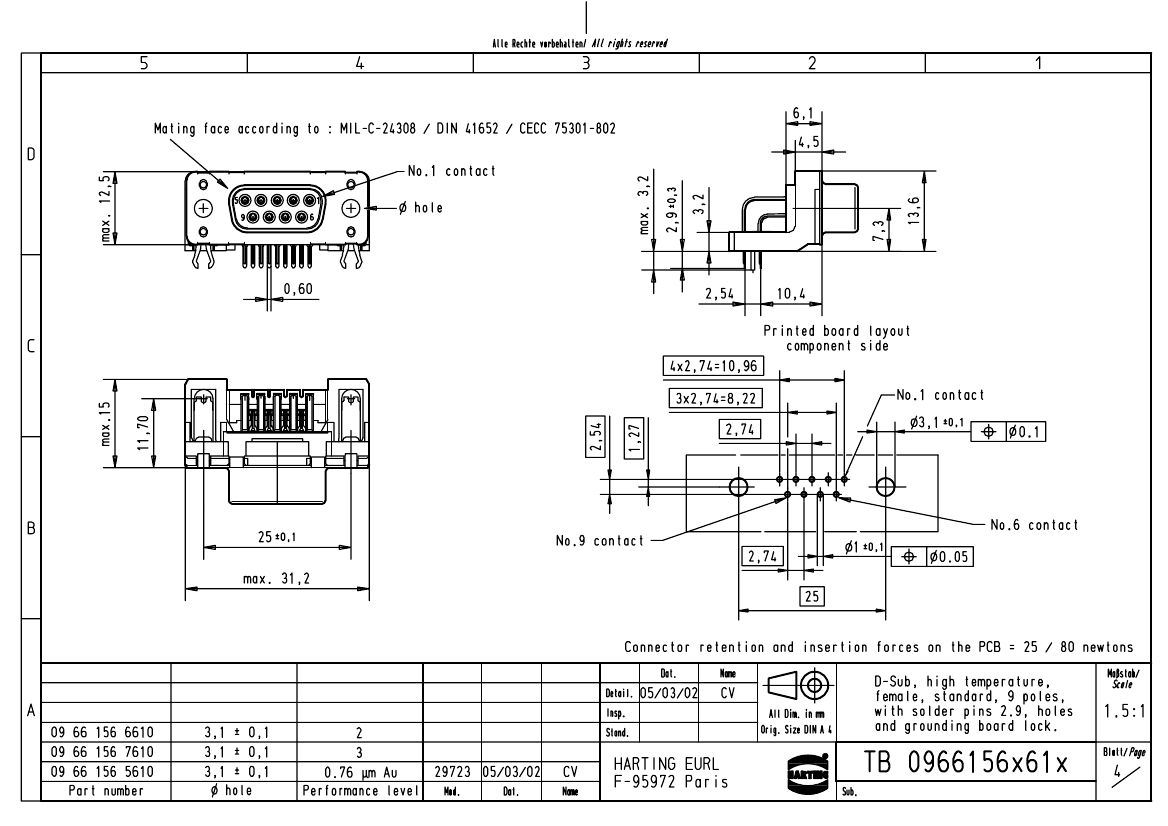

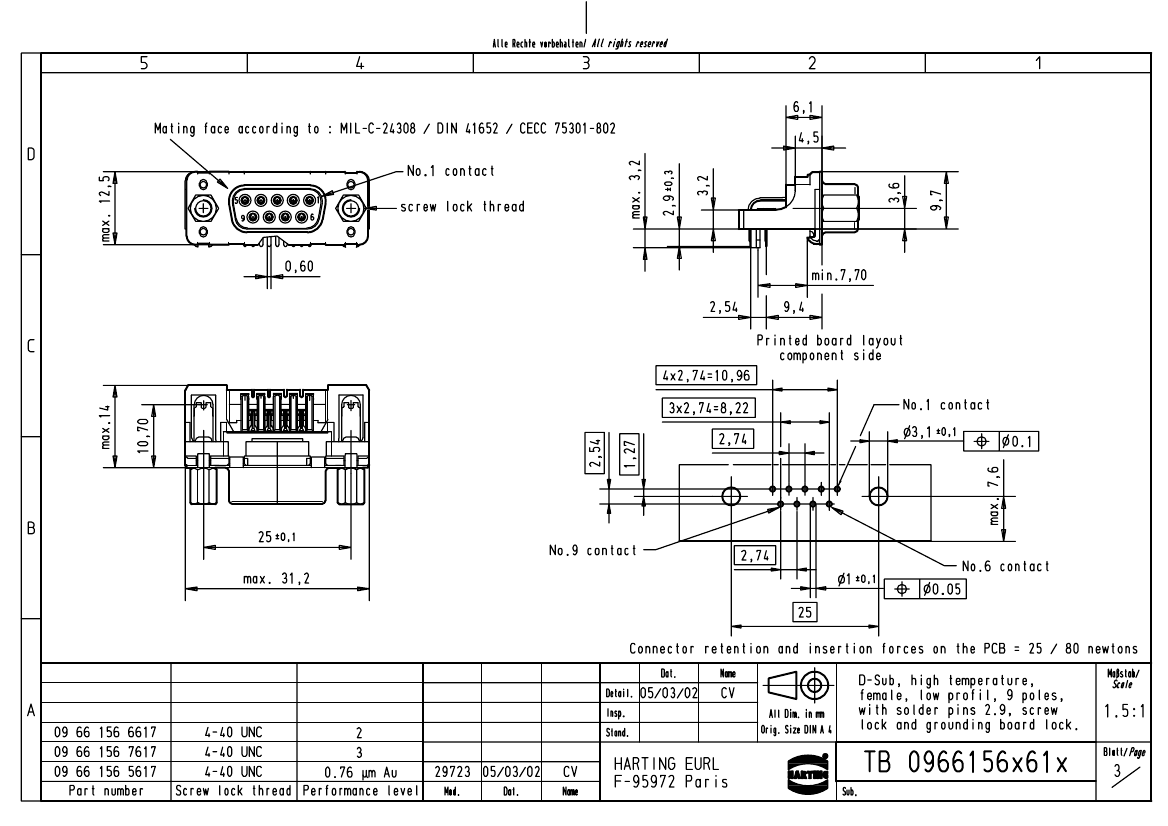

Preview

Download Datasheet

View All

09661565617 Related Products

	09661565617	09661565614	09661565615	09661565616	SM25-09-27.0M-20G1CG	SM25-09-27.0M-20G1LK	09661566614	09661567614
Description	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	Parallel - Fundamental Quartz Crystal, 27MHz Nom, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 27MHz Nom, SMD, 2 PIN	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	compliant	unknown	unknown
Other features	STANDARDS: MIL-C-24308; DIN 41652	STANDARDS: MIL-C-24308; DIN 41652	STANDARDS: MIL-C-24308; DIN 41652	STANDARDS: MIL-C-24308; DIN 41652	AT CUT; TR, 7/10/13 INCH	AT CUT; TR, 7/10/13 INCH	STANDARDS: MIL-C-24308; DIN 41652	STANDARDS: MIL-C-24308; DIN 41652
Maker	HARTING	HARTING	HARTING	HARTING	-	-	HARTING	HARTING
Is Samacsys	N	N	N	N	-	-	N	N
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	-	-	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	-	-	YES	YES
empty shell	NO	NO	NO	NO	-	-	NO	NO
Filter function	NO	NO	NO	NO	-	-	NO	NO
IEC compliance	NO	NO	NO	NO	-	-	NO	NO
MIL compliance	YES	YES	YES	YES	-	-	YES	YES
Manufacturer's serial number	0966	0966	0966	0966	-	-	0966	0966
Mixed contacts	NO	NO	NO	NO	-	-	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	-	-	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	-	-	TIN	TIN
Shell material	METAL	METAL	METAL	METAL	-	-	METAL	METAL
Housing size	1/E	1/E	1/E	1/E	-	-	1/E	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	-	-	SOLDER	SOLDER
Total number of contacts	9	9	9	9	-	-	9	9
Base Number Matches	1	1	1	1	-	-	1	1
