09021326821 datasheet, PDF - EEWORLD Datasheet

09021326821: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Plug; CategoryThe connector The connector; File Size371KB，4 Pages; ManufacturerHARTING

Download Datasheet Parametric View All

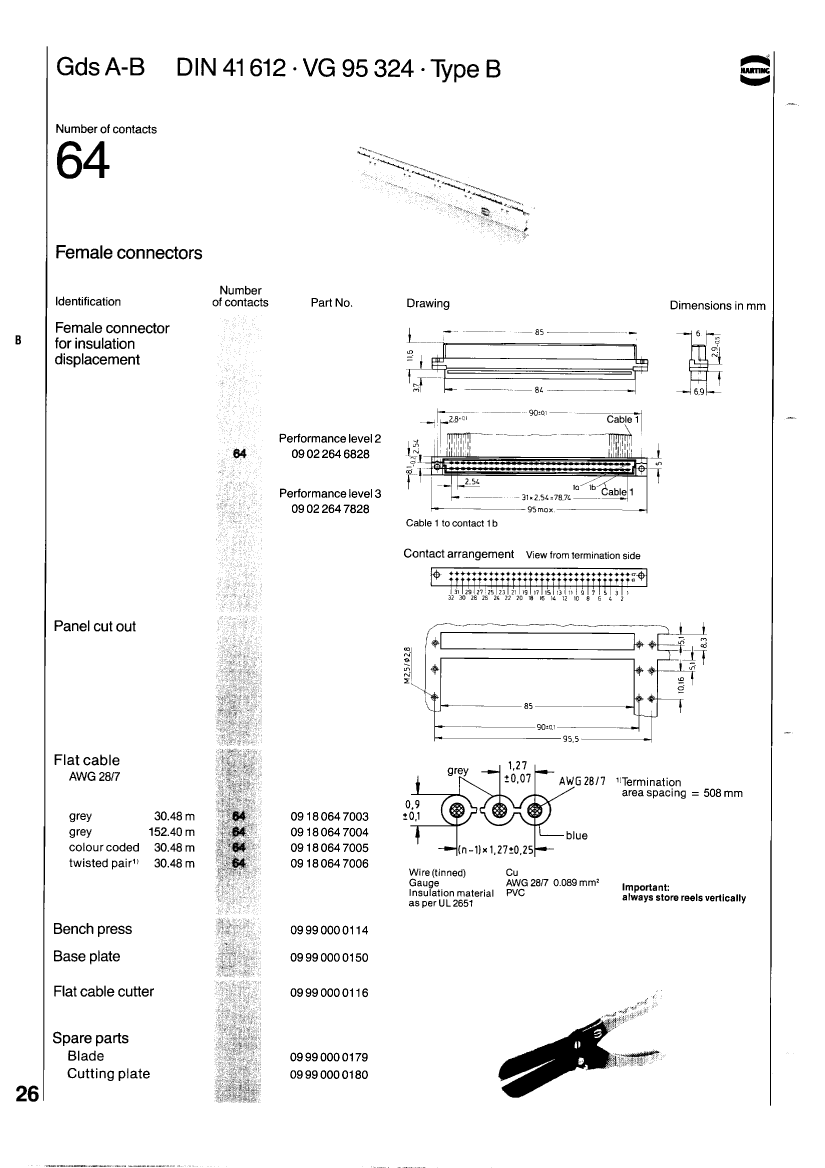

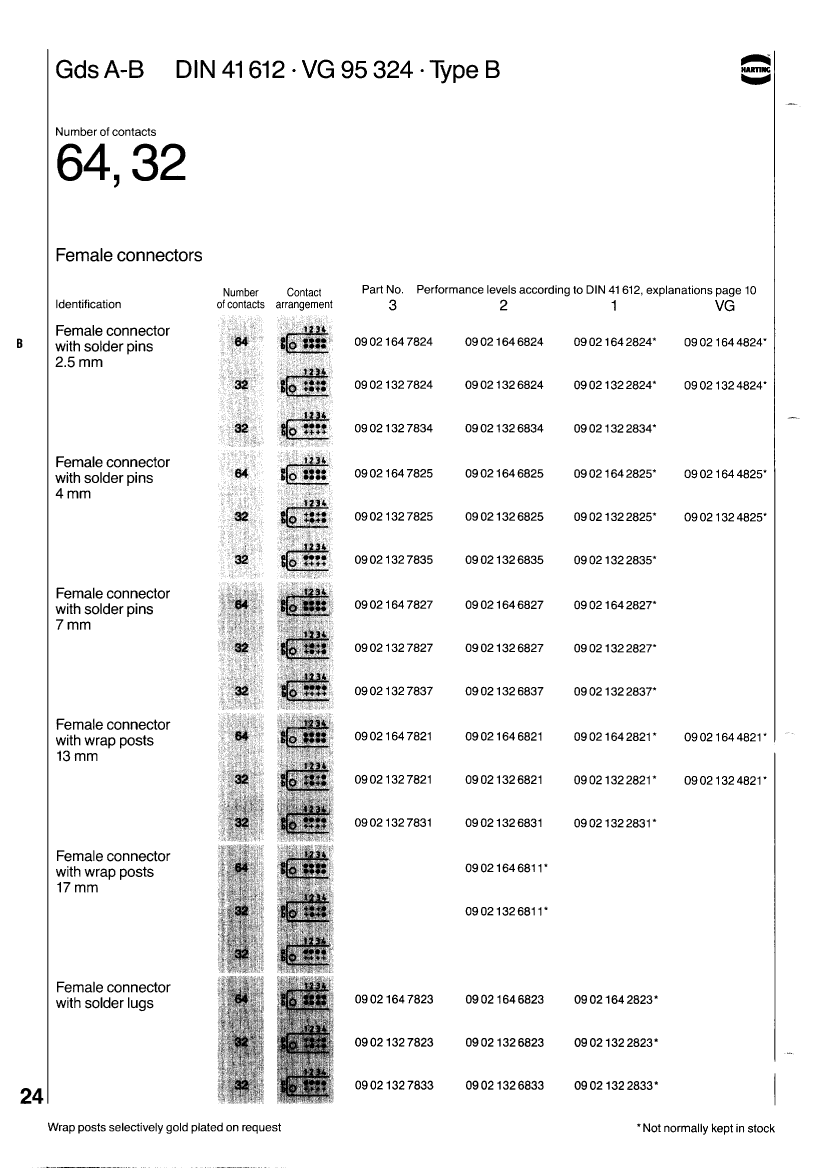

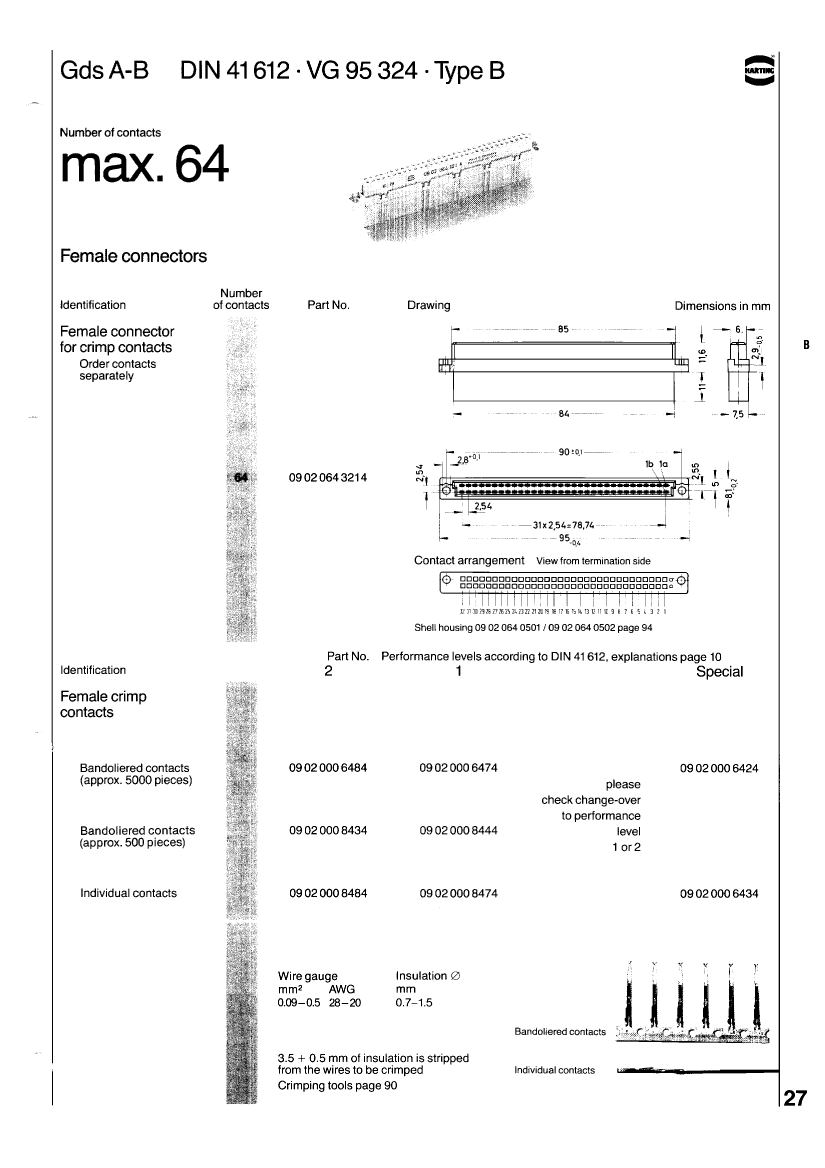

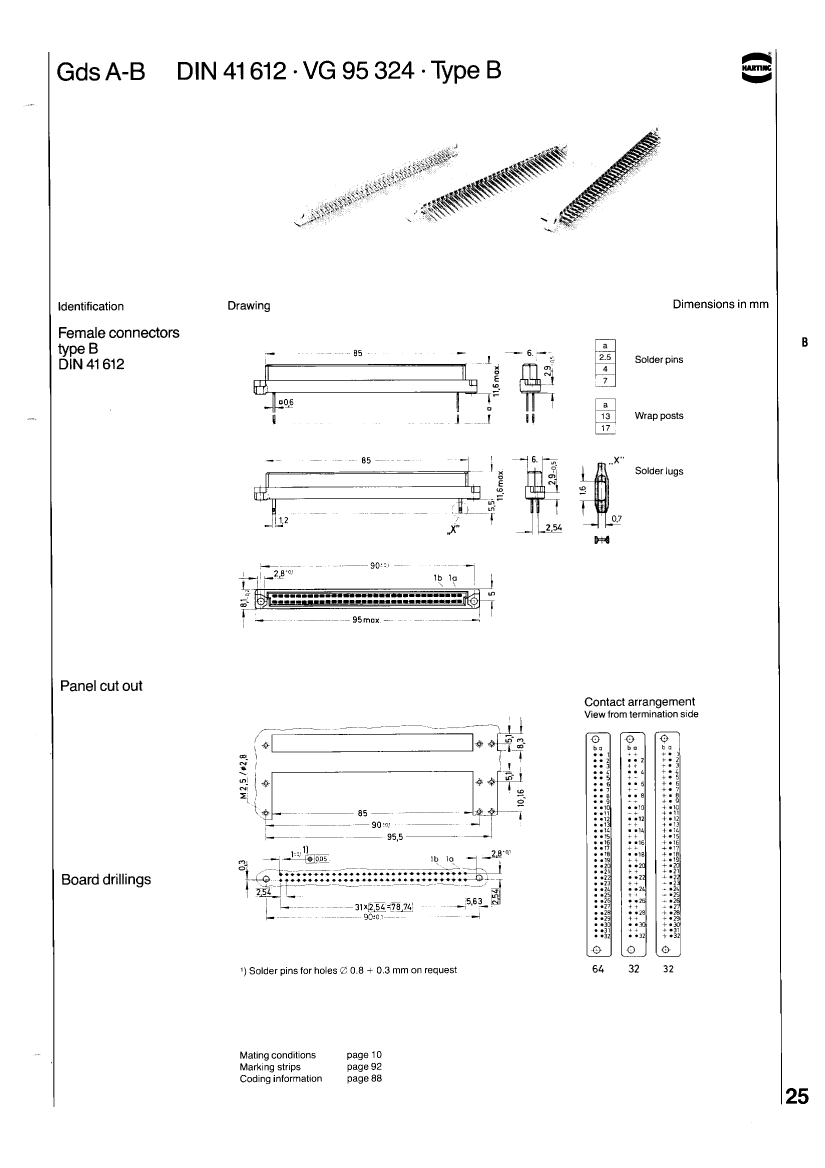

09021326821 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Plug

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: DIN 41612
body width	0.319 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	GDSA-B
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Loaded row name	A,B
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	5.08 mm
Termination type	WIRE WRAP
Total number of contacts	32
Evacuation force-minimum value	.9452 N
Base Number Matches	1
