FEATURES AND SPECIFICATIONS
Features and Benefits
s
50
µ
" Gold meets FCC 68 requirements
s
Keying options available
s
Top-covered leads meet British Telecom 4000V test
s
Contacts are duplex plated after stamping, eliminating
bare edges in the mating area
s
Every jack must pass on-line functional tests, including
hi-pot and continuity
Reference Information
Product Specification: PS-41314
Packaging: Film pack or tray
UL File No.: E107635
CSA File No.: LR19980
Mates With: WE Co. and FCC 68 plugs
Designed In: Inches
Electrical
Voltage: 125V
Current: 1.5A
Contact Resistance: 10m
Ω
max.
Dielectric Withstanding Voltage: 1000V AC
Insulation Resistance: 500 M
Ω
min.
Mechanical
Durability: 500 cycles min.
Physical
Housing: Black glass-filled polyester, UL 94V-0
Contact: Phosphor Bronze
Plating: 1.27
µ
m (50
µ
") min. Gold in contact area and
1.27
µ
m (50
µ
") min. Tin/Lead on solder tails both over
Nickel overall
Operating Temperature: -40 to +80˚C
Modular Jack
41687/42118
Right Angle, Standard Profile
Flangeless

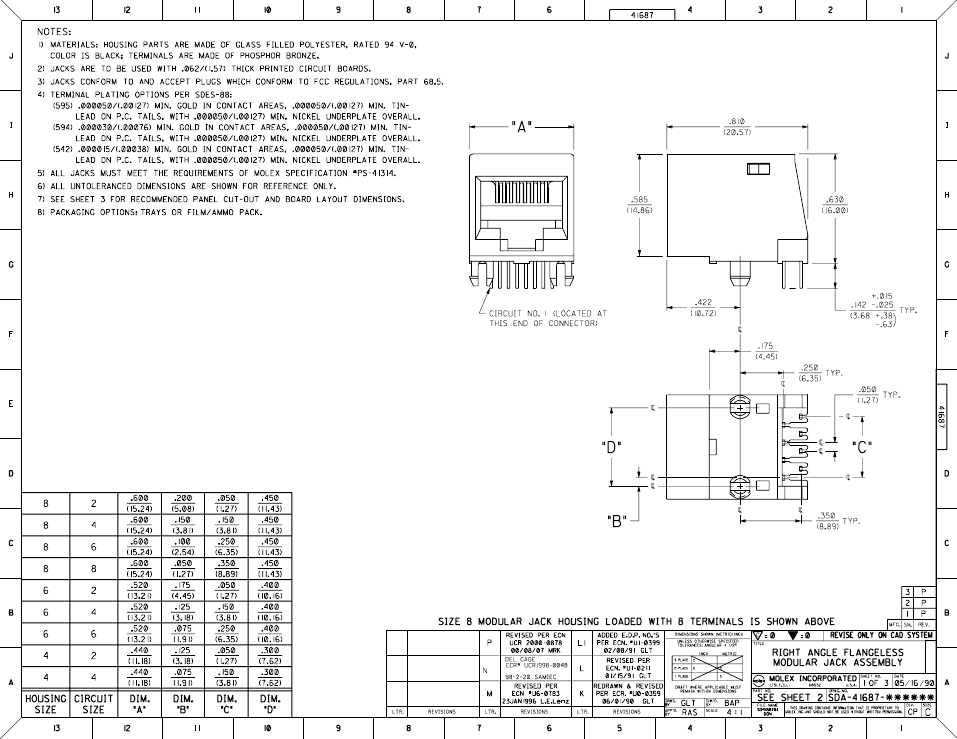

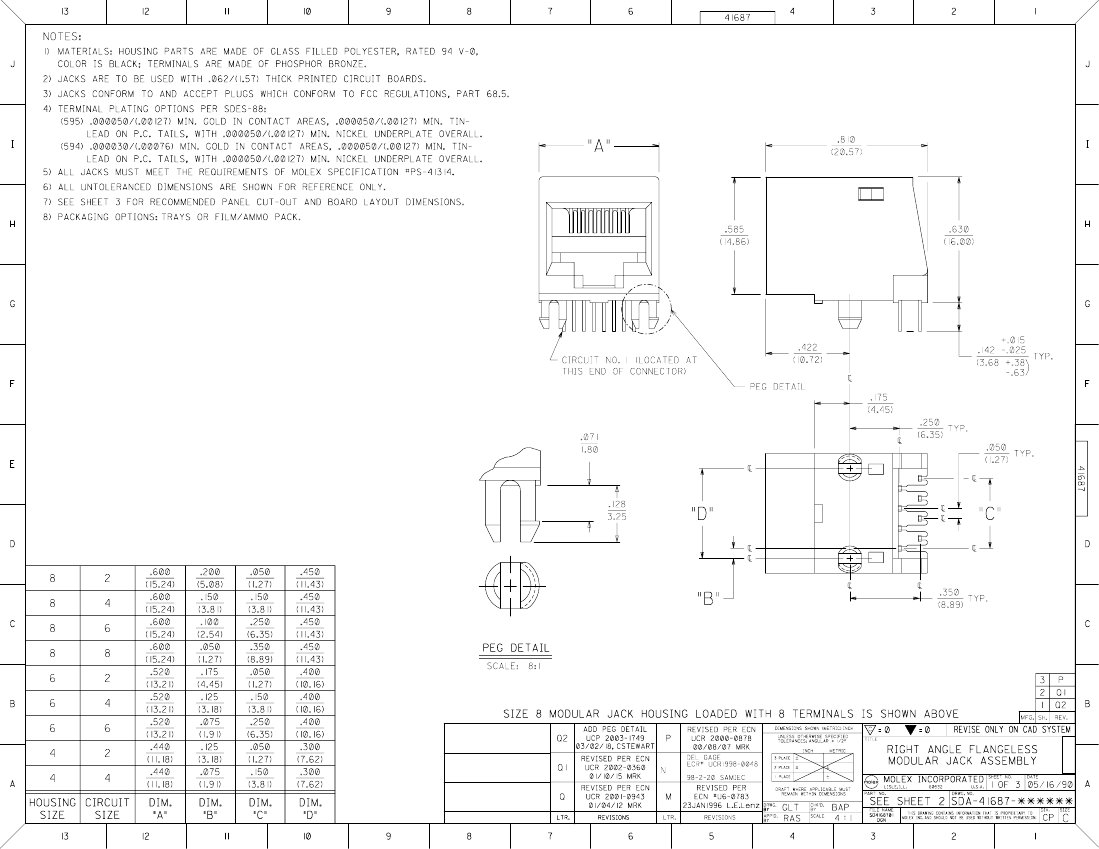

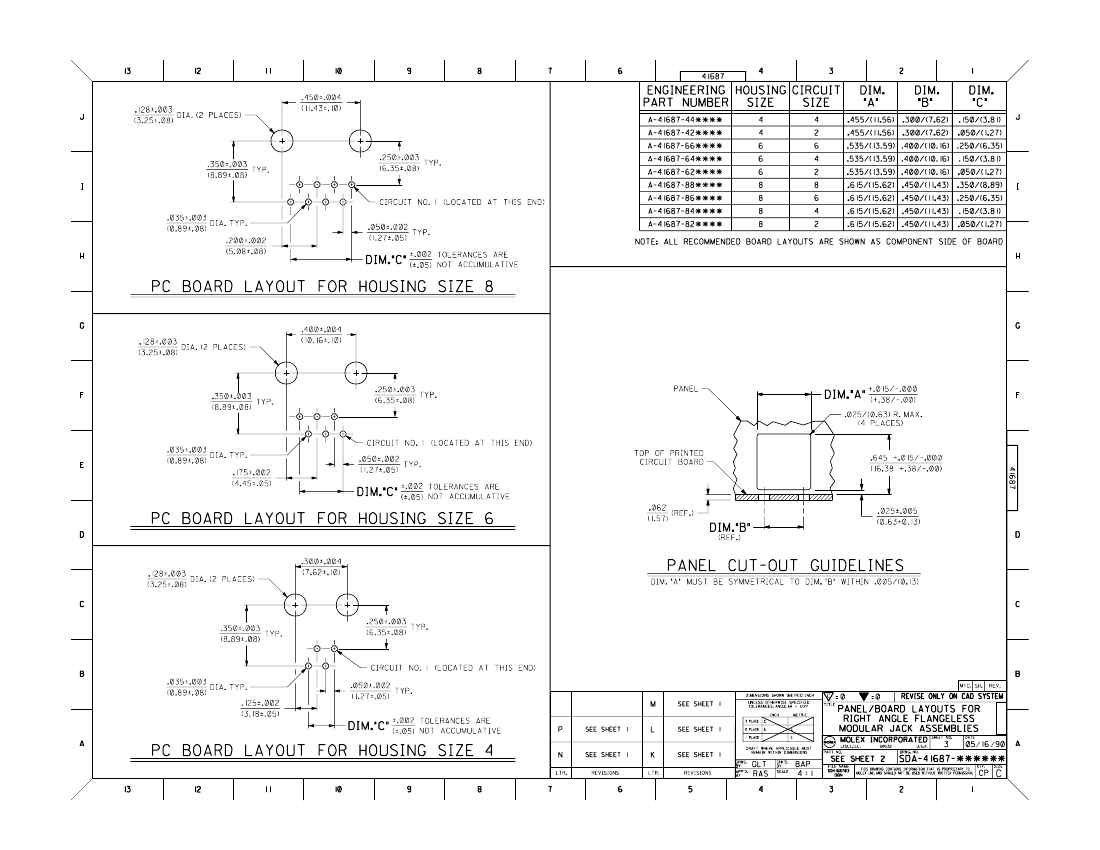

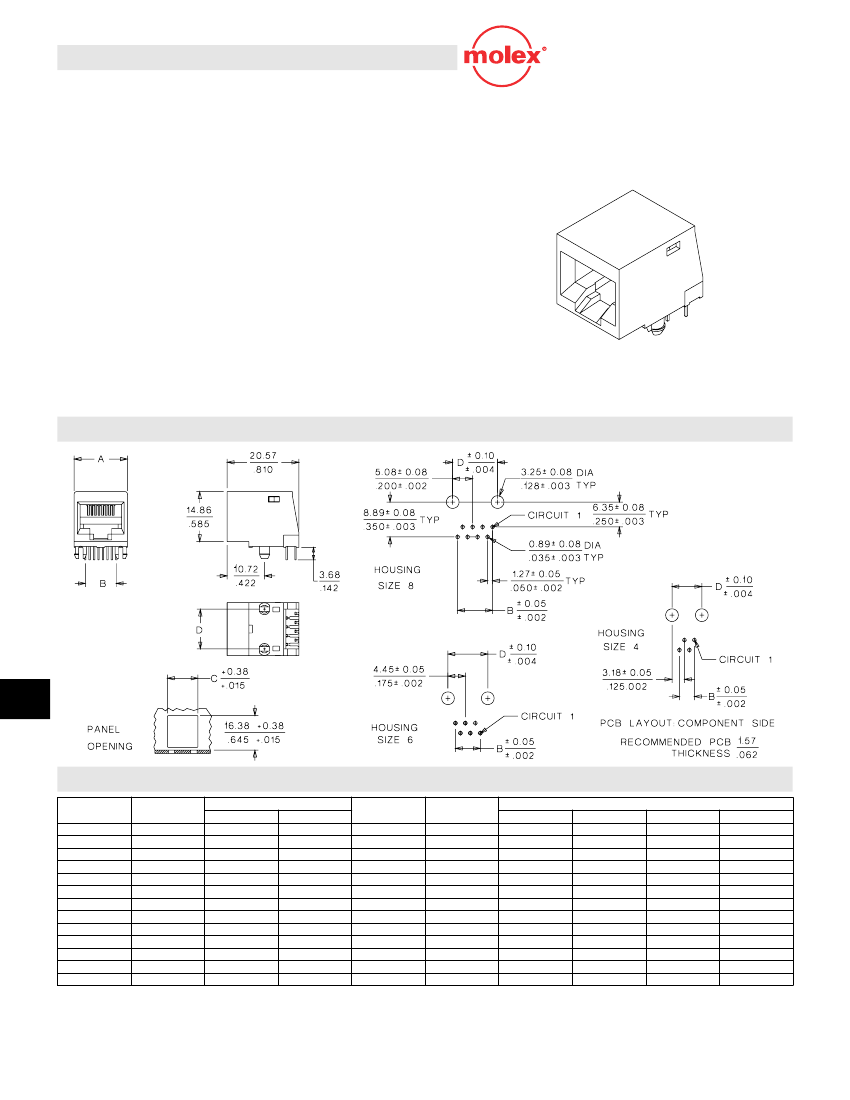

CATALOG DRAWING (FOR REFERENCE ONLY)
O

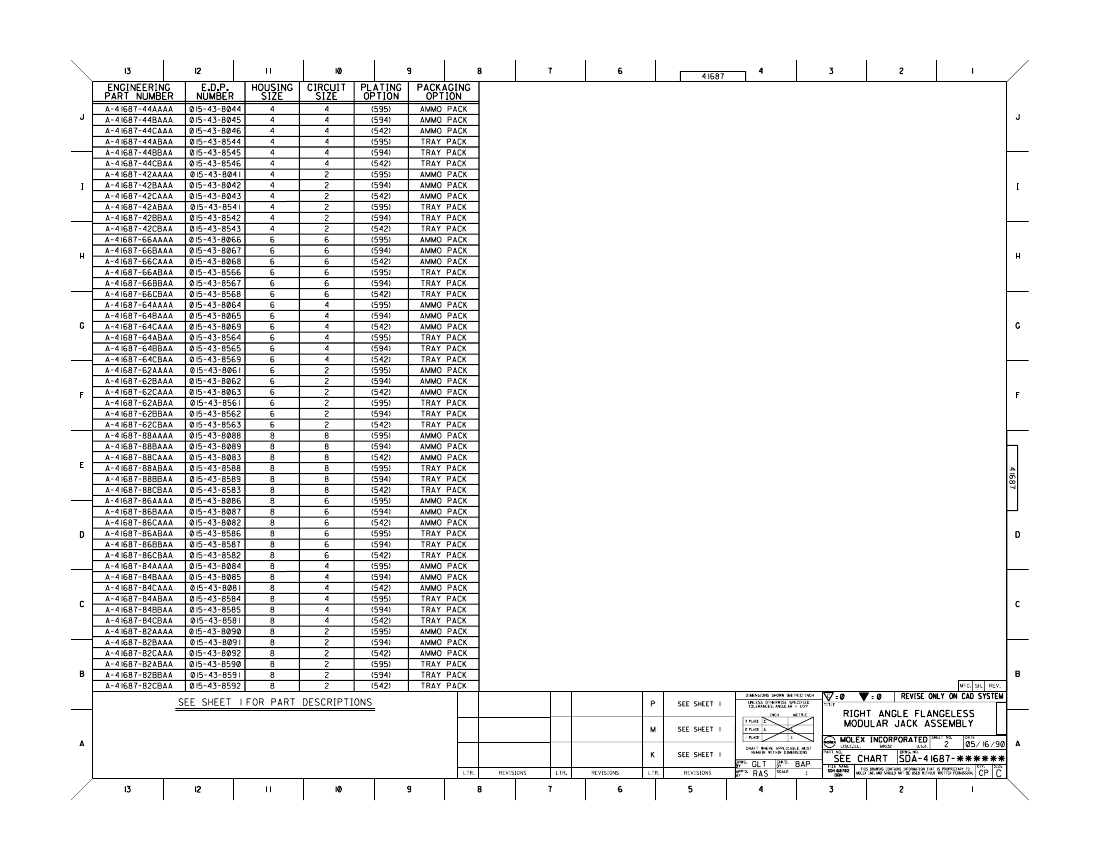

ORDERING INFORMATION AND DIMENSIONS
Circuits
4
4
6
6
6
8
8 Keyed
8
8 Keyed
8
8 Keyed
8
8 Keyed
Loaded
Contacts
2
4
2
4
6
2
2
4
4
6
6
8
8
Order No.
Film Pack
15-43-8041
15-43-8044
15-43-8061
15-43-8064
15-43-8066
15-43-8090
15-43-8010
15-43-8084
15-43-8007
15-43-8086
15-43-8004
15-43-8088
15-43-8001
Tray Pack
• 15-43-8541
• 15-43-8544
• 15-43-8561
• 15-43-8564
• 15-43-8566
• 15-43-8590
• 15-43-8510
• 15-43-8584
• 15-43-8507
• 15-43-8586
• 15-43-8504
• 15-43-8588
• 15-43-8501
Universal
Service Order Code
Keyed
No
No
No
No
No
No
Yes/RJ45
No
Yes/RJ45
No
Yes/RJ45
No
Yes/RJ45
11.18
11.18
13.21
13.21
13.21
15.24
15.24
15.24
15.24
15.24
15.24
15.24
15.24
Dimension
A
(.440)
(.440)
(.520)
(.520)
(.520)
(.600)
(.600)
(.600)
(.600)
(.600)
(.600)
(.600)
(.600)
1.27
3.81
1.27
3.81
6.35
1.27
1.27
3.81
3.81
6.35
6.35
8.89
8.89
B
(.050)
(.150)
(.050)
(.150)
(.250)
(.050)
(.050)
(.150)
(.150)
(.250)
(.250)
(.350)
(.350)
11.56
11.56
13.59
13.59
13.59
15.62
15.62
15.62
15.62
15.62
15.62
15.62
15.62
C
(.455)
(.455)
(.535)
(.535)
(.535)
(.615)
(.615)
(.615)
(.615)
(.615)
(.615)
(.615)
(.615)
7.62
7.62
10.16
10.16
10.16
11.43
11.43
11.43
11.43
11.43
11.43
11.43
11.43
D
(.300)
(.300)
(.400)
(.400)
(.400)
(.450)
(.450)
(.450)
(.450)
(.450)
(.450)
(.450)
(.450)
Modular Plugs and Jacks
RJ11W/RJ11C
RJ16
RJ12/RJ18/RJ25
RJ48
RJ14/RJ45
• US Standard Product, available through Molex franchised distributors
O-34
MX01
