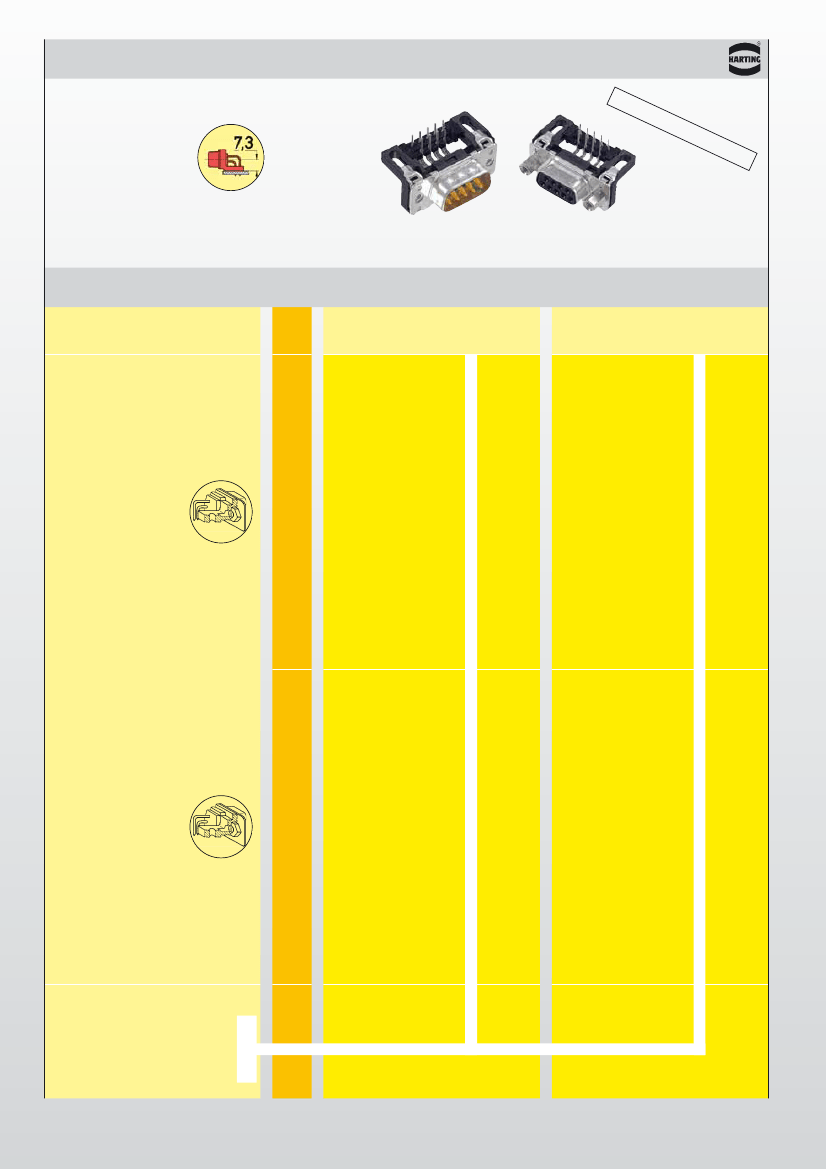

D-Sub
DIN 41 652 · CECC 75 301-802 · IEC 60 807
Mounting height
Number of contacts
9--37
SMC stamped solder pins, angled without grounding board locks
Identification
No. of
contacts
Part No.
Sta
nda
rd V
ers
ion
s
Performance levels
Explanations page 5
Other performance levels on request
þ
Performance level
Performance level
3
2
Male connector
tinned metal shell with dimples
2.84 mm pitch
9
15
25
37
09 65 127 780
09 65 227 780
09 65 327 780
09 65 427 780
.
.
.
.
2.84 mm pitch
09 65 127 680
09 65 227 680
09 65 327 680
09 65 427 680
.
.
.
.
2.54 mm pitch
9
15
25
37
09 65 126 780
09 65 226 780
09 65 326 780
09 65 426 780
.
.
.
.
2.54 mm pitch
09 65 126 680
09 65 226 680
09 65 326 680
09 65 426 680
.
.
.
.
Female connector
tinned metal shell
2.84 mm pitch
9
15
25
37
09 66 117 760
09 66 217 760
09 66 317 760
09 66 417 760
.
.
.
.
1)
1)
1)
1)
2.84 mm pitch
09 66 117 660
09 66 217 660
09 66 317 660
09 66 417 660
.
.
.
.
1)
1)
1)
1)
2.54 mm pitch
9
15
25
37
09 66 116 760
09 66 216 760
09 66 316 760
09 66 416 760
.
.
.
.
2.54 mm pitch
09 66 116 660
09 66 216 660
09 66 316 660
09 66 416 660
.
.
.
.
Please insert digit for flange thread or
fitted female screw locks
Ø 3.1 mm hole
þ
1)
0
1)
M3
þ
1
4-40 UNC
þ
2
fitted screw locks 4-40 UNC
þ
3
38
1)
Not normally kept in stock
D-Sub
DIN 41 652 · CECC 75 301-802 · IEC 60 807
Mounting height
Number of contacts
9--37
SMC stamped solder pins, angled without grounding board locks
Identification

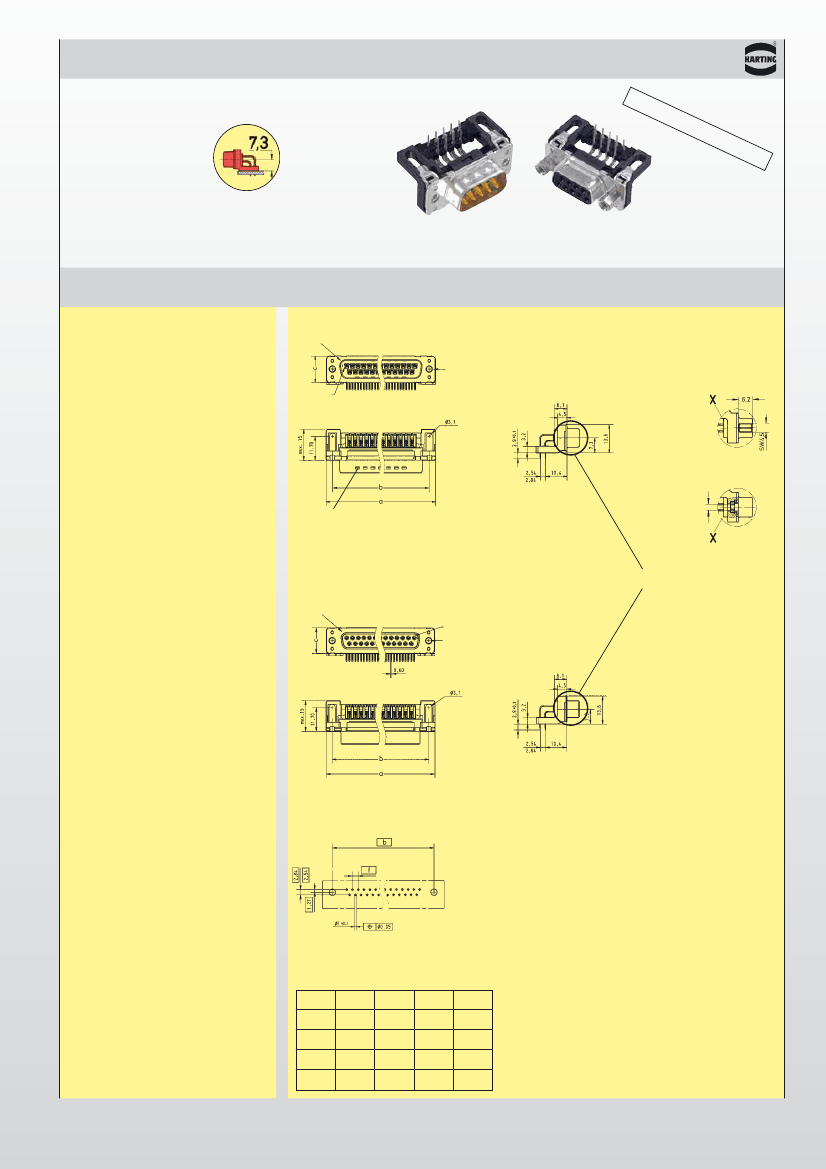

Drawing
Sta
nda
rd V
ers
ion
s
Dimensions in mm
Male connector
Mating face acc. to: DIN 41 652 · CECC 75 301-802 · IEC 60 807
Nut thread
No. 1
contact
fitted screw locks
4 - 40 UNC
M 3 or
4 - 40 UNC
Dimples
Female connector
Mating face acc. to: DIN 41 652 · CECC 75 301-802 · IEC 60 807
No. 1 contact
Nut thread
X
Board drillings
a
9
15
25
37
b
±0.1
c
f
2.74
2.74
2.76
2.76
Mating conditions page 5
Mounting details page 32
30.90 25.00 12.50
39.20 33.30 12.50
53.10 47.00 12.50
69.40 63.50 12.50
39
