09653667814 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 09653667814

09653667814: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size104KB，2 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

09653667814 Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal

09653667814 Parametric

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STANDARDS: DIN 41652; IEC 60807, LOW PROFILE, PANEL MOUNTABLE, POLARIZATION AVAILABLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE-POLYESTER
MIL compliance	NO
Manufacturer's serial number	0965
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

D-Sub

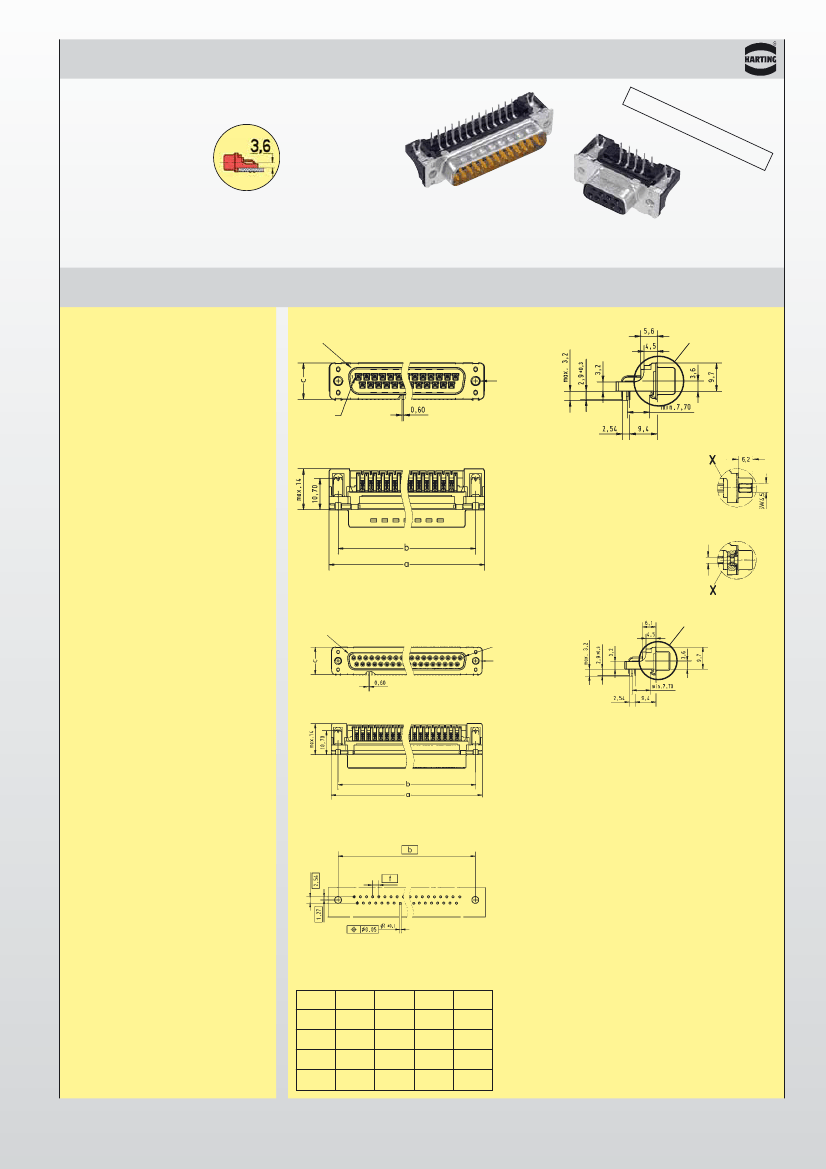

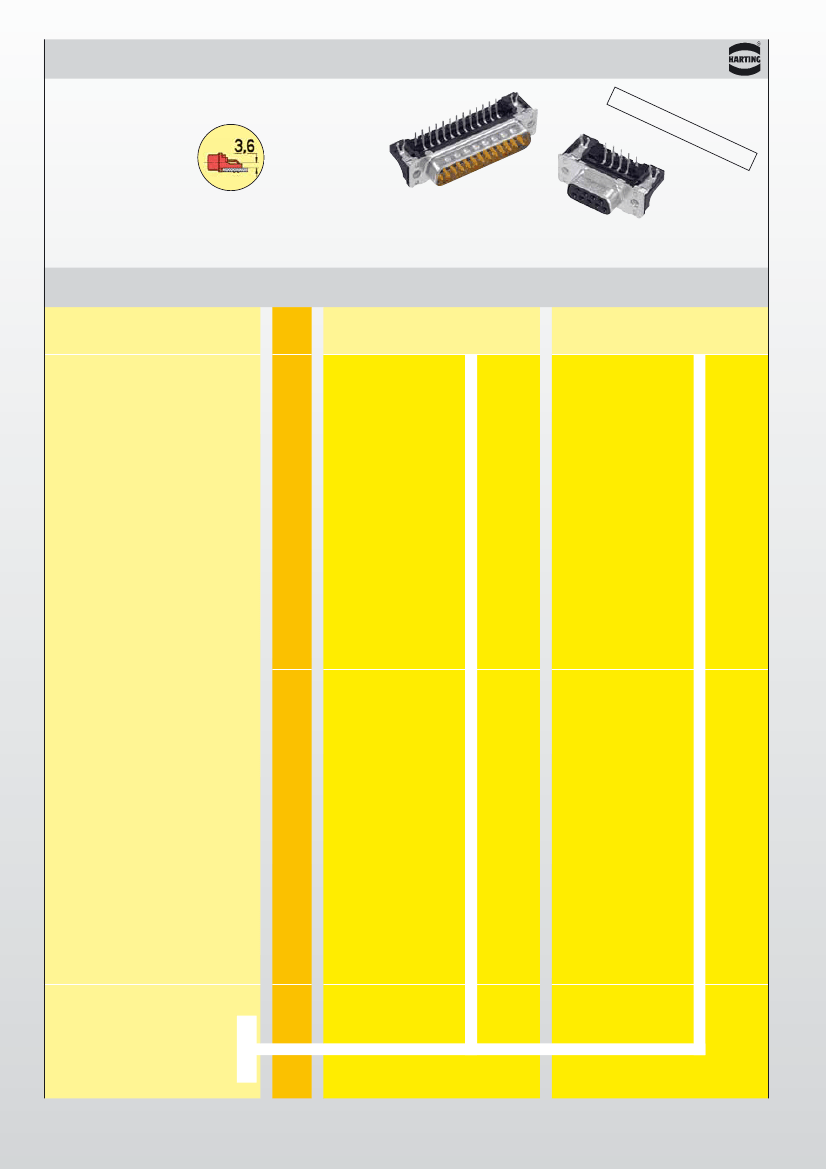

DIN 41 652 · CECC 75 301-802 · IEC 60 807

Mounting height

Number of contacts

9--37

SMC stamped solder pins, angled with grounding board locks

Identification

No. of

contacts

Part No.

Low

Pro

file

Ver

sio

Performance levels

Explanations page 5

Other contact surfaces on request

Performance level

Male connector

tinned metal shell with dimples

09 65 166 781

09 65 266 781

09 65 366 781

09 65 466 781

09 65 166 681

09 65 266 681

09 65 366 681

09 65 466 681

Female connector

tinned metal shell

09 66 156 761

09 66 256 761

09 66 356 761

09 66 456 761

09 66 156 661

09 66 256 661

09 66 356 661

09 66 456 661

Please insert digit for flange thread or

fitted female screw locks

Ø 3.1 mm hole

4-40 UNC

fitted screw locks 4-40 UNC

Not normally kept in stock

09653667814 Related Products

	09653667814	SM13T2-06-100.0M-20F3JJ	SM13T2-06-100.0M-20H3EH	SM25-09-13.0M-50J1JH	SM25-09-27.0M-15E1CB	09653666814	SM25-09-27.0M-20H3CB	09663566614	ABSM3A-03.999MHZ-S-B-2	09651667814
Description	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	Parallel - 3Rd Overtone Quartz Crystal, 100MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 2 PIN	Parallel - 3Rd Overtone Quartz Crystal, 100MHz Nom, ROHS COMPLIANT, MINIATURE, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 13MHz Nom, SMD, 2 PIN	Parallel - Fundamental Quartz Crystal, 27MHz Nom, SMD, 2 PIN	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal	Parallel - 3Rd Overtone Quartz Crystal, 27MHz Nom, SMD, 2 PIN	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal	Series - Fundamental Quartz Crystal	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant	unknown	compliant	unknown	compliant	unknown
Other features	STANDARDS: DIN 41652; IEC 60807, LOW PROFILE, PANEL MOUNTABLE, POLARIZATION AVAILABLE	AT-CUT CRYSTAL; TAPE AND REEL	AT-CUT CRYSTAL; TAPE AND REEL	AT CUT; TR, 7/10/13 INCH	AT CUT; TR, 7/10/13 INCH	STANDARDS: DIN 41652; IEC 60807, LOW PROFILE, PANEL MOUNTABLE, POLARIZATION AVAILABLE	AT CUT; TR, 7/10/13 INCH	STANDARDS: DIN 41652; IEC 60807, LOW PROFILE, PANEL MOUNTABLE, POLARIZATION AVAILABLE	AT-CUT; BULK	STANDARDS: DIN 41652; IEC 60807, LOW PROFILE, PANEL MOUNTABLE, POLARIZATION AVAILABLE
Manufacturer's serial number	0965	SM13T2	SM13T2	-	-	0965	-	0966	-	0965
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	-	conform to	-	conform to	-
Objectid	-	1077605012	1077605036	2062584768	2062651594	-	2062680758	-	7015121246	-
Ageing	-	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	-	5 PPM/YEAR	-	5 PPM/YEAR	-
Crystal/Resonator Type	-	PARALLEL - 3RD OVERTONE	PARALLEL - 3RD OVERTONE	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	-	PARALLEL - 3RD OVERTONE	-	SERIES - FUNDAMENTAL	-
Drive level	-	100 µW	100 µW	1000 µW	1000 µW	-	1000 µW	-	100 µW	-
frequency stability	-	0.002%	0.005%	0.01%	0.0015%	-	0.005%	-	0.01%	-
frequency tolerance	-	20 ppm	20 ppm	50 ppm	15 ppm	-	20 ppm	-	20 ppm	-
Installation features	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	-	SURFACE MOUNT	-
Nominal operating frequency	-	100 MHz	100 MHz	13 MHz	27 MHz	-	27 MHz	-	3.999 MHz	-
Maximum operating temperature	-	80 °C	75 °C	75 °C	45 °C	-	45 °C	-	70 °C	-
physical size	-	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)	L11.60XB5.0XH2.9 (mm)/L0.457XB0.197XH0.114 (inch)	L11.60XB5.0XH2.9 (mm)/L0.457XB0.197XH0.114 (inch)	-	L11.60XB5.0XH2.9 (mm)/L0.457XB0.197XH0.114 (inch)	-	L12.5XB4.95XH5.1 (mm)/L0.492XB0.195XH0.201 (inch)	-
Series resistance	-	80 Ω	80 Ω	60 Ω	40 Ω	-	100 Ω	-	150 Ω	-
surface mount	-	YES	YES	YES	YES	-	YES	-	YES	-
