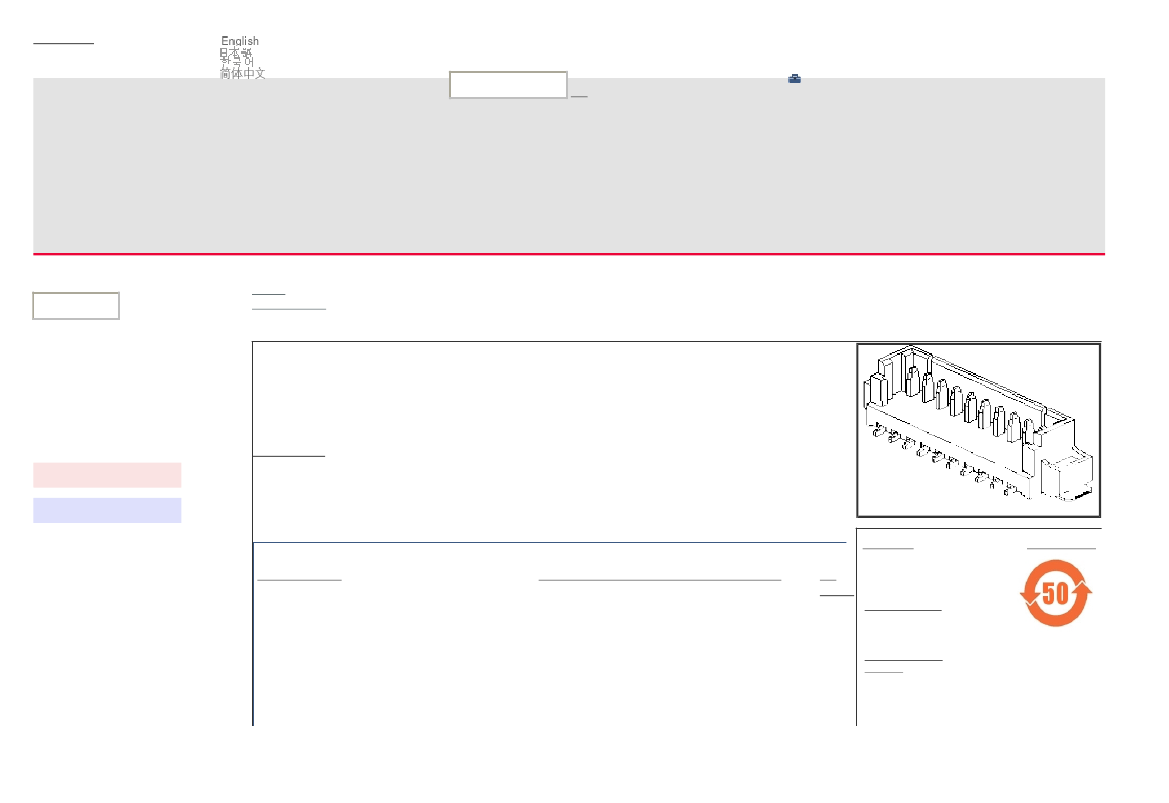

Molex Connector Part Number - 0533980590
Molex.com
Register | Login
My Parts ( 0 items )
Page 1 of 4
Product Name
Cross-Ref
Catalog
Literature
Industries
Standards
Contact Us
About Us
Investors
Careers
Connectors
Search site:Search:
Enter Part No. or Keyword
Go
Sockets
I/O Connectors
Cable
Assemblies
Fiber Optics
Printed Circuit
Products
Industrial
Products
Lighting Products
Switch Language
English
Need Assistance?
Contact Us
Find a Distributor
Order Samples
Tech Library
Ecocare
Electrical Models
Printer-friendly page
Email this page
Home
PCB Headers
Datasheet
Part Number:
0533980590
Status:
Contact Molex
Overview:
PicoBlade™
Description:
1.25mm (.049") Pitch PicoBlade™ Header, Surface Mount, Vertical, 5 Circuits
Replacement Part Number:
53398-0571
Documents:
Note - Please disable browser pop-up blockers for documents on www.molex.com
Drawing (PDF)
Product Specification PS-51021-011 (PDF)
Series image - Reference only
3D
Model
EU RoHS
Not RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
China RoHS
Molex Connector Part Number - 0533980590
Page 2 of 4
Need more information on product
environmental compliance?
Email
productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance,
click here
Please visit the
Contact Us
section for any non-
product compliance questions.
Search Parts in this Series
53398
Series
Mates With
51021
PicoBlade™ Wire-to-Wire and
Wire-to-Board Housing
Datasheet (P
Order Products:
Check Distributor Inventory
Add to My Parts
Part Detail:
(show all)
GeneralPhysicalElectricalAgency CertificationMaterial InfoReference
General PhysicalElectricalAgency Certification Material Info Reference - Drawing Numbers
General
Product Family
Series
Application
Overview
Product Name
PCB Headers
53398
Wire-to-Board
PicoBlade™
PicoBlade™
Molex Connector Part Number - 0533980590
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
No
5
5
Natural
No
94V-0
No
No
None
Yes
0.224 In
5.70 mm
Phosphor Bronze
Tin-Lead
Tin-Lead
High Temperature Thermoplastic
1
Vertical
No
Yes
Embossed Tape on Reel
0.049 In
1.25 mm
120
3
120
3
Yes
Partial
No
-40°C to +85°C
Surface Mount
Page 3 of 4
Electrical
(Please review the Product Specification for specific details.)
Current - Maximum per Contact
Voltage - Maximum
Agency Certification
UL
Material Info
E29179
1A
125V
Molex Connector Part Number - 0533980590
Reference - Drawing Numbers
Product Specification
PS-51021-011, RPS-51021-002, RPS-51021-003, RPS-
51021-006, RPS-51021-009, RPS-51021-013, RPS-51021-
014, RPS-51021-018, RPS-51021-021, RPS-51021-023,
RPS-51021-024, RPS-51021-052, RPS-53398-002, RPS-
53398-037
SD-53398-**10, SD-53398-**90
Page 4 of 4
Sales Drawing
