09643247224 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 09643247224

Preview

09643247224: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal,; CategoryThe connector The connector; File Size71KB，2 Pages; ManufacturerHARTING

Download Datasheet Parametric View All

09643247224 Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal,

09643247224 Parametric

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	PANEL MOUNTABLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	YES
IEC compliance	NO
insulator material	GLASS FILLED PCT
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

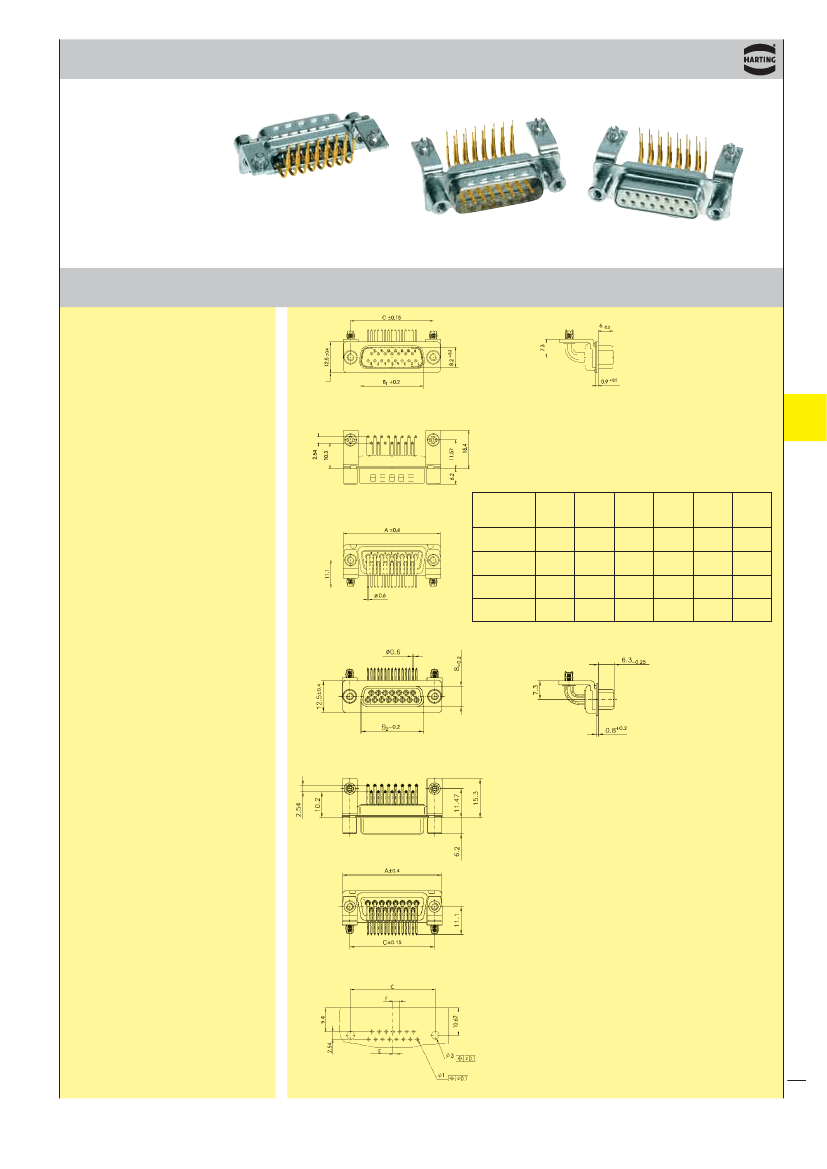

D-Sub

Number of contacts

9--37

Turned solder pins, right angled, bracket, board lock and female screw

Identification

No. of

contacts

Part No.

male connectors

female connectors

Connectors with

47 pF

C filter

9

15

25

37

09 64 124 721

09 64 224 721

09 64 324 721

09 64 424 721

.

09 64 114 721

09 64 214 721

09 64 314 721

09 64 414 721

.

D-Sub

Connectors with

470 pF

C filter

9

15

25

37

09 64 124 722

09 64 224 722

09 64 324 722

09 64 424 722

.

09 64 114 722

09 64 214 722

09 64 314 722

09 64 414 722

.

Connectors with

1000 pF

C filter

9

15

25

37

09 64 124 723

09 64 224 723

09 64 324 723

09 64 424 723

.

09 64 114 723

09 64 214 723

09 64 314 723

09 64 414 723

.

Connectors with

3900 pF

C filter

9

15

25

37

09 64 124 724

09 64 224 724

09 64 324 724

09 64 424 724

.

09 64 114 724

09 64 214 724

09 64 314 724

09 64 414 724

.

Please insert digit

for flange thread

05

108

4-40 UNC

M3

þ

4

5
