54104-3592 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54104-3592

54104-3592: DescriptionCard Edge Connector, 35 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size353KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54104-3592 Overview

Card Edge Connector, 35 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

54104-3592 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	ZIF
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	35
UL Flammability Code	94V-0
Base Number Matches	1

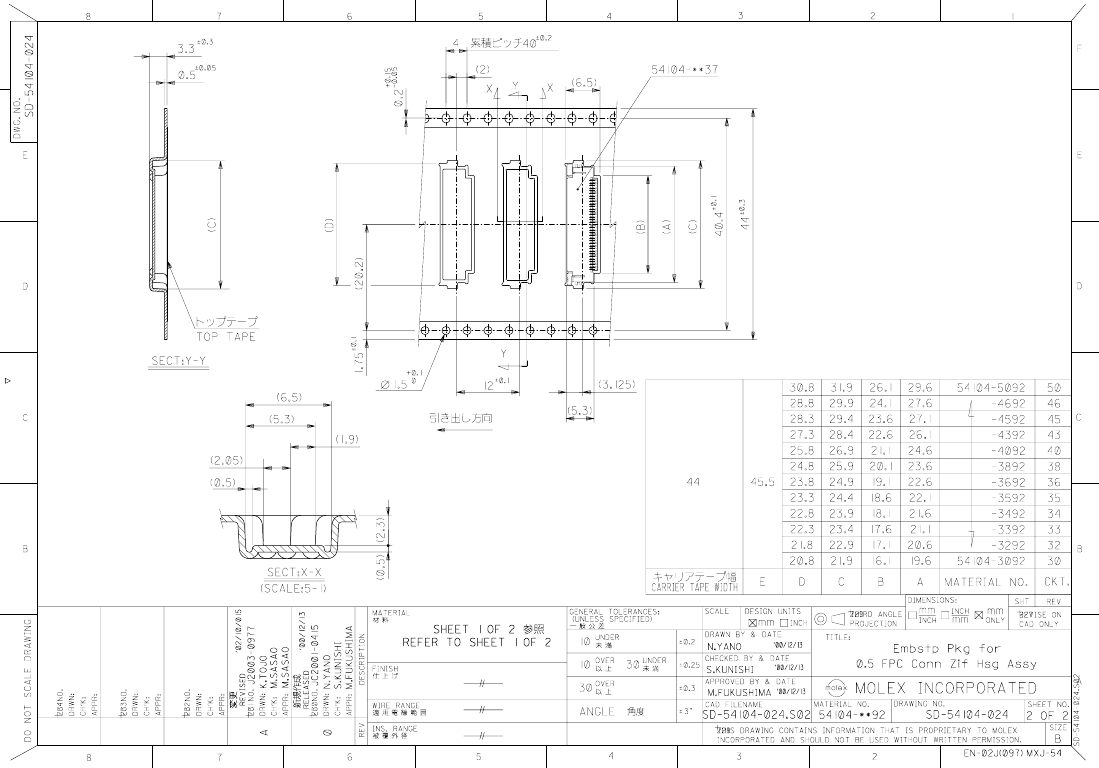

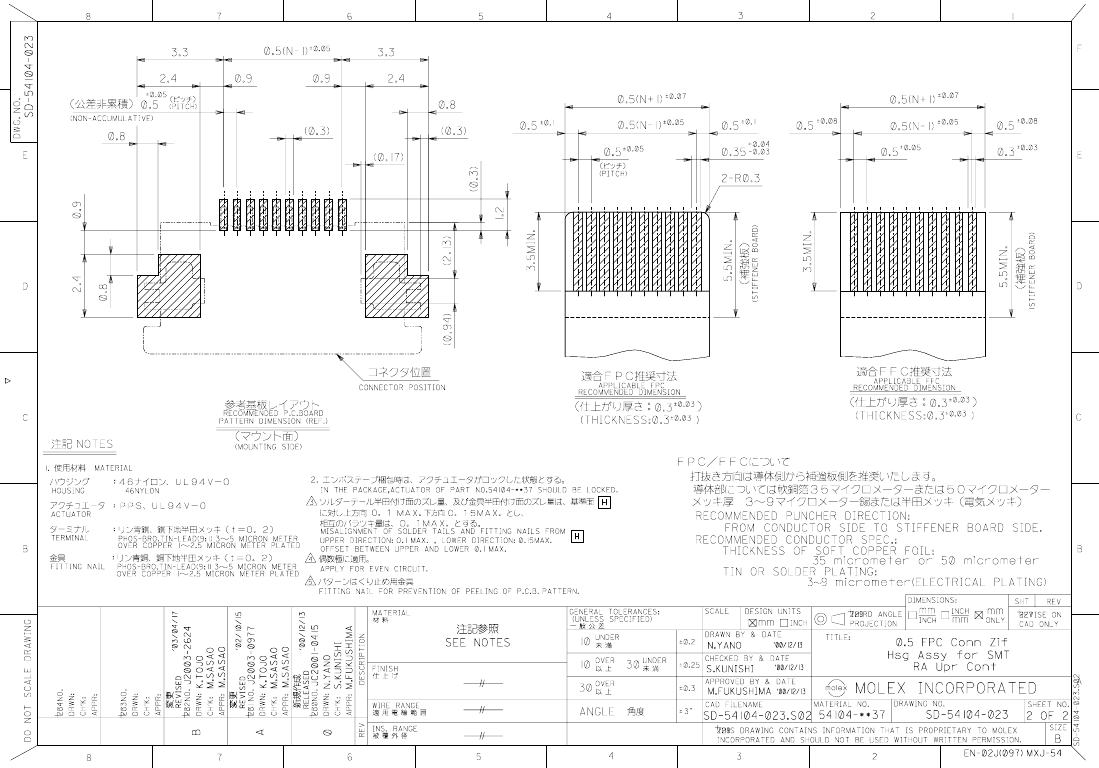

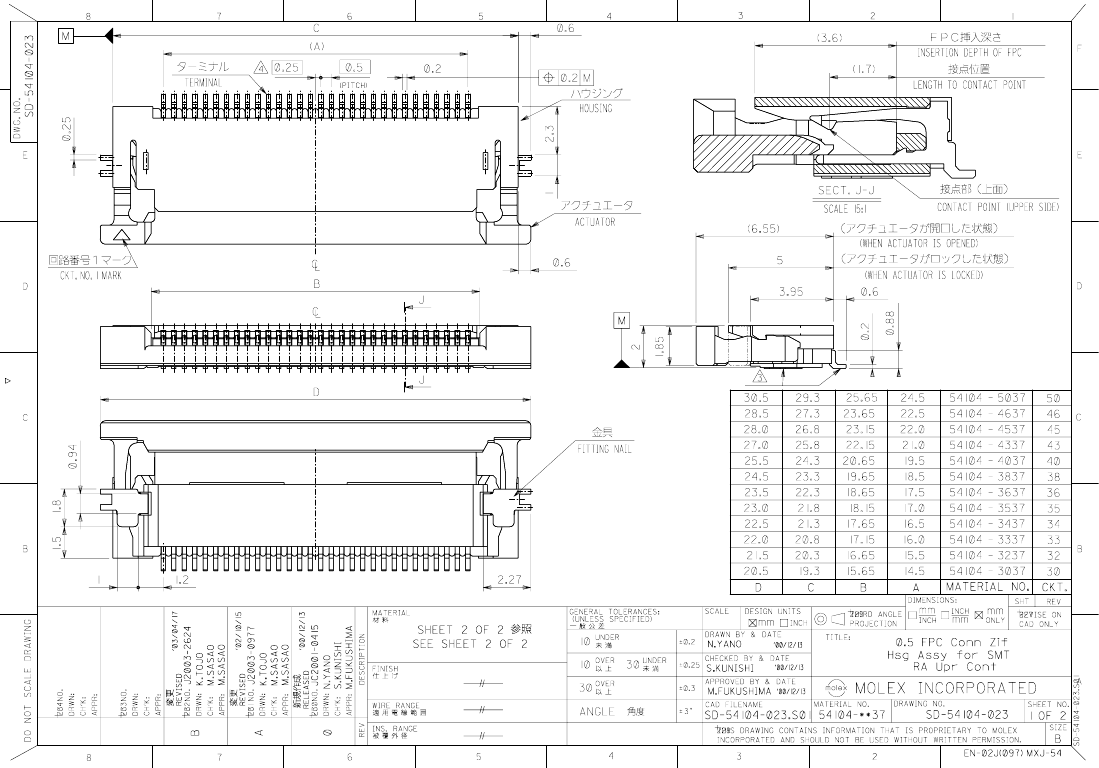

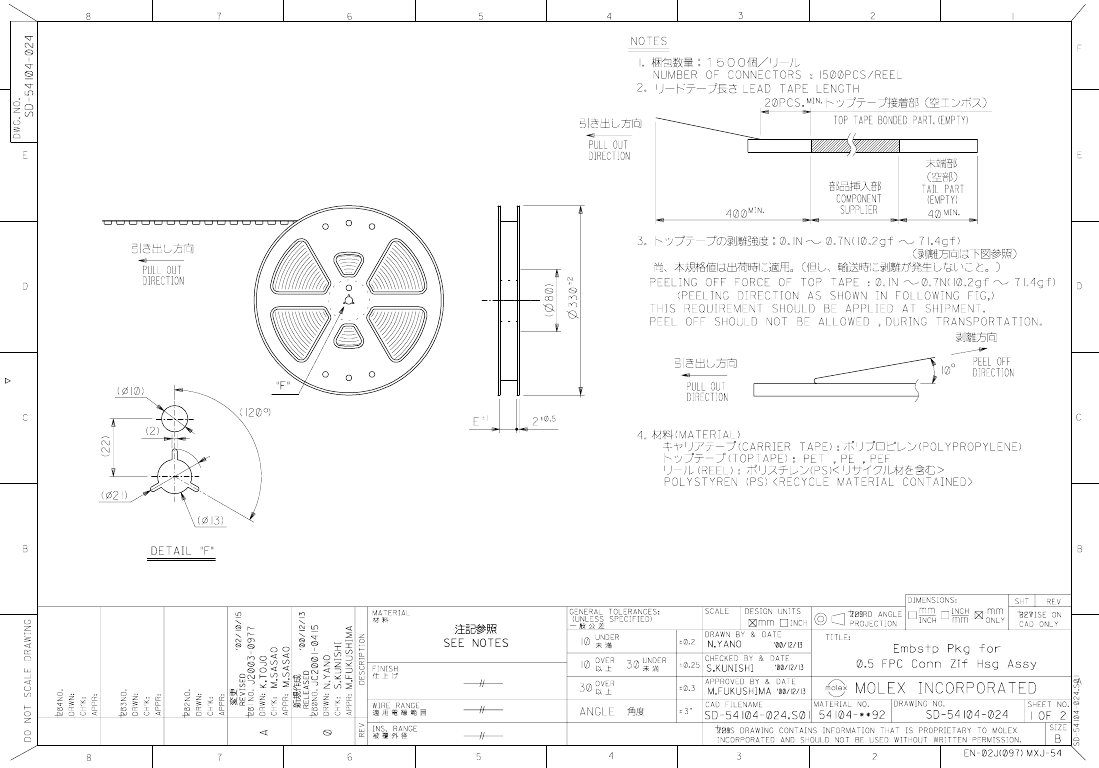

Preview

Download Datasheet

View All

54104-3592 Related Products

	54104-3592	54104-3092	54104-4392	54104-4692	54104-3892	54104-4592	RM222-100-242-6536	UM-4/220S3100.0MHZ	54104-3692
Description	Card Edge Connector, 35 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Card Edge Connector, 43 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 46 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 38 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal	Card Edge Connector, 45 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,	Board Connector, 100 Contact(s), 2 Row(s), Female, 0.075 inch Pitch, Hole .099-.111, Plug	Series - 3Rd Overtone Quartz Crystal, 100MHz Nom,	Card Edge Connector, 36 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	compliant	compliant	compliant	unknown
Is it lead-free?	Contains lead	Contains lead	-	-	Contains lead	Contains lead	Contains lead	Lead free	Contains lead
Is it Rohs certified?	incompatible	conform to	incompatible	-	incompatible	conform to	incompatible	conform to	incompatible
Maker	Molex	Molex	Molex	Molex	Molex	Molex	-	-	-
ECCN code	EAR99	EAR99	-	-	EAR99	EAR99	EAR99	-	EAR99
Other features	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF	WITH MOUNTING EARS	-	ZIF
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	BOARD CONNECTOR	-	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	TIN LEAD (197) OVER COPPER	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	-	-	NO
Filter function	NO	NO	NO	NO	NO	NO	-	-	NO
IEC compliance	NO	NO	NO	NO	NO	NO	-	-	NO
MIL compliance	NO	NO	NO	NO	NO	NO	YES	-	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	-	-	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-	-	BOARD
Number of rows loaded	1	1	1	1	1	1	2	-	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	-	-	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	-	SURFACE MOUNT
Total number of contacts	35	30	43	46	38	45	100	-	36
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	-	-	94V-0
Base Number Matches	1	1	1	1	1	1	-	-	1
