P4C1256L
LOW POWER 32K x 8
STATIC CMOS RAM
FEATURES
V
CC
Current (Commercial/Industrial)
— Operating: 70mA/85mA
— CMOS Standby: 100µA/100µA
Access Times
—55/70 (Commercial or Industrial)
Single 5 Volts ±10% Power Supply
Easy Memory Expansion Using
CE
and
OE
Inputs
Common Data I/O
Three-State Outputs
Fully TTL Compatible Inputs and Outputs
Advanced CMOS Technology
Automatic Power Down
Packages
—28-Pin 600 mil DIP
—28-Pin 300 mil CERDIP
—28-Pin 300 mil Narrow Body SOP
DESCRIPTION
The P4C1256L is a 262,144-bit low power CMOS
static RAM organized as 32Kx8. The CMOS memory
requires no clocks or refreshing, and has equal access
and cycle times. Inputs are fully TTL-compatible. The
RAM operates from a single 5V±10% tolerance power
supply.
Access times of 55 ns and 70 ns are available. CMOS
is utilized to reduce power consumption to a low level.
The P4C1256L device provides asynchronous opera-
tion with matching access and cycle times. Memory
locations are specified on address pins A
0
to A
14
. Read-
ing is accomplished by device selection (CE and output
enabling (OE) while write enable (WE) remains HIGH.
By presenting the address under these conditions, the
data in the addressed memory location is presented on
the data input/output pins. The input/output pins stay in
the HIGH Z state when either
CE
or
OE
is HIGH or
WE
is LOW.
Package options for the P4C1256L include 28-pin 600
mil DIP, 28-pin 300 mil CERDIP, and 28-pin 300 mil Nar-
row Body SOP packages.

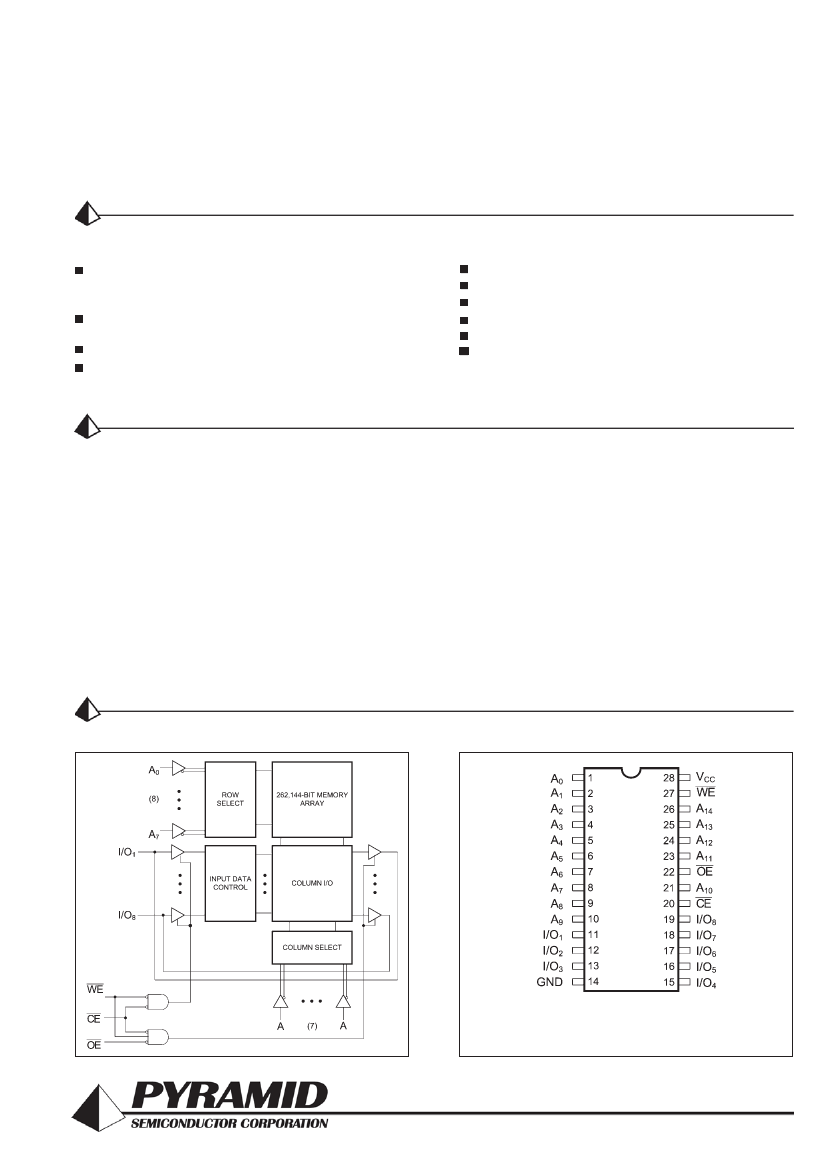

FUNCTIONAL BLOCK DIAGRAM
PIN CONFIGURATION
DIP (P6, D5-2), SOP (S11-3)
TOP VIEW
Document #
SRAM121
REV E
Revised June 2007
1
P4C1256L
RECOMMENDED OPERATING TEMPERATURE & SUPPLY VOLTAGE
Temperature Range (Ambient)
Commercial (0°C to 70°C)
Industrial (-40°C to 85°C)
Supply Voltage
4.5V
≤
V
CC
≤
5.5V
4.5
≤
V
CC
≤
5.5V
MAXIMUM RATINGS
(1)
Stresses greater than those listed can cause permanent damage to the device. These are absolute stress ratings
only. Functional operation of the device is not implied at these or any other conditions in excess of those given in
the operational sections of this data sheet. Exposure to Maximum Ratings for extended periods can adversely
affect device reliability.
Symbol
V
CC
V
TERM
T
A
S
TG
I
OUT
I
LAT
Parameter
Supply Voltage with Respect to GND
Terminal Voltage with Respect to GND (up to 7.0V)
Operating Ambient Temperature
Storage Temperature
Output Current into Low Outputs
Latch-up Current
>200
Min
-0.5
-0.5
-55
-65
Max
7.0
V
CC
+ 0.5
125
150
25
Unit
V
V
°C
°C
mA
mA
DC ELECTRICAL CHARACTERISTICS
(Over Recommended Operating Temperature & Supply Voltage)
(2)
Symbol
V
OH
V
OL
V
IH
V
IL
I
LI
I
LO
Parameter
Output High Voltage
(I/O
0
- I/O
7
)
Output Low Voltage
(I/O
0
- I/O
7
)
Input High Voltage
Input Low Voltage
Input Leakage Current
Output Leakage Current
V
CC
Current
TTL Standby Current
(TTL Input Levels)
V
CC
Current
CMOS Standby Current
(CMOS Input Levels)
GND
≤
V
IN
≤
V
CC
GND
≤
V
OUT
≤
V
CC
CE
≥
V
IH
V
CC
= 5.5V, I
OUT
= 0 mA
CE
= V
IH
V
CC
= 5.5V, I
OUT
= 0 mA
CE
≥
V
CC
-0.2V
Ind'l.
Com'l.
Ind'l.
Com'l.
Test Conditions
I
OH
= –1mA, V
CC
= 4.5V
I
OL
= 2.1mA
2.2
-0.5
(3)
-5
-2
-5
-2
Min
2.4
0.4
V
CC
+ 0.3
0.8
+5
+2
+5
+2
3
Max
Unit
V
V
V
V
µA
µA
I
SB
mA
I
SB1
100
µA
Document #
SRAM121
REV E
Page 2 of 11
P4C1256L
CAPACITANCES
(4)
(V
CC
= 5.0V, T
A
= 25°C, F = 1.0 MHz)
Symbol
C
IN
C
OUT
Parameter
Input Capacitance
Output Capacitance
Test Conditions
V
IN
= 0V
V
OUT
= 0V
Max
7
9
Unit
pF
pF
POWER DISSIPATION CHARACTERISTICS VS. SPEED
Symbol
I
CC
Parameter
Dynamic Operating Current
Temperature
Range
Commercial
Industrial
*
-55
70
85
-70
70
85
-55
15
25
**
-70
15
25
Unit
mA
mA
*Tested
with outputs open and all address and data inputs changing at the maximum write-cycle rate.
The device is continuously enabled for writing, i.e.
CE
and
WE
≤
V
IL
(max),
OE
is high. Switching
inputs are 0V and 3V.
**As above but @ f=1 MHz and V
IL
/ V
IH
= 0V/ V
CC
.
AC ELECTRICAL CHARACTERISTICS - READ CYCLE
(Over Recommended Operating Temperature & Supply Voltage)
Symbol
t
RC
t
AA
t
AC
t
OH
t
LZ
t
HZ
t
OE
t
OLZ
t
OHZ
t
PU
t
PD
Parameter
Read Cycle Time
Address Access Time
Chip Enable Access
Time
Output Hold from
Address Change
Chip Enable to
Output in Low Z
Chip Disable to
Output in High Z
Output Enable Low
to Data Valid
Output Enable Low to
Low Z
Output Enable High
to High Z
Chip Enable to Power
Up Time
Chip Disable to
Power Down Time
0
55
5
20
0
70
-55
Min
55
55
55
5
5
20
30
5
25
5
5
25
35
Max
Min
70
70
70
-70
Max
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Document #
SRAM121
REV E
Page 3 of 11
P4C1256L

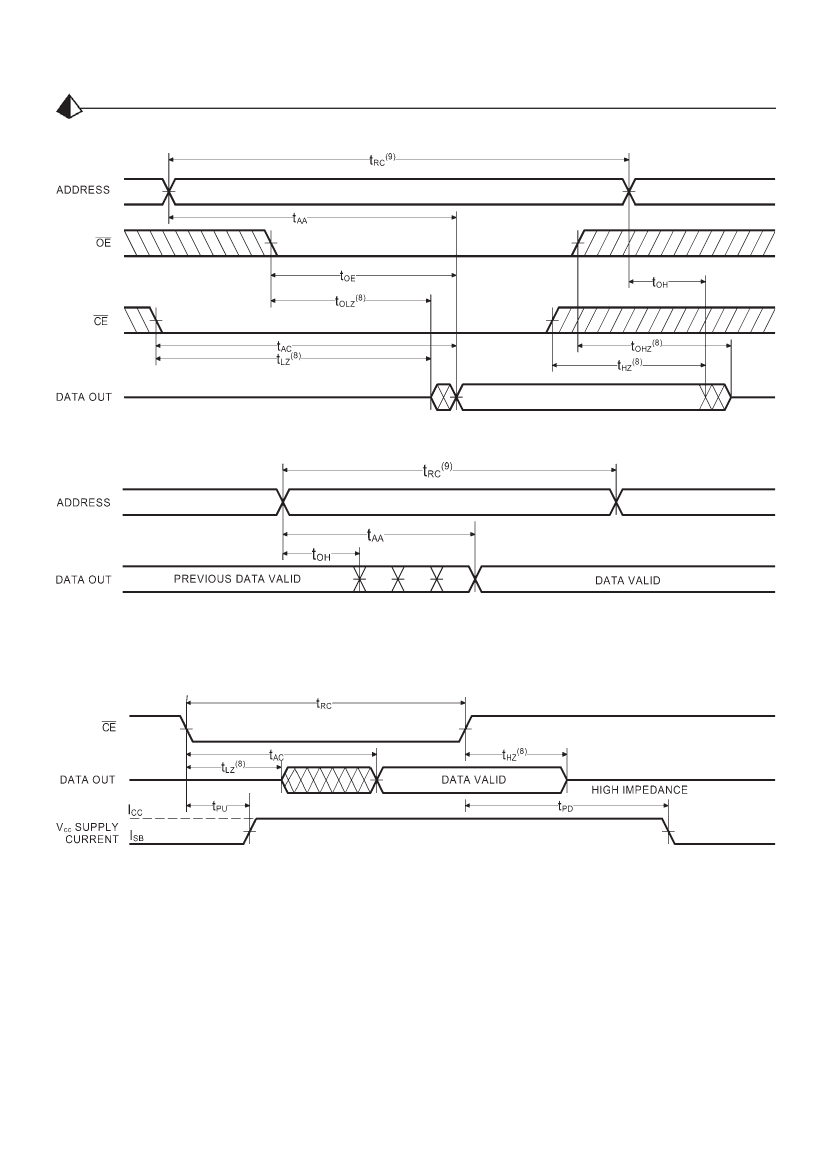

TIMING WAVEFORM OF READ CYCLE NO. 1 (OE CONTROLLED)
(5)
OE
TIMING WAVEFORM OF READ CYCLE NO. 2 (ADDRESS CONTROLLED)
(5,6)
TIMING WAVEFORM OF READ CYCLE NO. 3 (CE CONTROLLED)
(5,7)
CE
Notes:
1. Stresses greater than those listed under MAXIMUM RATINGS may
cause permanent damage to the device. This is a stress rating only
and functional operation of the device at these or any other conditions
above those indicated in the operational sections of this specification
is not implied. Exposure to MAXIMUM rating conditions for extended
periods may affect reliability.
2. Extended temperature operation guaranteed with 400 linear feet per
minute of air flow.
3. Transient inputs with V
IL
and I
IL
not more negative than –3.0V and
–100mA, respectively, are permissible for pulse widths up to 20 ns.
4. This parameter is sampled and not 100% tested.
5.
WE
is HIGH for READ cycle.
6.
CE
is LOW and
OE
is LOW for READ cycle.
7. ADDRESS must be valid prior to, or coincident with
CE
transition
LOW.
8. Transition is measured ± 200 mV from steady state voltage prior to
change, with loading as specified in Figure 1. This parameter is
sampled and not 100% tested.
9. Read Cycle Time is measured from the last valid address to the first
transitioning address.
Document #
SRAM121
REV E
Page 4 of 11
P4C1256L
AC CHARACTERISTICS - WRITE CYCLE
(Over Recommended Operating Temperature & Supply Voltage)
-55
Symbol
Parameter
Min
Max
t
WC
t
CW
t
AW
t
AS
t
WP
t
AH
t
DW
t
DH
t
WZ
t
OW
Write Cycle Time
Chip Enable Time
to End of Write
Address Valid to
End of Write
Address Set-up
Time
Write Pulse Width
Address Hold
Time
Data Valid to End
of Write
Data Hold Time
Write Enable to
Output in High Z
Output Active from
End of Write
5
55
50
50
0
40
0
25
0
25
5
-70
Min
70
60
60
0
50
0
30
0
30
Max
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
WE
TIMING WAVEFORM OF WRITE CYCLE NO. 1 (WE CONTROLLED)
(10,11)
Notes:
10.
CE
and
WE
must be LOW for WRITE cycle.
11.
OE
is LOW for this WRITE cycle to show t
WZ
and t
OW
.
12. If
CE
goes HIGH simultaneously with
WE
HIGH, the output remains
in a high impedance state
13. Write Cycle Time is measured from the last valid address to the first
transitioning address.
Document #
SRAM121
REV E
Page 5 of 11
