046266020001800+ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 046266020001800+

Preview

046266020001800+: DescriptionCard Edge Connector; CategoryThe connector The connector; File Size225KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

046266020001800+ Overview

Card Edge Connector

046266020001800+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AVX
Reach Compliance Code	unknown
Is Samacsys	N
Other features	ELCO
body width	0.096 inch
subject depth	0.138 inch
body length	0.461 inch
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	DUAL PRONG
Filter function	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.6 mm
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

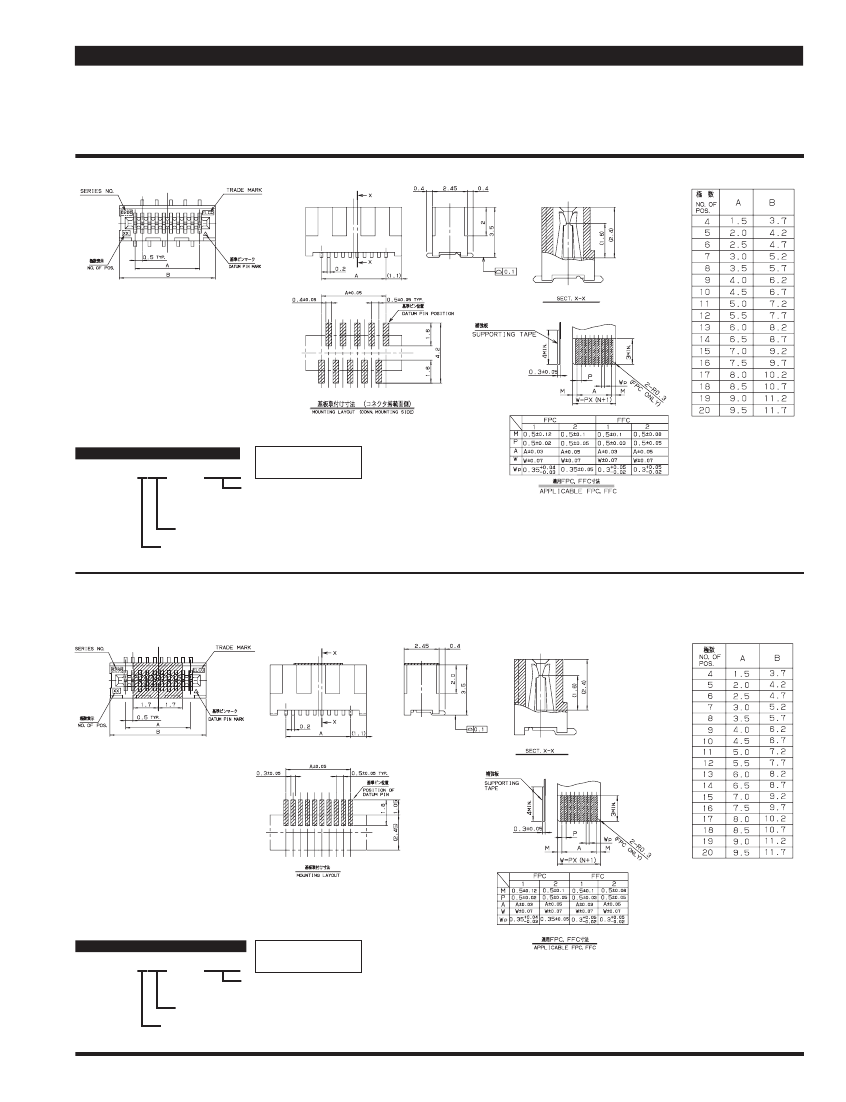

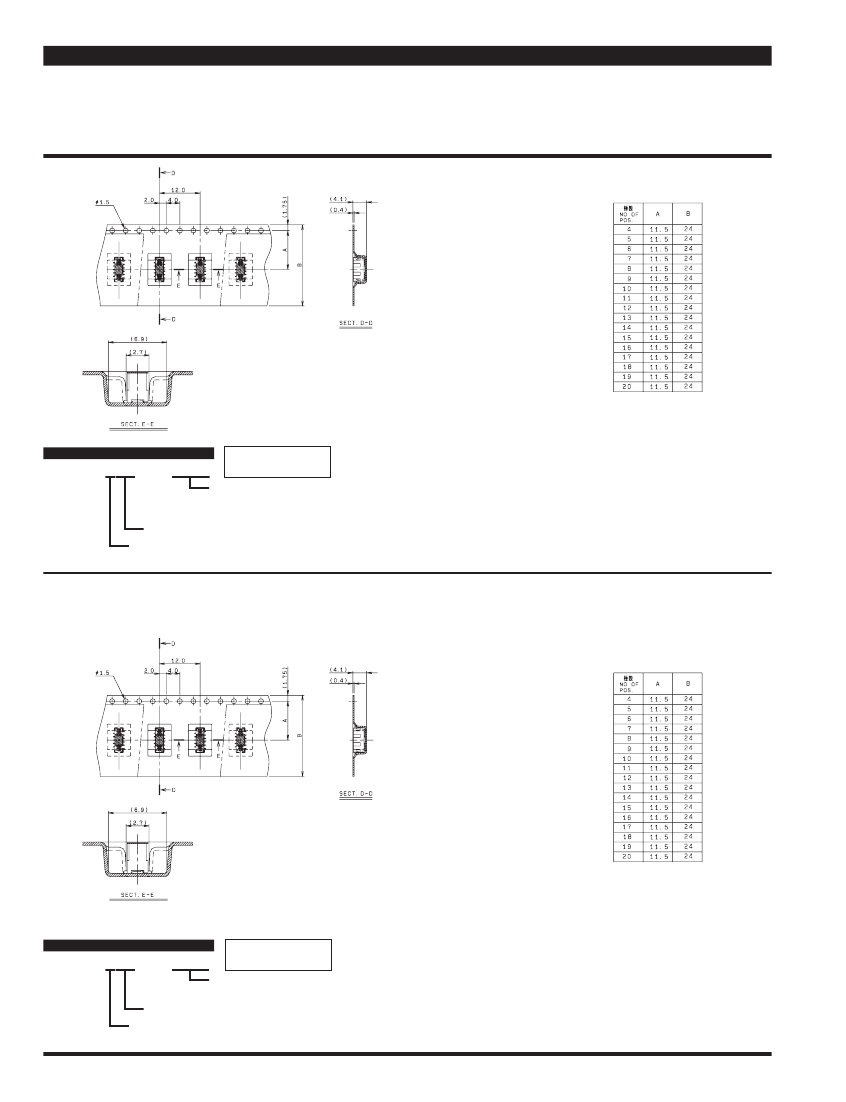

0.5mm Pitch

SERIES

6266

0.5mmピッチ NON-ZIF

ストレート

SMT

両面接点

0.5mmPitch LIF Vertical SMT Dual- sided contact

注文コード

ORDERING CODE

RoHS 対応品

RoHS Compliant Product

04 6266 XXX 001 XXX+

800+：スズ銅めっき Sn-Cu Plated

851+：金めっき Au Plated

894+：金めっき Au Plated

極数

NUMBER OF POSITIONS

0：吸着テープ無 Without vacuum tape

5：吸着テープ有 With vacuum tape

生産対応可½極数については、営業部にご確認願います。

Feel free to contact our sales department for

available numbers of positions.

●片側リードタイプ

（ONE SIDE LEAD TYPE）

注文コード

ORDERING CODE

RoHS 対応品

RoHS Compliant Product

04 6266 XXX 011 XXX+

800+：スズ銅めっき Sn-Cu Plated

851+：金めっき Au Plated

極数

NUMBER OF POSITIONS

0：吸着テープ無 Without vacuum tape

5：吸着テープ有 With vacuum tape

生産対応可½極数については、営業部にご確認願います。

Feel free to contact our sales department for

available numbers of positions.
