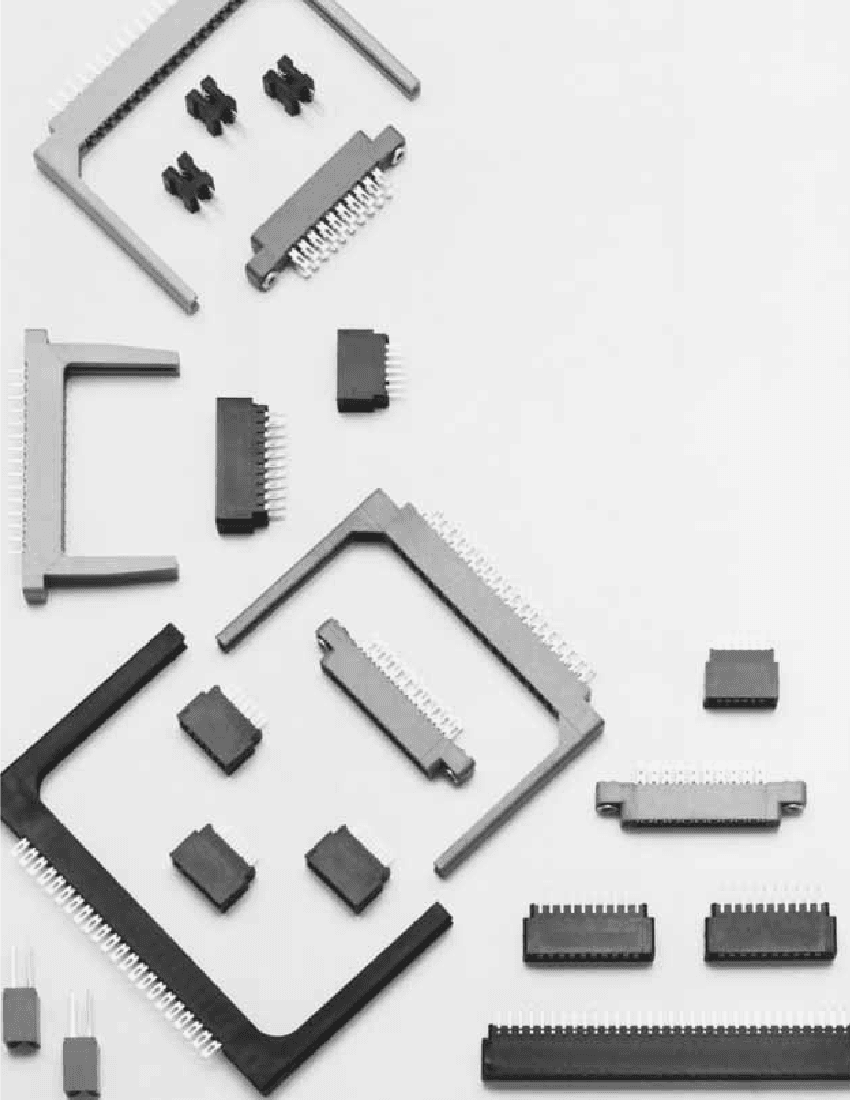

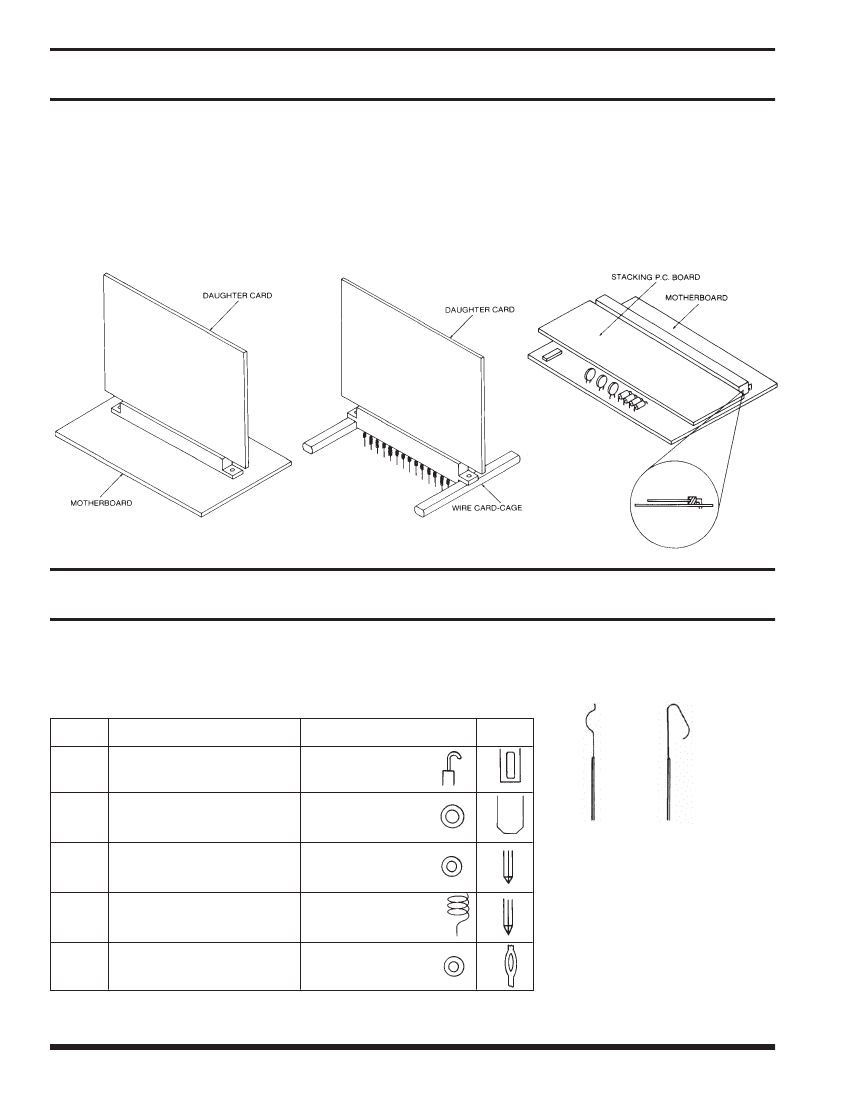

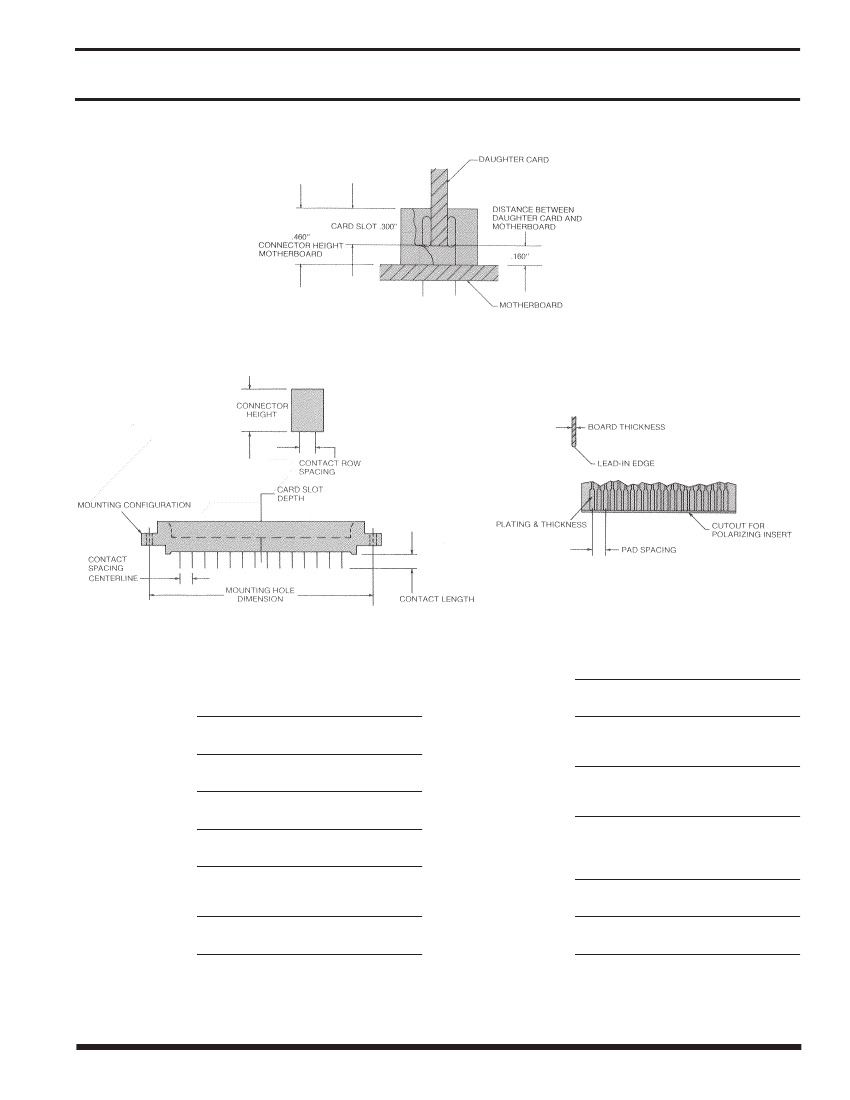

Card Edge Connector, 30 Contact(s), 2 Row(s), Straight, 0.156 inch Pitch, Wire Wrap Terminal, Locking, Receptacle
| Parameter Name | Attribute value |
| Maker | AVX |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Other features | STANDARD: MIL-C-21097 |
| Board mount options | HOLE .125-.137 |
| body width | 0.343 inch |
| subject depth | 0.46 inch |
| body length | 3.246 inch |
| Body/casing type | RECEPTACLE |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | GOLD (10) OVER NICKEL |
| Contact completed and terminated | GOLD (10) OVER NICKEL |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 6 mΩ |
| Contact style | BELLOWED TYPE |
| DIN compliance | NO |
| Dielectric withstand voltage | 2000VAC V |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 2.224 N |
| Insulation resistance | 25000000000 Ω |
| insulator material | GLASS FILLED DIALLYL PHTHALATE |
| JESD-609 code | e4 |
| MIL compliance | YES |
| Manufacturer's serial number | 6007 |
| Plug contact pitch | 0.156 inch |
| Match contact row spacing | 0.2 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation option 2 | FLUSH |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.08 mm |
| Plating thickness | 10u inch |
| Rated current (signal) | 5 A |
| reliability | COMMERCIAL |
| Terminal pitch | 3.96 mm |
| Termination type | WIRE WRAP |
| Total number of contacts | 30 |
| Evacuation force-minimum value | .278 N |
| Base Number Matches | 1 |
