Datasheet> All Categories > Discrete semiconductor> diode> UFT5010AE3

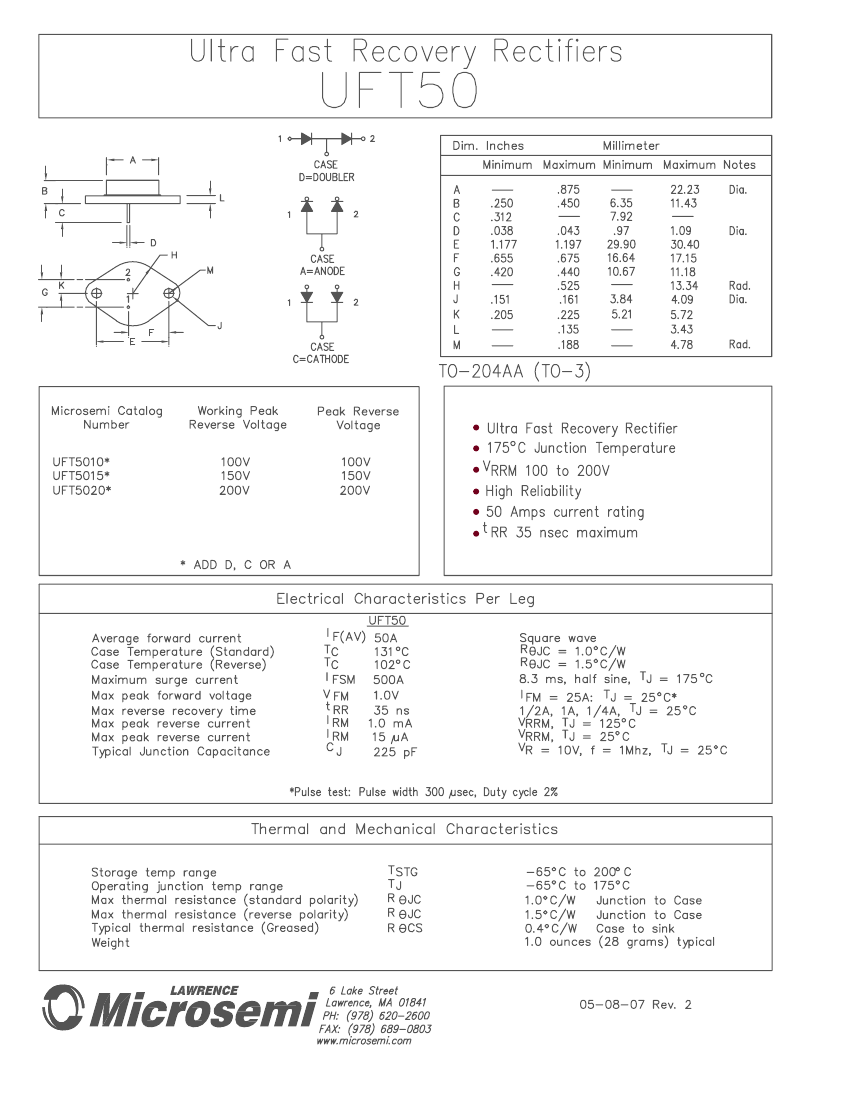

Preview

UFT5010AE3: DescriptionRectifier Diode, 1 Phase, 2 Element, 50A, 100V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN; CategoryDiscrete semiconductor diode; File Size132KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

UFT5010AE3 Overview

Rectifier Diode, 1 Phase, 2 Element, 50A, 100V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN

UFT5010AE3 Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	O-MBFM-P2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	ULTRA FAST RECOVERY
Shell connection	ANODE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	TO-204AA
JESD-30 code	O-MBFM-P2
Maximum non-repetitive peak forward current	500 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	50 A
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	PIN/PEG
Terminal location	BOTTOM

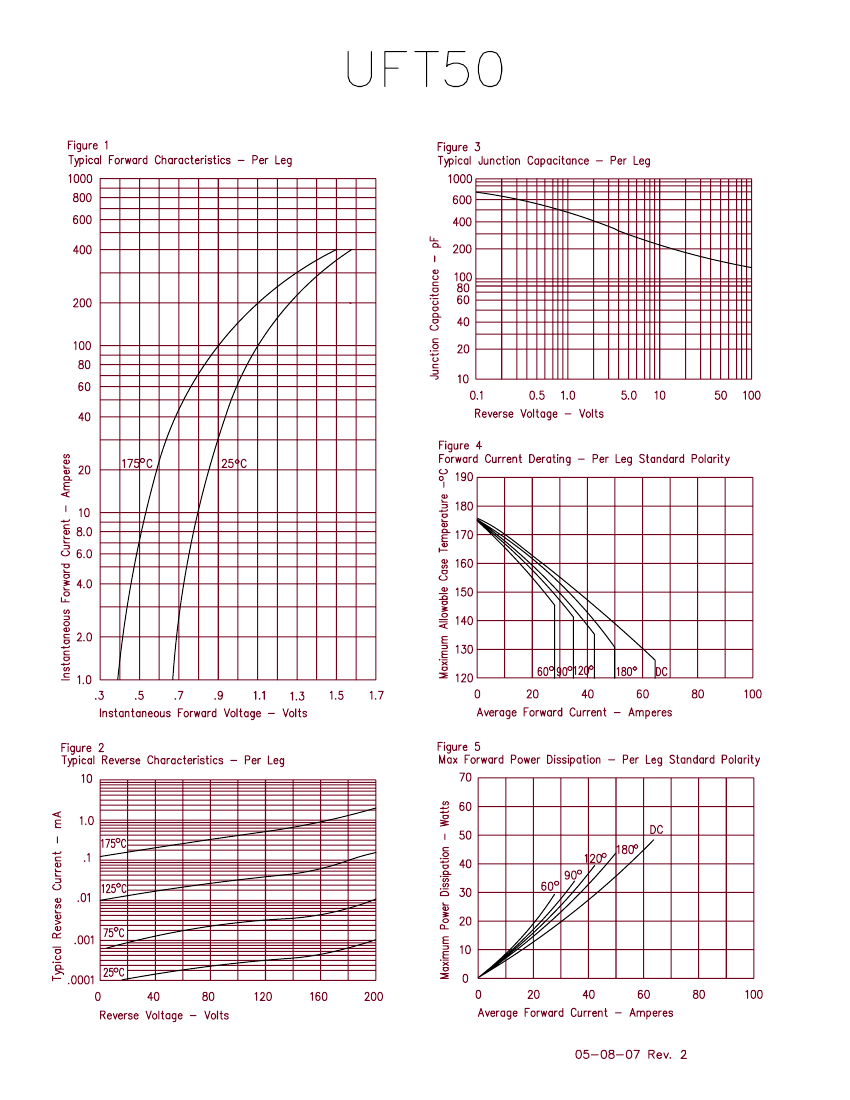

Preview

Download Datasheet

View All

UFT5010AE3 Related Products

	UFT5010AE3	UFT5010DE3	UFT5020CE3	UFT5020DE3	UFT5015C	UFT5015CE3	UFT5015DE3
Description	Rectifier Diode, 1 Phase, 2 Element, 50A, 100V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 50A, 100V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 50A, 200V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 50A, 200V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 50A, 150V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 50A, 150V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN	Rectifier Diode, 1 Phase, 2 Element, 50A, 150V V(RRM), Silicon, TO-204AA, TO-3, 2 PIN
package instruction	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
Reach Compliance Code	unknown	unknown	unknown	unknown	compliant	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	ANODE	ANODE AND CATHODE	CATHODE	ANODE AND CATHODE	CATHODE	CATHODE	ANODE AND CATHODE
Configuration	COMMON ANODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA	TO-204AA
JESD-30 code	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
Maximum non-repetitive peak forward current	500 A	500 A	500 A	500 A	500 A	500 A	500 A
Number of components	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	100 V	100 V	200 V	200 V	150 V	150 V	150 V
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maker	Microsemi	Microsemi	Microsemi	Microsemi	-	-	Microsemi
