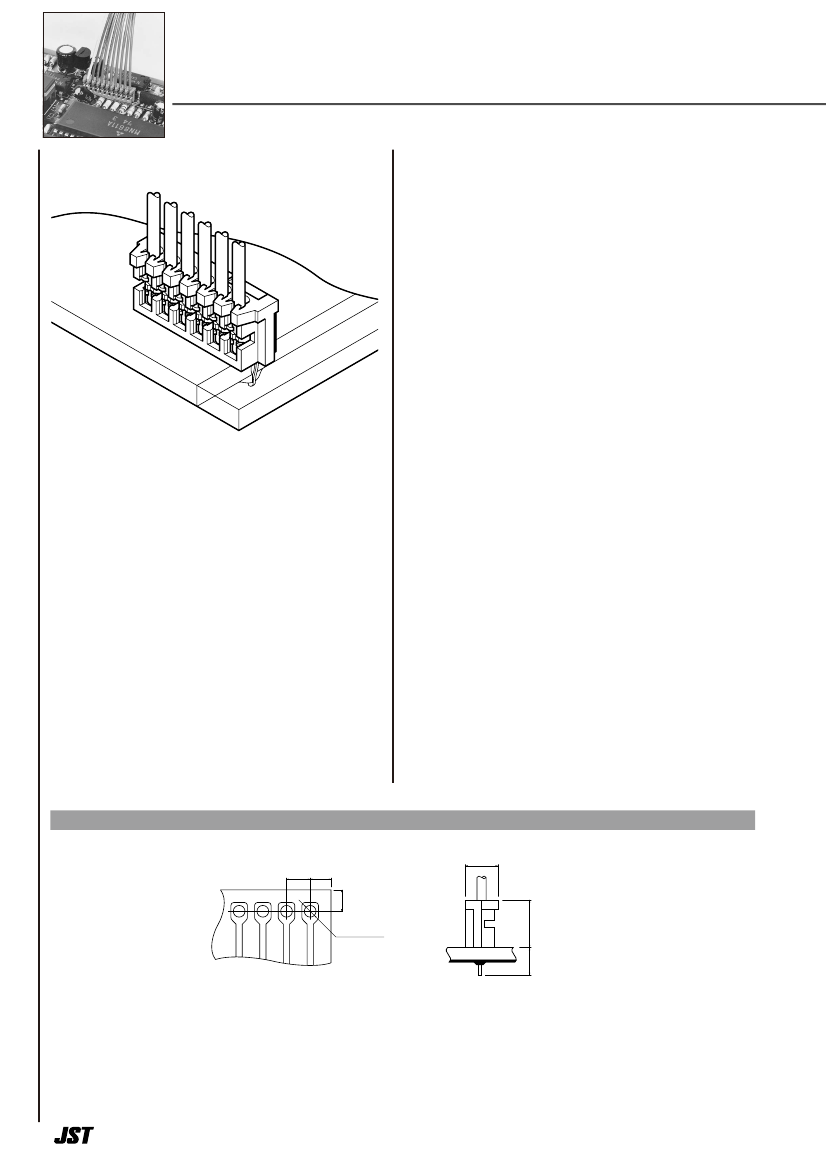

ZA
CONNECTOR
1.5mm pitch/Board-in Insulation displacement connectors
Specifications –––––––––––––––––––
• Current rating: 0.7A AC, DC (AWG #28)
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Insulation resistance:
500M
Ω
min.
• Withstanding voltage: 500V AC/minute
• Applicable wire: UL1571(Contact JST for details regarding other UL
styles.)
AWG #30, #28
(Contact JST if AWG #30 wire is to be used.)
Conductor/7 strands, tin-coated
Insulation O.D./0.7 to 0.8mm
(Contact JST for diameters greater than 0.8mm)
• Applicable PC board thickness: 0.6 to 1.2mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
This newly designed insulation displacement
board-in connector features twin slots provided at
the insulation displacement section. This is the
most important section of the insulation
displacement connector contact, and has an
insulation barrel located between the twin slots.
The insulation barrel firmly grips and secures the
wire during insulation displacement connection to
protect the insulation displacement section from
possible damage. Due to significant increases in
connection reliability, insulation displacement
connection has become possible with this 1.5mm
pitch board-in connector.
• Compact, direct mounting 1.5mm pitch
insulation displacement board-in connector
• Twin-slot insulation displacement section
• Insulation barrel construction
• 3-point grip construction
Standards ––––––––––––––––––––––
1
Certified LR20812
3.0
0
Recognized E60389
PC board layout (viewed from soldering side) and Assembly layout
1.5
±0.05
1.5
min
1.4
min
2 circuits:
φ0.6
＋0
−0.05
3 to 13 circuits:
φ0.7
±0.03
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing
method. The dimensions above should serve as a guideline.
Contact JST for details.
3. Pulling or otherwise putting a strain on the harness attached to the connector
before the solder has completely cooled can dislodge the connector or cause
its misalignment.
4. Do not reuse connectors that were previously soldered and then removed
from a PC board.
1
2.5
4.3
ZA CONNECTOR
Connector
Circuits
2
3
4
A
1.5
1.5
4.3
（2.5）
5
6
7
3.0
8
1.3
2.7
9
10
11
12
13
JST
B
Model No.
AWG #28(green)
AWG #30(natural/gray)
02ZA-8M
02ZA-3H
03ZA-8M
03ZA-3H
04ZA-8M
04ZA-3H
05ZA-8M
05ZA-3H
06ZA-8M
06ZA-3H
07ZA-8M
07ZA-3H
08ZA-8M
08ZA-3H
09ZA-8M
09ZA-3H
10ZA-8M
10ZA-3H
11ZA-8M
11ZA-3H
12ZA-8M
12ZA-3H
13ZA-8M
13ZA-3H
Material and Finish
Dimensions (mm) Q'ty /
box
A
B
1.5
3.0
4.5
6.0
7.5
9.0
10.5
12.0
13.5
15.0
16.5
18.0
4.5
6.0
7.5
9.0
10.5
12.0
13.5
15.0
16.5
18.0
19.5
21.0
2,000
2,000
2,000
2,000
2,000
1,000
1,000
1,000
1,000
1,000
1,000
500
Contact: Phosphor bronze, copper-undercoated, tin-plated (reflow treatment)
Housing: Glass-filled PA 66, UL94V-0
RoHS compliance
This product displays (LF)(SN) on a label.
Note: Contact JST if AWG #30 wire is to be used.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
02ZA-3H-
H…gray [standard color for AWG#30]
M…green [standard color for AWG#28]
2
