P3C1024L55SI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> P3C1024L55SI

P3C1024L55SI: DescriptionULTRA LOW POWER 128K x 8 CMOS STATIC RAM; Categorystorage storage; File Size114KB，10 Pages; ManufacturerPyramid Semiconductor Corporation; Websitehttp://www.pyramidsemiconductor.com/

Download Datasheet Parametric Compare View All

P3C1024L55SI Overview

ULTRA LOW POWER 128K x 8 CMOS STATIC RAM

P3C1024L55SI Parametric

Parameter Name	Attribute value
Maker	Pyramid Semiconductor Corporation
package instruction	,
Reach Compliance Code	unknow
Memory IC Type	STANDARD SRAM
Base Number Matches	1

Preview

Download Datasheet

View All

P3C1024L

ULTRA LOW POWER 128K x 8

CMOS STATIC RAM

FEATURES

Current (Commercial/Industrial)

— Operating: 10mA/12mA

— CMOS Standby: 10µA/10µA

Access Times

—55/70 (Commercial or Industrial)

Single 3.3 Volts ± 0.3V Power Supply

Easy Memory Expansion Using

and

Inputs

Common Data I/O

Three-State Outputs

Fully TTL Compatible Inputs and Outputs

Advanced CMOS Technology

Automatic Power Down

Packages

—32-Pin 445 mil SOP

—32-Pin TSOP

DESCRIPTION

The P3C1024L is a 1,048,576-bit low power CMOS static

RAM organized as 128Kx8. The CMOS memory re-

quires no clocks or refreshing, and has equal access

and cycle times. Inputs are fully TTL-compatible. The

RAM operates from a single 3.3V ± 0.3V tolerance power

supply.

Access times of 55 ns and 70 ns are availale. CMOS is

utilized to reduce power consumption to a low level.

The P3C1024L device provides asynchronous opera-

tion with matching access and cycle times. Memory

locations are specified on address pins A

to A

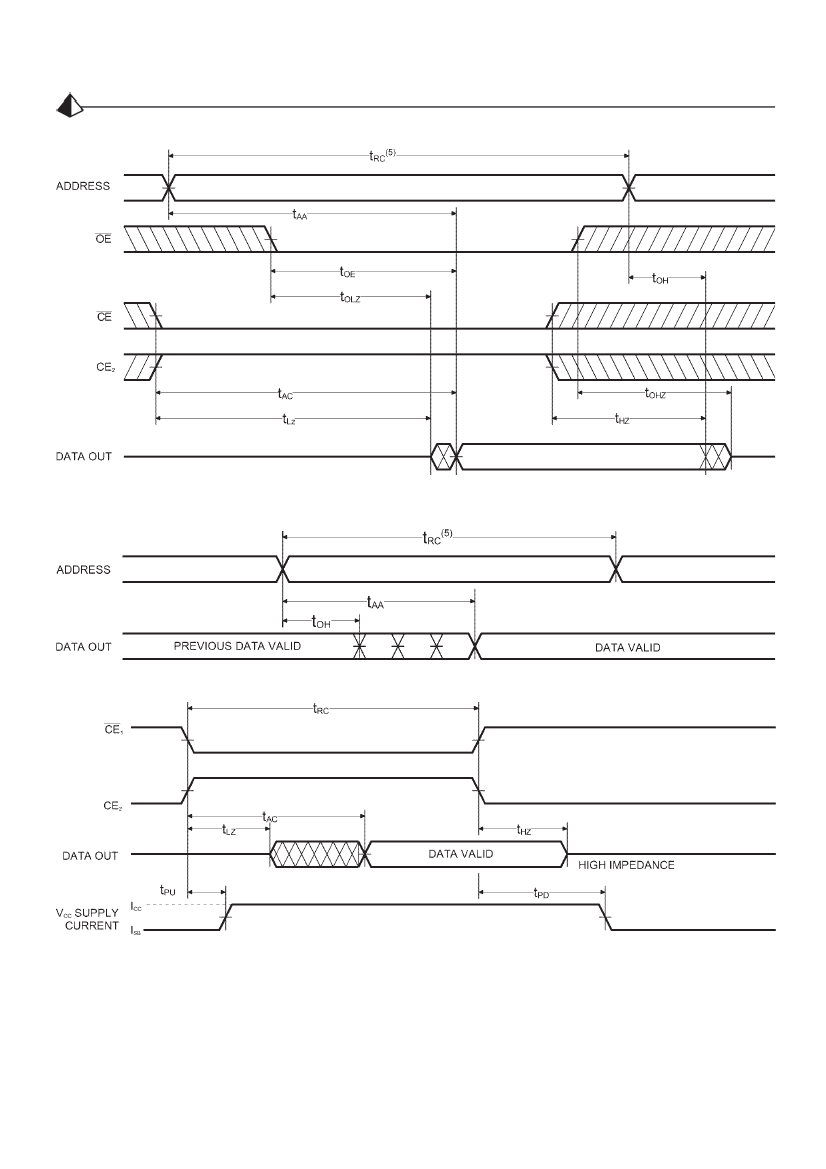

. Read-

ing is accomplished by device selection (CE

low and

high) and output enabling (OE) while write enable

(WE) remains HIGH. By presenting the address under

these conditions, the data in the addressed memory lo-

cation is presented on the data input/output pins. The

input/output pins stay in the HIGH Z state when either

is HIGH or

or CE

is LOW.

The P3C1024L is packaged in a 32-pin TSOP and 445

mil SOP.

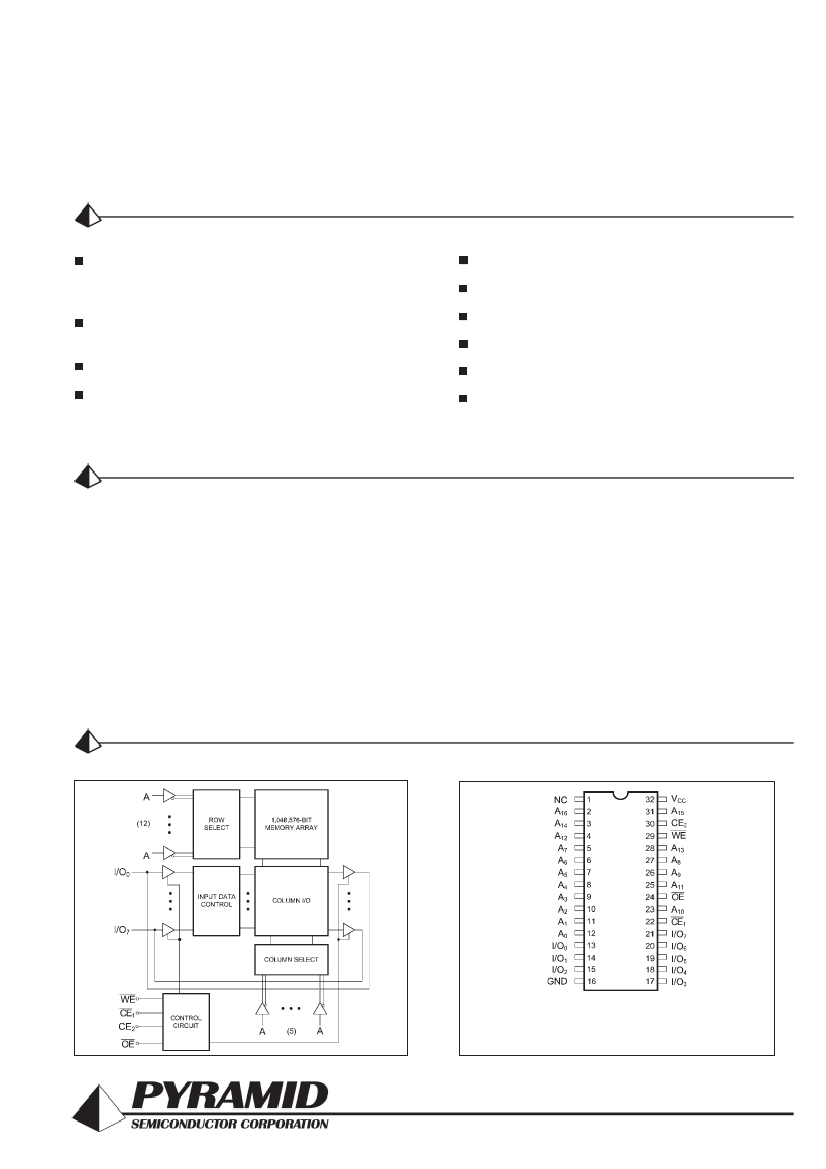

FUNCTIONAL BLOCK DIAGRAM

PIN CONFIGURATION

SOP (S12)

TOP VIEW

See end of datasheet for TSOP pin configuration.

Document #

SRAM132

REV OR

Revised April 2006
