007008035141002 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 007008035141002

007008035141002: DescriptionBoard Connector, 35 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,; CategoryThe connector The connector; File Size117KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

007008035141002 Overview

Board Connector, 35 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,

007008035141002 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	POLARIZED, STAGGERED CONFIGARATION
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (100)
Contact completed and terminated	GOLD (10) OVER NICKEL (100)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	7008
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	35
Base Number Matches	1

Preview

Download Datasheet

View All

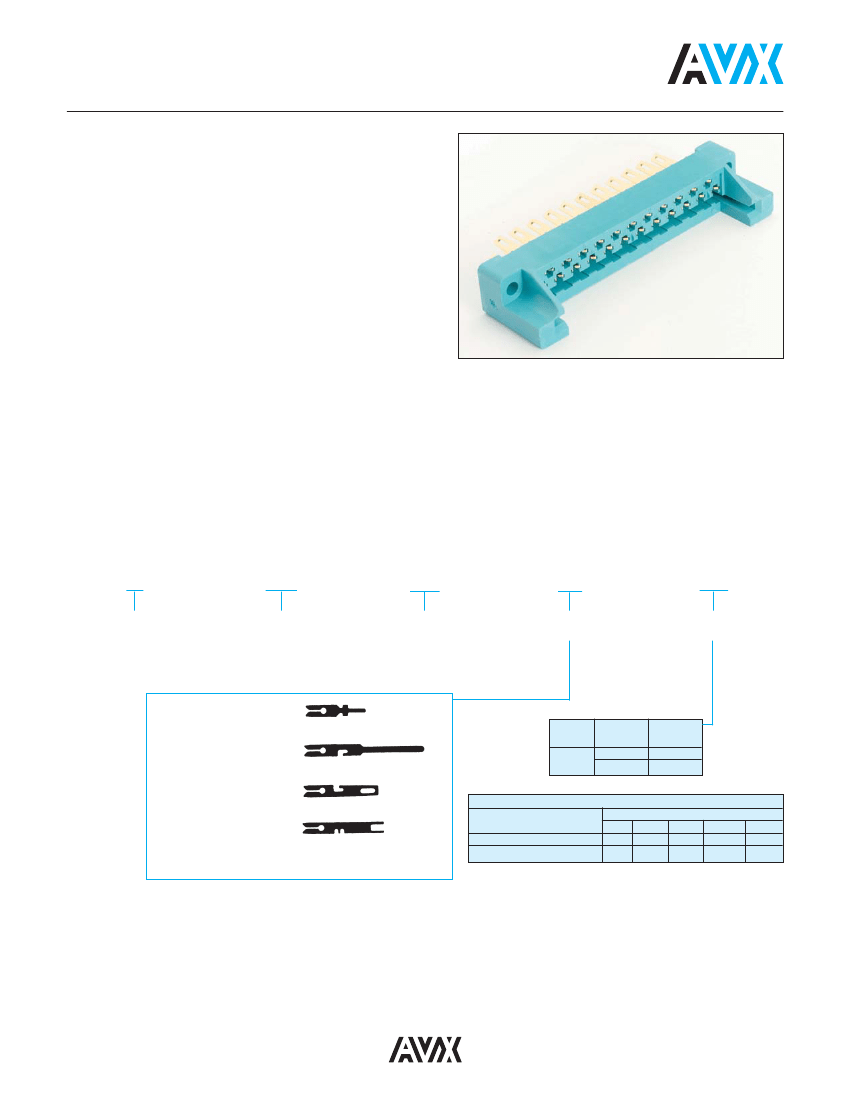

Varicon

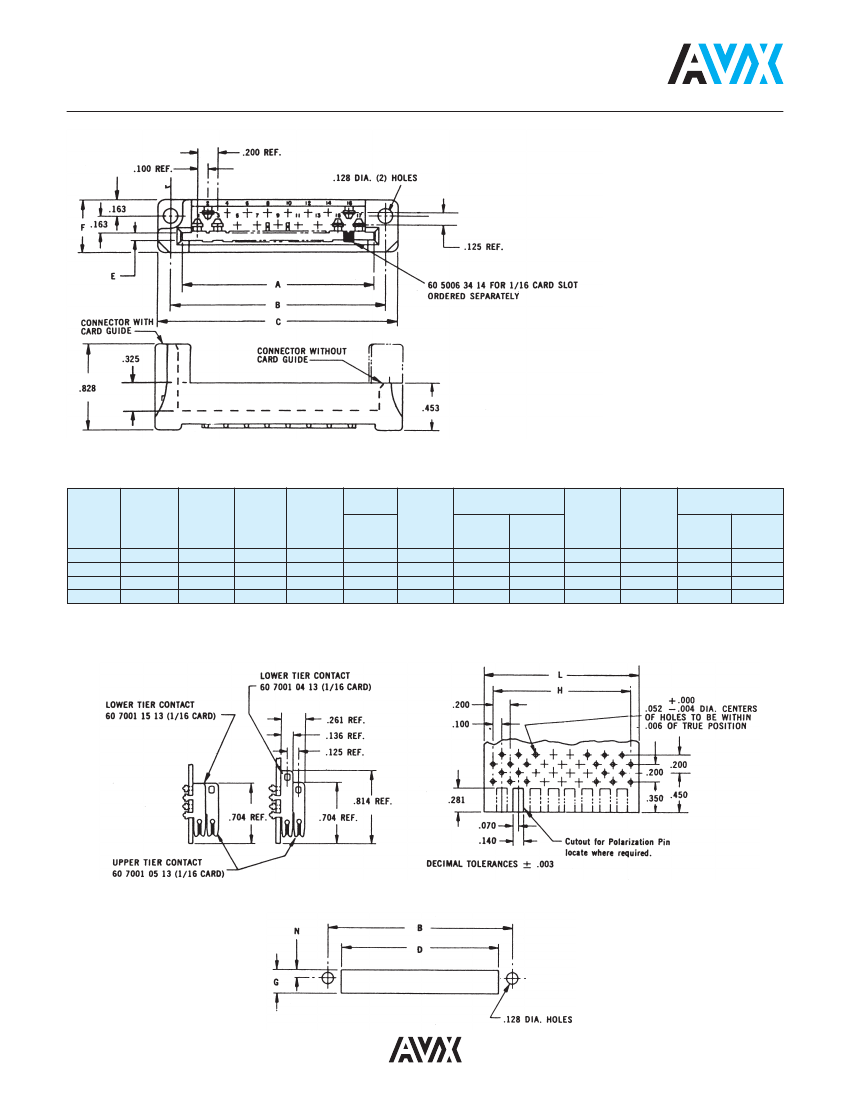

Series 7008 – 0.100" Staggered Dual Row

FEATURES

•

Available with or without card guides

•

Sizes 17, 23, 29, 35, 41

•

Wide range of contact terminations

•

For

⁄

" thick PCB

•

Polarization insert

•

Mates with Series 7000 and 7022 Plugs

TECHNICAL SPECIFICATIONS

Current Rating:

10 amperes

Contact Resistance:

6 milliohms, maximum

Contact Material and Plating:

Phosphor Bronze per QQ-B-750,

Composition A.

Gold, 10 microinches minimum,

over nickel, 30 to 100 microinches

Insulator Material:

Diallyl phthalate, glass-filled,

flame resistant, per MIL-M-14F,

Type SDGF.

Insulation Resistance:

25,000 megohms, minimum

Dielectric Withstanding Voltage:

Sea Level: 2000 Volts rms

3.4" Hg:

675 Volts rms

Insertion/Withdrawal Force:

2 to 16 ounces per contact

Operating Temperature:

-40ºC to +125ºC

ORDERING CODE

7008

017

Number of Contacts

017, 023, 029, 035, 041

146

Contact Code

See table.

001

Variation Code

See table.

141 = 60 7001 06 33

P.C. Termination for 1/8" Card

156 = 60 7001 18 13

Wire wrapping (.026 x .062 x .600")

163 = 60 7001 19 13

.098" Base Taper Tab w/Wire Hole

166 = 60 7001 20 23

Dual Solder Termination for 2 Wires or Bus Line

(.056 x .125" Slot)

Card

Slot

1/16"

Card

Guides

Yes

Code

001

002

Connector

Description

With Guides – for 1/16" Card

Without Guides – for 1/16" Card

Availability

No. of Contacts
