0717-1-PLS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0717-1-PLS

0717-1-PLS: DescriptionMains Power Connector, 10A, 250VAC, Male, Solder Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/

Download Datasheet Parametric View All

0717-1-PLS Overview

Mains Power Connector, 10A, 250VAC, Male, Solder Terminal, Receptacle, ROHS COMPLIANT

0717-1-PLS Parametric

Parameter Name	Attribute value
Maker	BULGIN
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: IEC 320; UL; CSA; VDE
Body/casing type	RECEPTACLE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Manufacturer's serial number	0717
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

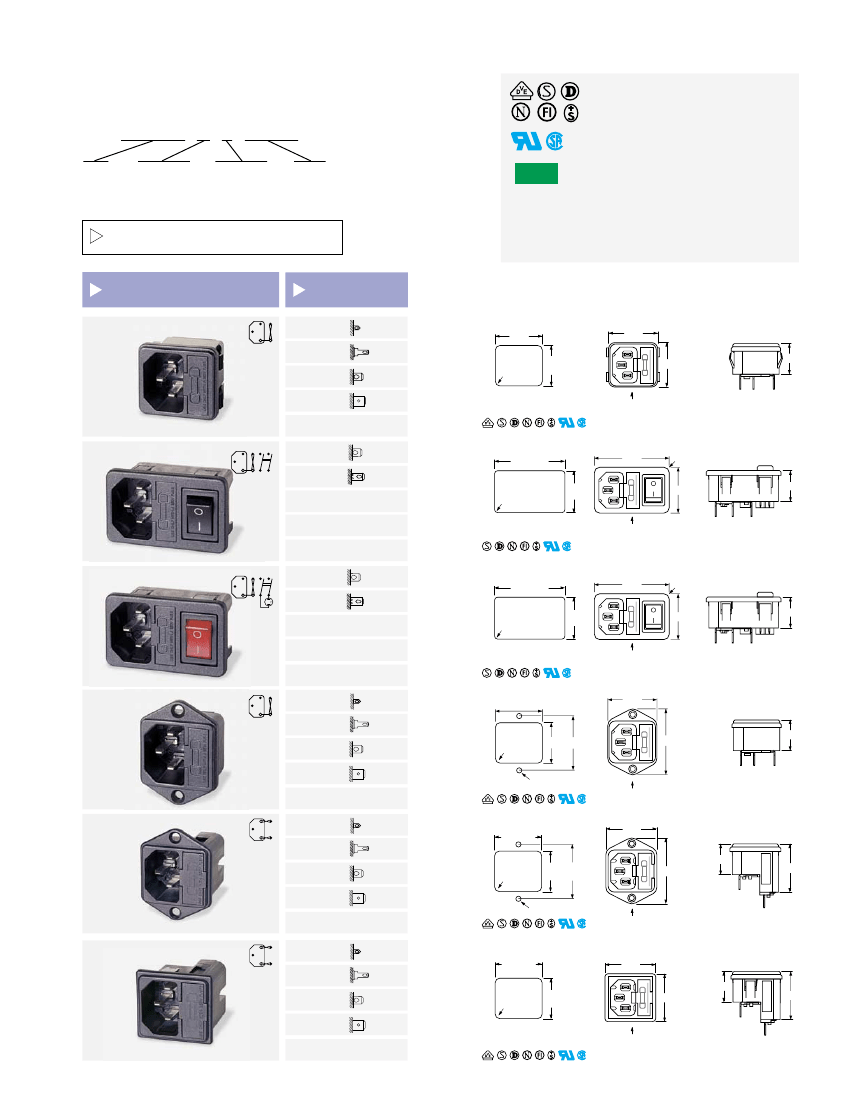

IEC Connectors & NEMA Receptacles

Ratings up to 10A,

250V ac

10A 250V ac

0717-1S Q T 1.0mm

TYPE

TERMINAL

(connector)

TERMINAL

(switch)

PANEL

thickness

IEC 320 Inlets & outlets

Fused and non fused

Flange and snap to

panel fixing

UL CSA 10A 250V ac UL 65ºC

RoHS

RoHS compliant

To order:

State type number, connector terminal code, switch

terminal code (if applicable), and for snap-in items, the

panel thickness. Stocked items are for 1.0mm panels.

ORDER FORMAT

TYPE

0717-1-P

TERMINAL

2.5 Solder

2.8 Solder

4.8 Tab

6.3 Tab

Fused Inlet 5x20

Panel

thickness

0.8 - 1.2 31.4

1.3 - 2.0 31.6

10A 250Vac

4b 2a

DIMENSIONS

(mm)

View below is at Y

27.0

R2.0 +0 27.2

-2.0

33.0

20.6

30.0

0717-1S State “Non Lit”

4.8 Solder

Connector

Switch

DP non-illuminated switch is standard

46.9/47.1

50.0

R3.0

20.7

3b 1a

Panel thickness:

0.8 or 1.0 or 1.2

Call factory

for details

R2.0 +0

-2.0

27.9

28.1

30.5

Switched Fused Inlet 5x20

10A 250Vac

4b 2a

0717-1S State “Lit”

4.8 Solder

Connector

Switch

DP illuminated switch is standard

46.9/47.1

50.0

R3.0

20.7

3b 1a

Panel thickness:

0.8 or 1.0 or 1.2

Call factory

for details

R2.0 +0

-2.0

27.9

28.1

30.5

Switched Fused Inlet 5x20

10A 250Vac

0717-C

2.5 Solder

2.8 Solder

4.8 Tab

6.3 Tab

31.4

33.0

R2.0 +0

-2.0

27.0 36.0

44.0

20.6

O3.5

Fused Inlet 5x20

10A 250Vac

0717-2-C

2.5 Solder

2.8 Solder

0717-2-C For applications (eg medical equipment) where both live & neutral feeds must be fused

34.0

31.3/31.5

20.7

4.8 Tab

6.3 Tab

R2.0 +0

-2.0

27.3 25.7

27.5 36.3

44.0

32.2

O3.5

Double Fused Inlet 5x20

10A 250Vac

0717-2-P

2.5 Solder

2.8 Solder

4.8 Tab

6.3 Tab

0717-2-P For applications (eg medical equipment) where both live & neutral feeds must be fused

31.3/31.5

34.0

20.7

R2.0 +0

-2.0

27.3

27.5

32.0

32.2

Panel thickness:

0.8 or 1.0

or 1.2 or 1.5

Call factory

for details

10A 250Vac

Double Fused Inlet 5x20
