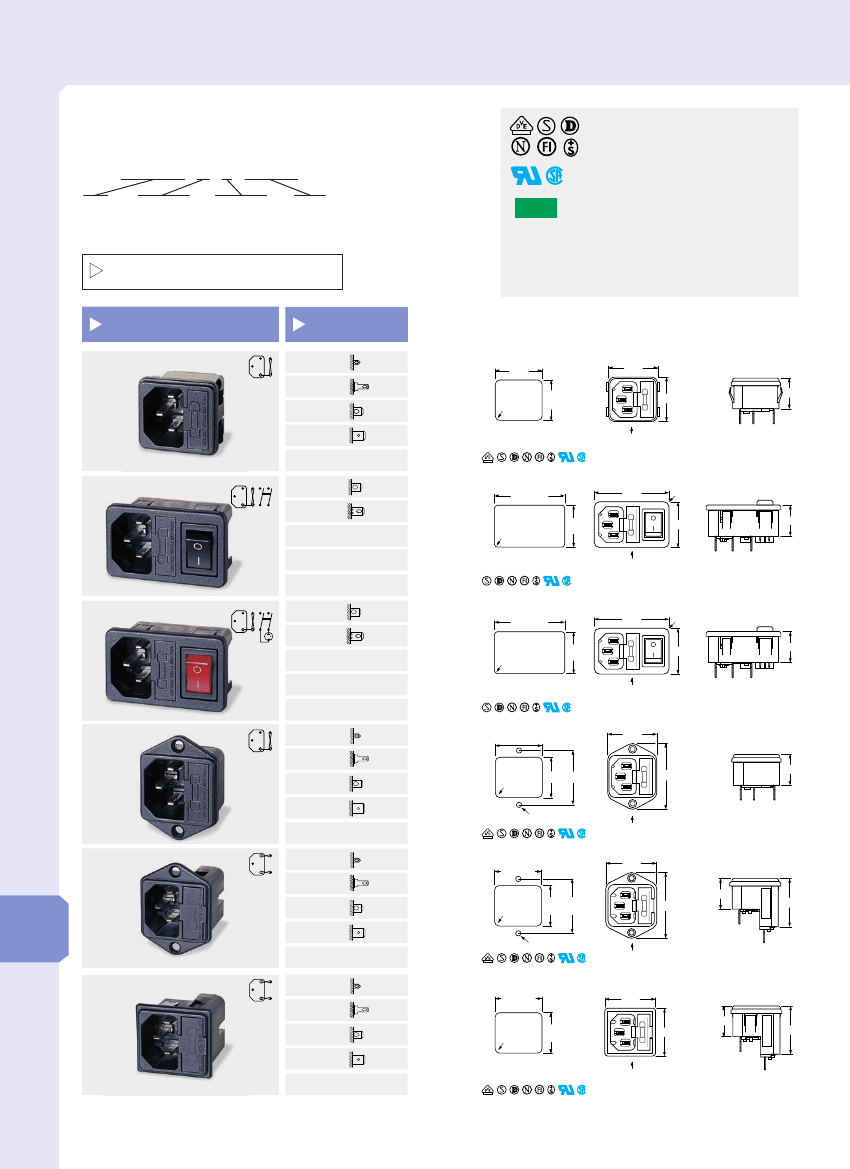

IEC Connectors & NEMA Receptacles
10A 250V ac
Ratings up to 10A,
250V ac
IEC 320 Inlets & outlets
NEMA outlets
Fused and non fused
TYPE
Flange and snap fit
panel mounting
UL CSA 10A 250V ac UL 65ºC
0711-1S LS K 1.0mm
TERMINAL
(connector)
TERMINAL
(switch)
PANEL
thickness
RoHS
RoHS compliant
To order:
State Type number and terminal codes. All items supplied
for 1.0mm panel thickness as standard. Contact factory
for additional options.
ORDER FORMAT
TYPE
0707-1-C
S
N
Q
W
Inlet
TERMINAL
2.5 Solder
4.0 Solder
4.8 Tab
6.3 Tab
15A 250Vac
10A 250Vac
DIMENSIONS
(mm)
2
19.8
View below is at Y
22.5
R3
27.4 40.0
50.0
20.6
Ø3.5
Y
0708-1-C
N
Q
W
P
4.0 Solder
4.8 Tab
6.3 Tab
PCB
15A 250Vac
10A 250Vac
29.0
24.2
R3
32.4 40.0
50.0
25.0
Ø3.5
P
Outlet
Y
0709-P
L
Q
4.0 Solder
4.8 Tab
2
Panel
thickness
0.8
1.0
1.2
1.6
X
24.0
24.6
25.2
26.2
22.3
9.0
10.3
18.2 X
27.0
27.0
24.0
8
Y
2
Outlet
15A 250Vac
P
0710-P
V12
Solid Wire
V16
Solid Wire
Panel
X
thickness
0.8 - 1.2 24.6
1.3 - 2.0 24.8
X
24.6
27.0
30.5
5
27.0
Y
Outlet
0710-PV16
is 13A 250Vac.
0710-PV12
is 15A 250Vac
3
0711-P
S
N
Q
W
2.5 Solder
4.0 Solder
4.8 Tab
6.3 Tab
Rating/approval details on request
Panel
X
thickness
0.8 - 1.2 20.3
1.3 - 2.0 20.5
15A 250Vac
10A 250Vac
X
26.7
24.0
IEC
sockets
R2
31.0
20.8
Y
Inlet
Phone: 760-343-3650 •
Arcolectric
• Email: americas@elektron-technology.com
81

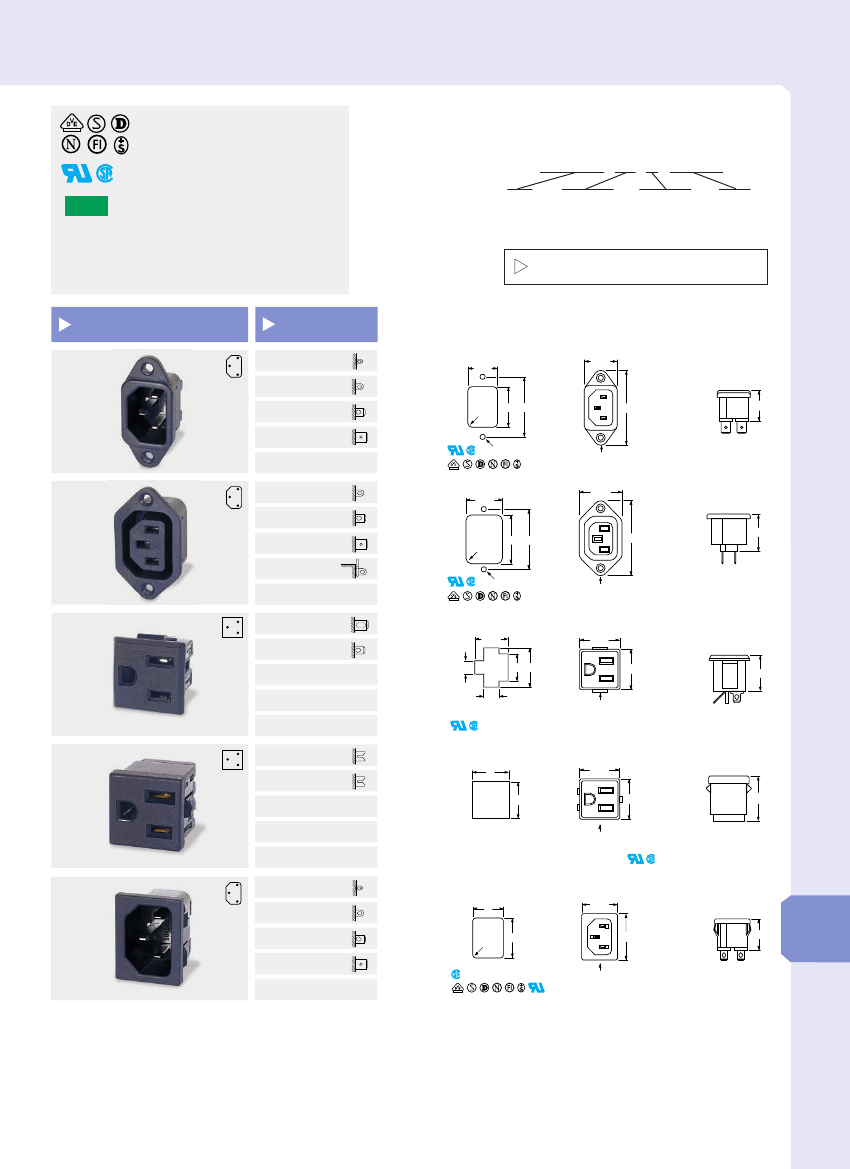

IEC Connectors & NEMA Receptacles
Ratings up to 10A,
250V ac
IEC 320 Inlets & outlets
10A 250V ac
0717-1S Q T 1.0mm
TYPE
TERMINAL
(connector)
TERMINAL
(switch)
PANEL
thickness
Fused and non fused
Flange and snap in
panel mounting
UL CSA 10A 250V ac UL 65ºC
RoHS
RoHS compliant
To order:
State Type number and terminal codes. All items supplied
for 1.0mm panel thickness as standard. Contact factory
for additional options.
3
ORDER FORMAT
TYPE
0717-1-P
TERMINAL
S
2.5 Solder
LS
2.8 Solder
Q
4.8 Tab
W
6.3 Tab
Fused Inlet 5x20
Panel
X
thickness
0.8 - 1.2 31.4
1.3 - 2.0 31.6
10A 250Vac
4b 2a
DIMENSIONS
(mm)
View below is at Y
X
27.0
R2.0 +0 27.2
-2.0
33.0
20.6
30.0
2
Y
R
0717-1S State “Non Lit”
Q
4.8 Solder
T
4.8 Solder
Connector
Switch
DP non-illuminated switch is standard
46.9/47.1
50.0
R3.0
20.7
3b 1a
Panel thickness:
1.0mm standard
Call sales
for options
R2.0 +0
-2.0
P
27.9
28.1
30.5
Y
R
Switched Fused Inlet 5x20
10A 250Vac
4b 2a
0717-1S State “Lit”
Vi
f
Q
4.8 Solder
T
4.8 Solder
Connector
Switch
DP illuminated switch is standard
46.9/47.1
50.0
R3.0
20.7
3b 1a
f
Panel thickness:
0.8 or 1.0 or 1.2
Call sales
for details
P
R2.0 +0
-2.0
27.9
28.1
30.5
Y
Switched Fused Inlet 5x20
10A 250Vac
0717-C
S
2.5 Solder
LS
2.8 Solder
Q
4.8 Tab
W
6.3 Tab
31.4
33.0
R2.0 +0
-2.0
27.0 36.0
44.0
20.6
/
O3.5
Y
Fused Inlet 5x20
10A 250Vac
2
34.0
31.3/31.5
0717-2-C
S
2.5 Solder
LS
2.8 Solder
0717-2-C For applications (eg medical equipment) where both live & neutral feeds must be fused
20.7
IEC
sockets
Q
4.8 Tab
W
6.3 Tab
R2.0 +0
-2.0
27.3 25.7
27.5 36.3
44.0
32.2
/
O3.5
Double Fused Inlet 5x20
10A 250Vac
Y
0717-2-P
S
2.5 Solder
LS
2.8 Solder
Q
4.8 Tab
W
6.3 Tab
0717-2-P For applications (eg medical equipment) where both live & neutral feeds must be fused
31.3/31.5
34.0
20.7
R2.0 +0
-2.0
27.3
27.5
32.0
32.2
Panel thickness:
1.0mm standard
Call sales
for options
10A 250Vac
Y
Double Fused Inlet 5x20
3
82
Phone: 760-343-3650 •
Arcolectric
• Email: americas@elektron-technology.com

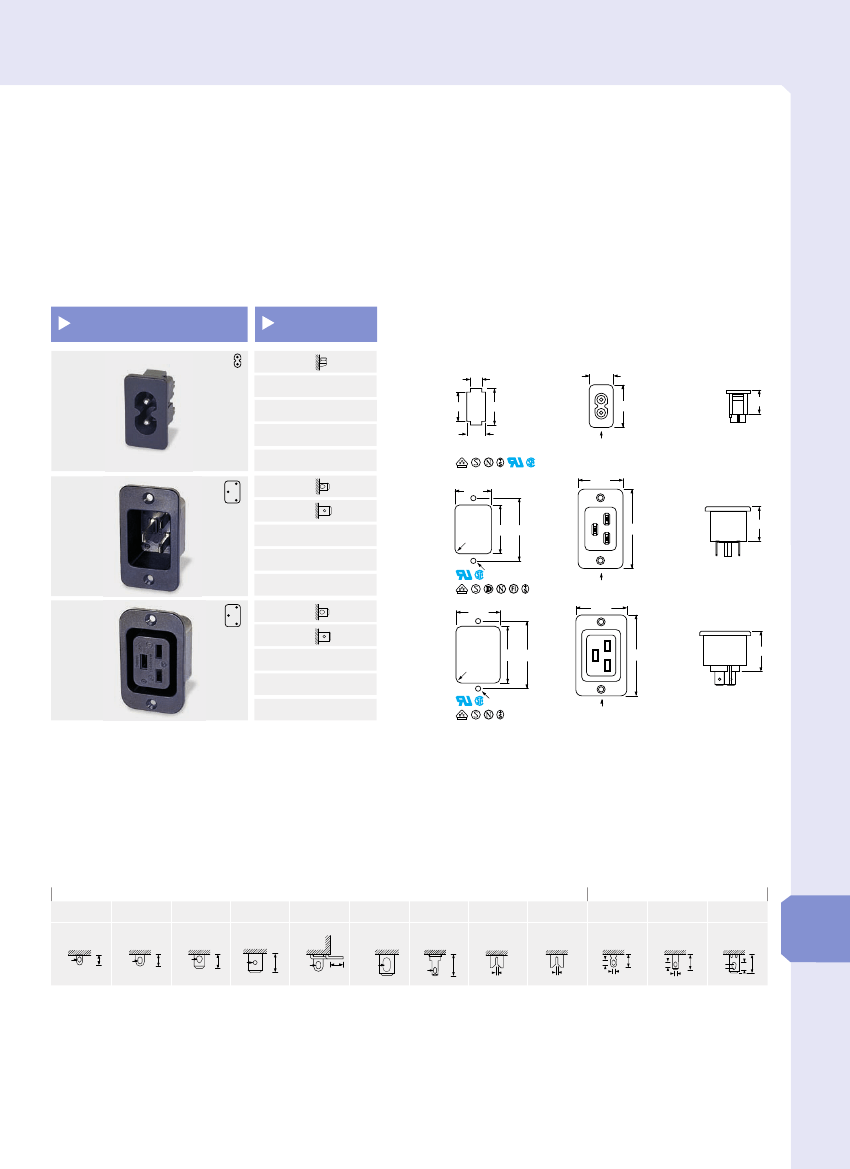

TYPE
0721-P
S
Solder
TERMINAL
P
DIMENSIONS
(mm)
View below is at Y
7.5
16.0
16.0
Panel
thickness
0.8 - 1.3
19.5
12.5
24.5
28.2
Y
Inlet
2.5A 250Vac
0722-C
Vi
f
Q
W
4.8 Solder
6.3 Tab
30.0
24.5
32.6 42.0
R3
53.0
23.0
Inlet
20A 125Vac
16A 250Vac
Ø3.5
Y
29.5
34.0
0723-C
Q
W
4.8 Solder
6.3 Tab
37.6 45.0
R3
54.0
27.0
Outlet
20A 125Vac
16A 250Vac
Ø3.5
Y
Technical data
Mouldings V2 (V0 option)
Connectors Tin plated solid brass
Terminals Silver plated
Terminal dimensions
For Connectors
Slide
For Switches
Slide
Rocker
S
2.5mm Solder
1.5x2.5
4.5
N
4mm Solder
2.0x3.2
5.5
Q
4.8mm Solder/
Fast on
2.8x3.3
6.5
W
6.3 Fast on
Ø1.7
P
PCB
L
Solder
LS
2.8mm Solder
V12
12-14 AWG
Solid Wire
V16
16 AWG
Solid Wire
T
Solder
6.0*
1.6
K
2.8mm Solder
7.0*
1.3
T
4.8mm Solder
IEC
sockets
8.0
1.7x3.0
5.5
Ø3.0x6.0
1.5x3.0
10.0
1.35
0.8
2.6
2.0
R1.0
R0.8
3.5 8.5
Note: Designated solder terminals should not be fitted with “Push on”, “QD” or “Fast on” type cable connectors
Phone: 760-343-3650 •
Arcolectric
• Email: americas@elektron-technology.com
83
