P370KH08EN0 datasheet, PDF - EEWORLD Datasheet

P370KH08EN0: DescriptionSilicon Controlled Rectifier, 550000mA I(T), 800V V(DRM),; CategoryAnalog mixed-signal IC Trigger device; File Size724KB，6 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

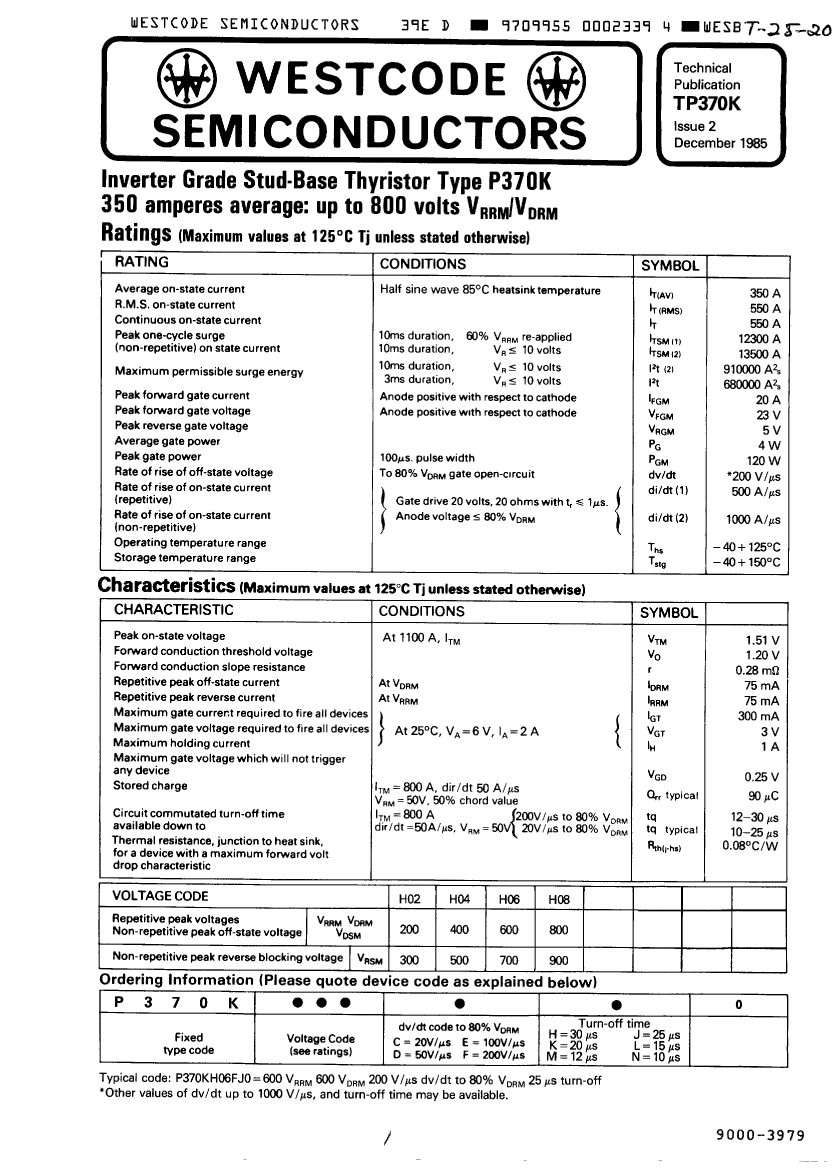

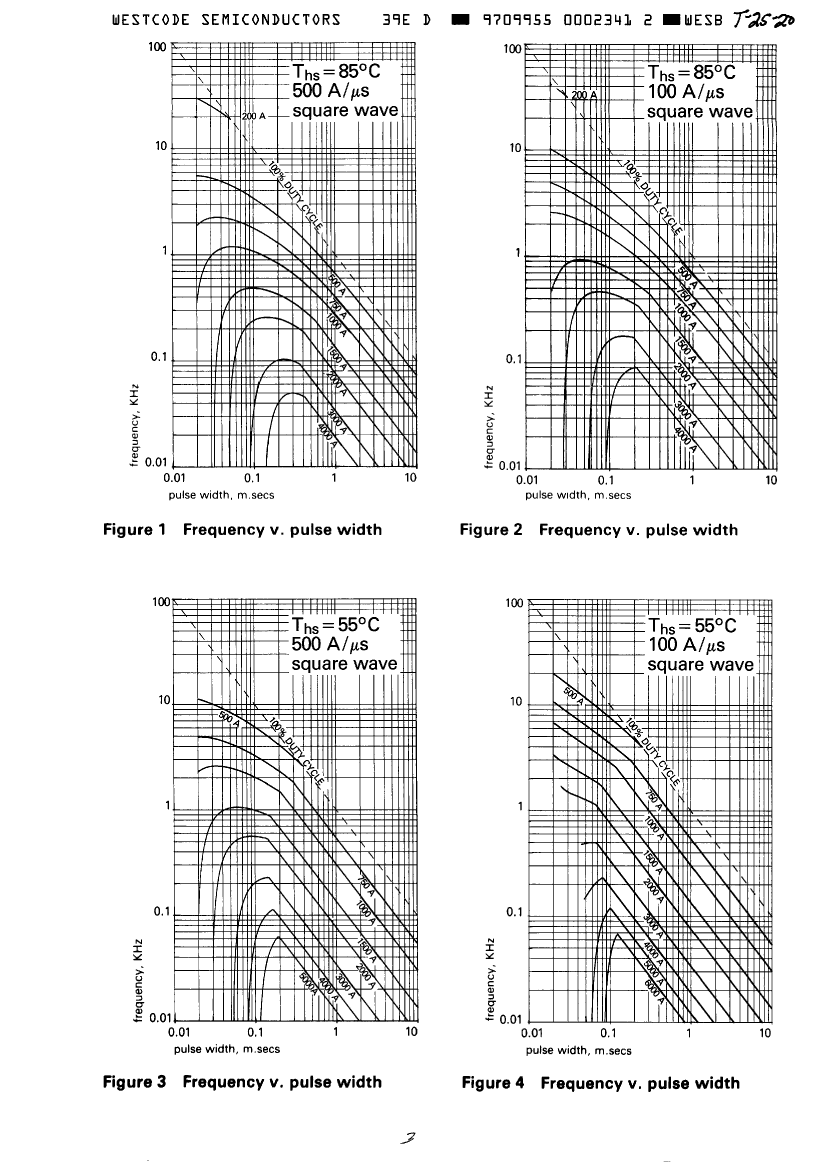

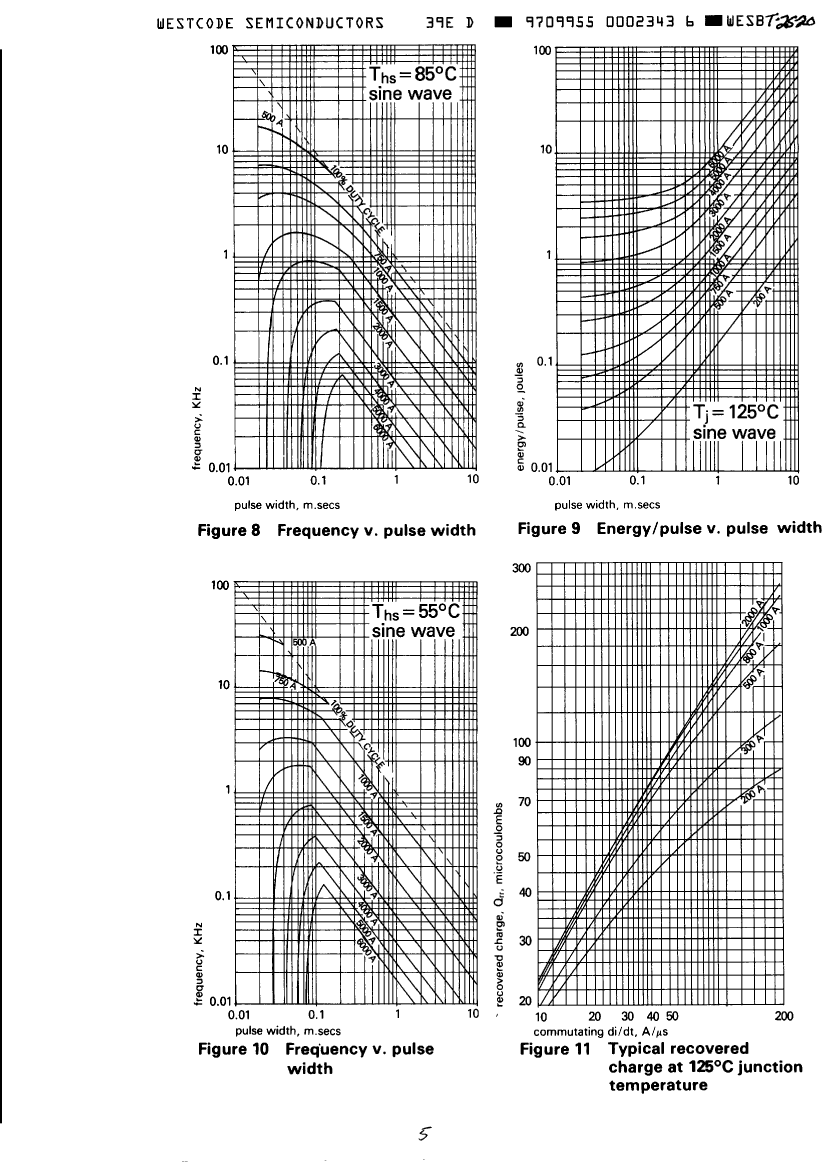

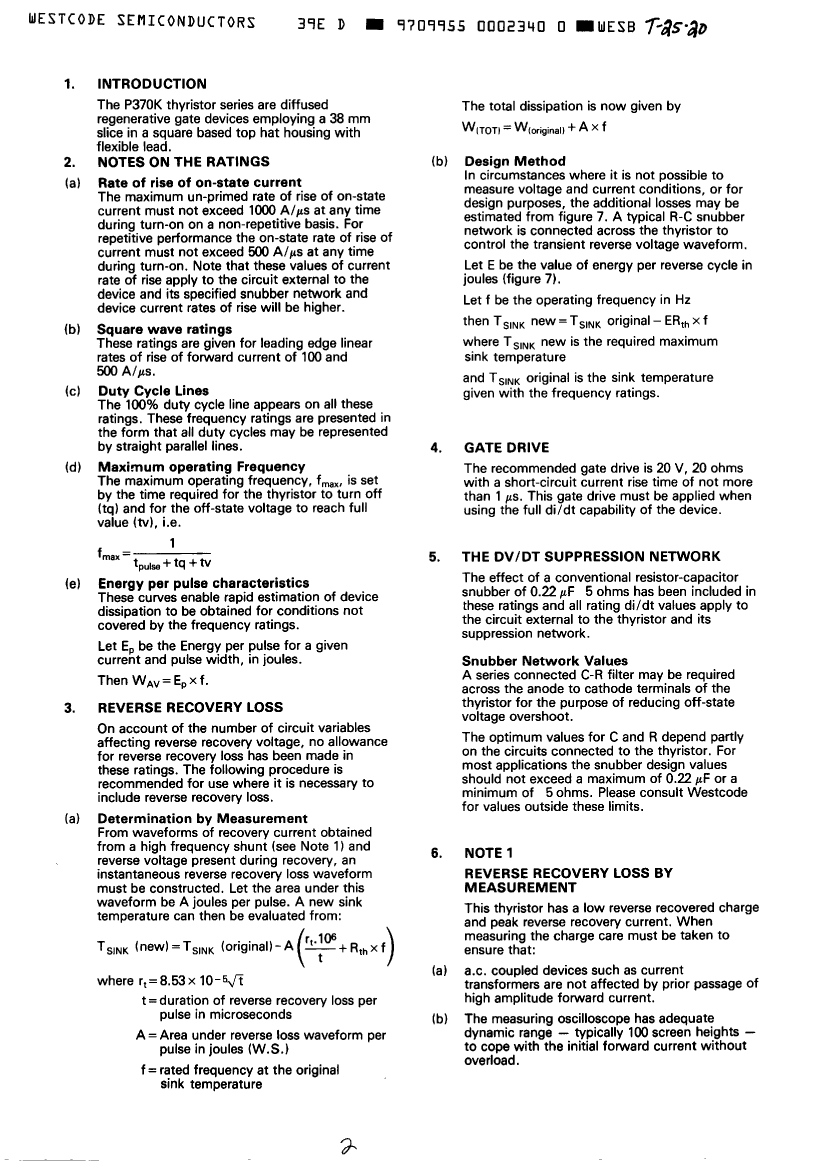

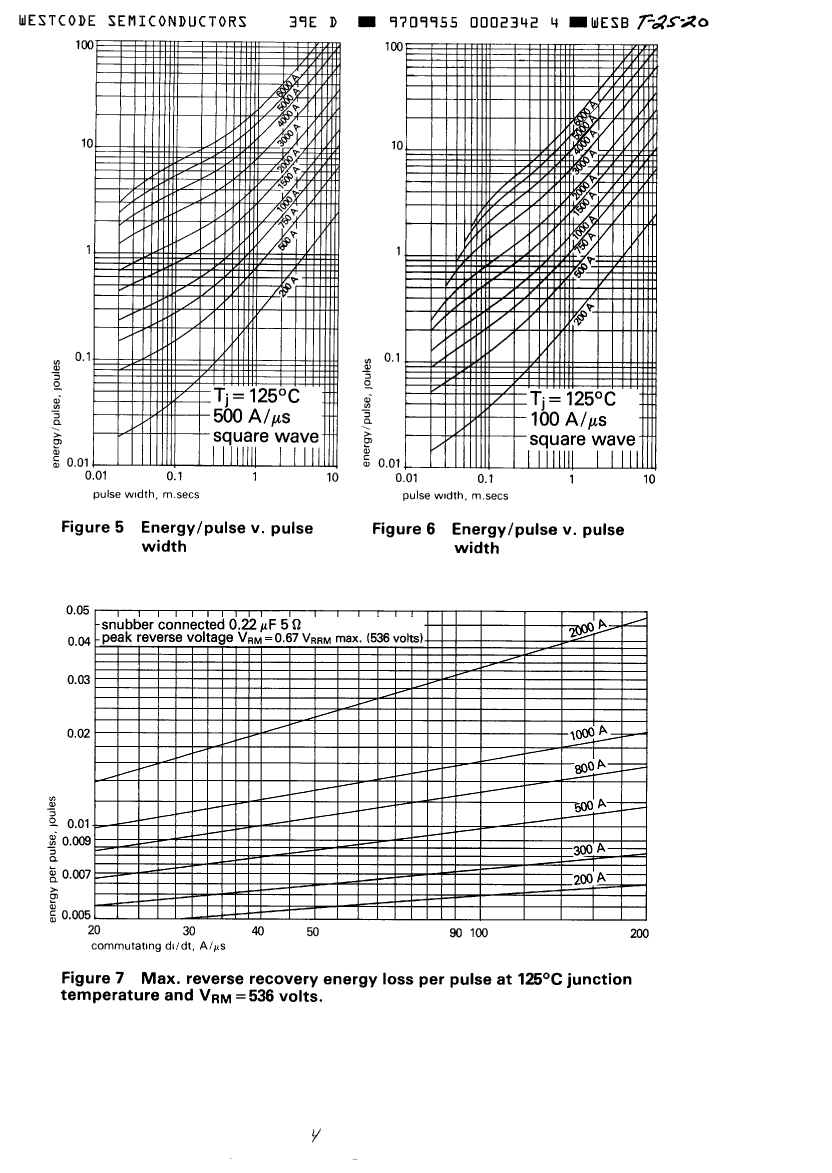

P370KH08EN0 Overview

Silicon Controlled Rectifier, 550000mA I(T), 800V V(DRM),

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	compliant
Is Samacsys	N
Nominal circuit commutation break time	10 µs
Critical rise rate of minimum off-state voltage	100 V/us
Maximum DC gate trigger current	300 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	1000 mA
Maximum leakage current	75 mA
On-state non-repetitive peak current	12000 A
Maximum on-state voltage	1.51 V
Maximum on-state current	550000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Off-state repetitive peak voltage	800 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1

	P370KH08EN0	P370KH04EN0	P370KH02DH0	ABSM32A-04.000MHZ-10-N-3-X
Description	Silicon Controlled Rectifier, 550000mA I(T), 800V V(DRM),	Silicon Controlled Rectifier, 550000mA I(T), 400V V(DRM),	Silicon Controlled Rectifier, 550000mA I(T), 200V V(DRM),	Parallel - Fundamental Quartz Crystal
Reach Compliance Code	compliant	compliant	compliant	compliant
Maximum operating temperature	125 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-30 °C
surface mount	NO	NO	NO	YES
Maker	Littelfuse	Littelfuse	Littelfuse	-
Nominal circuit commutation break time	10 µs	10 µs	30 µs	-
Critical rise rate of minimum off-state voltage	100 V/us	100 V/us	50 V/us	-
Maximum DC gate trigger current	300 mA	300 mA	300 mA	-
Maximum DC gate trigger voltage	3 V	3 V	3 V	-
Maximum holding current	1000 mA	1000 mA	1000 mA	-
Maximum leakage current	75 mA	75 mA	75 mA	-
On-state non-repetitive peak current	12000 A	12000 A	12000 A	-
Maximum on-state voltage	1.51 V	1.51 V	1.51 V	-
Maximum on-state current	550000 A	550000 A	550000 A	-
Off-state repetitive peak voltage	800 V	400 V	200 V	-
Trigger device type	SCR	SCR	SCR	-
Base Number Matches	1	1	1	-
