07DA-6S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 07DA-6S

07DA-6S: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, IDC Terminal; CategoryThe connector The connector; File Size122KB，2 Pages; ManufacturerJST

Download Datasheet Parametric View All

07DA-6S Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, IDC Terminal

07DA-6S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	JST
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	DA
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

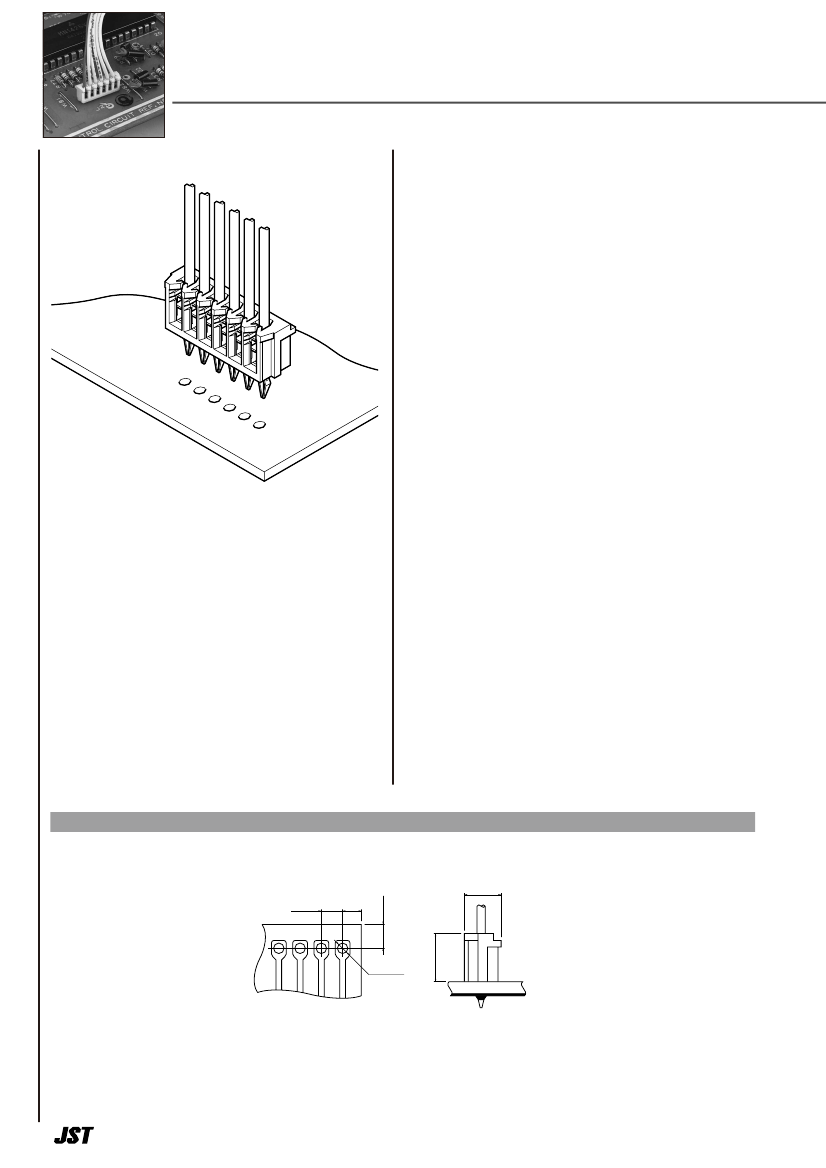

CONNECTOR

2.0mm pitch/Board-in Insulation displacement connectors

Measuring 2.0mm in pitch, 5.0mm in

mounting height, and 4.0mm in thickness,

this board-in connector is useful in

miniaturizing the connections of small

electronic products, such as VCRs,

cameras, stereo systems, and car radios.

This connector can be used by itself or in

combination with the DR connector.

• Compact and low profile

• Twin U-slot insulation displacement section

• Easy mounting onto printed circuit boards

• Strain relief

• Interchangeability

PC board layout (viewed from soldering side) and Assembly layout

2.0

±0.05

2.0min

1.9min

φ0.8

±0.05

Note: 1. Tolerances are non-cumulative:

0.05mm for all centers.

2. Hole dimensions differ according to the kind of PC board and piercing

method. The dimensions above should serve as a guideline.

Contact JST for details.

3. Pulling or otherwise putting a strain on the harness attached to the connector

before the solder has completely cooled can dislodge the connector or cause

its misalignment.

4. Do not reuse any connectors that were previously soldered and then

removed from a PC board.

5.0

Specifications –––––––––––––––––––

• Current rating: 1.0A AC, DC (AWG #26)

• Voltage rating: 100V AC, DC

• Temperature range: -25˚C to +85˚C

(including temperature rise in applying

electrical current)

• Insulation resistance:

1,000M

Ω

min.

• Withstanding voltage: 800V AC/minute

• Applicable wire: UL1571, 1061(Contact JST for details regarding

other UL styles.)

AWG #28, #26

Conductor/7 strands, tin-coated

Insulation O.D./ 0.9 to 1.0mm

• Applicable PC board thickness: 1.2, 1.6mm

* Compliant with RoHS.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

Standards ––––––––––––––––––––––

Certified LR20812

Recognized E60389

4.0
