09663153503 datasheet, PDF - EEWORLD Datasheet

09663153503: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal; CategoryThe connector The connector; File Size127KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

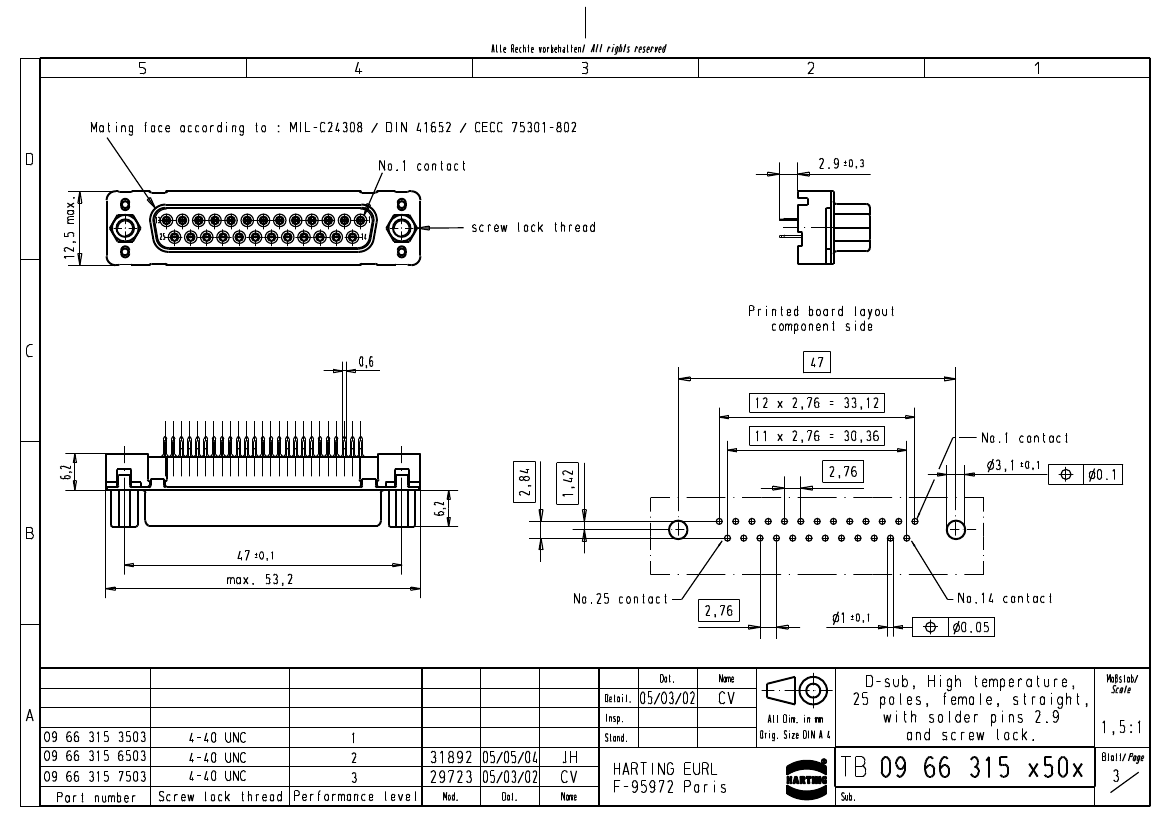

09663153503 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	09663153503
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
Base Number Matches	1

	09663153503	09663157503	09663156503
Description	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal	D-sub standard connectors Dsub SV fem ssdp str29 25p	D-sub standard connectors Dsub SV fem ssdp str29 25p
Maker	HARTING	HARTING	HARTING
Reach Compliance Code	unknown	compliant	compliant
Is Samacsys	N	N	N
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	YES	YES
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	BOARD	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	3/B	3/B	3/B
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	25	25	25
Base Number Matches	1	1	1
Is it lead-free?	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to
Other features	-	STANDARD: DIN 41652	STANDARD: DIN 41652
Contact to complete cooperation	-	NOT SPECIFIED	NOT SPECIFIED
Contact material	-	NOT SPECIFIED	NOT SPECIFIED
insulator material	-	GLASS FILLED PCT/THERMOPLASTIC	GLASS FILLED PCT/THERMOPLASTIC
Plug information	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Shell material	-	STEEL	STEEL
UL Flammability Code	-	94V-0	94V-0
