09661245704 datasheet, PDF - EEWORLD Datasheet

09661245704: DescriptionD Subminiature Connector, 9 Contact(s), Male, Press Fit Terminal; CategoryThe connector The connector; File Size266KB，1 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

09661245704 Overview

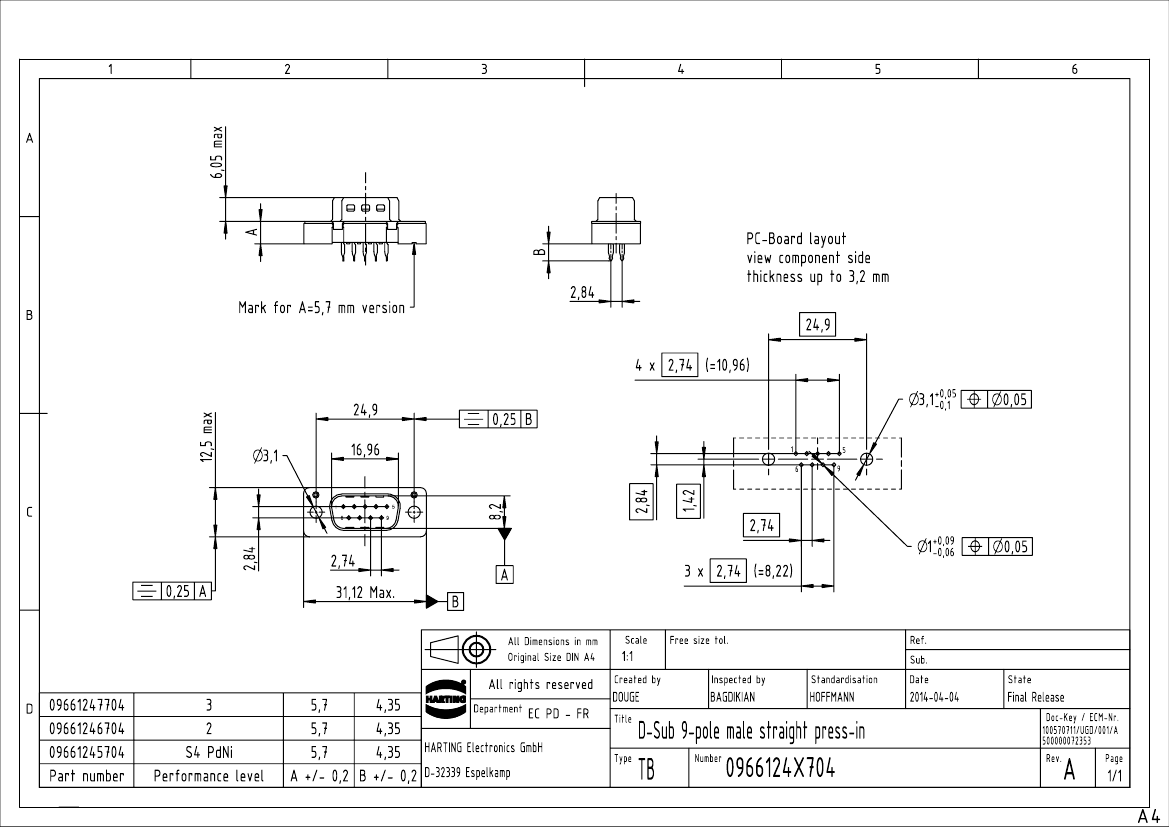

D Subminiature Connector, 9 Contact(s), Male, Press Fit Terminal

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARDS: MIL-C-24308; DIN 41652
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	09661245704
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	METAL
Housing size	1/E
Termination type	PRESS FIT
Total number of contacts	9
Base Number Matches	1

	09661245704	P-2208D2083QBTP	P0805E2083BB
Description	D Subminiature Connector, 9 Contact(s), Male, Press Fit Terminal	Fixed Resistor, Thin Film, 0.8W, 208000ohm, 150V, 0.02% +/-Tol, 15ppm/Cel, Surface Mount, 2208, CHIP	RESISTOR, THIN FILM, 0.2 W, 0.1 %, 25 ppm, 208000 ohm, SURFACE MOUNT, 0805, CHIP
Reach Compliance Code	unknown	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	STANDARDS: MIL-C-24308; DIN 41652	ANTI-SULFUR, FLAME PROOF, NON-INDUCTIVE	HIGH PRECISION, STANDARD: MIL-PRF-55342G
Manufacturer's serial number	09661245704	-	P
Is it Rohs certified?	-	incompatible	incompatible
Objectid	-	233318424	2083939428
package instruction	-	SMT, 2208	SMT, 0805
Country Of Origin	-	USA	France
YTEOL	-	8.25	6
structure	-	Rectangular	Chip
JESD-609 code	-	e0	e0
Installation features	-	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	-	2	2
Maximum operating temperature	-	155 °C	155 °C
Minimum operating temperature	-	-55 °C	-55 °C
Package height	-	0.8382 mm	0.5 mm
Package length	-	5.842 mm	1.91 mm
Package form	-	SMT	SMT
Package width	-	1.905 mm	1.27 mm
method of packing	-	TR	WAFFLE PACK
Rated power dissipation(P)	-	0.8 W	0.2 W
Rated temperature	-	70 °C	70 °C
resistance	-	208000 Ω	208000 Ω
Resistor type	-	FIXED RESISTOR	FIXED RESISTOR
size code	-	2208	0805
surface mount	-	YES	YES
technology	-	THIN FILM	THIN FILM
Temperature Coefficient	-	15 ppm/°C	25 ppm/°C
Terminal surface	-	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	-	WRAPAROUND	WRAPAROUND
Tolerance	-	0.02%	0.1%
Operating Voltage	-	150 V	150 V
