046214009010800 datasheet, PDF

046214009010800: DescriptionCard Edge Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator; CategoryThe connector The connector; File Size265KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

046214009010800 Overview

Card Edge Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	ZIF
Board mount options	MOUNTING FLANGE
body width	0.094 inch
subject depth	0.161 inch
body length	0.354 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	200VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulator color	NATURAL
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.3876 mm
Rated current (signal)	0.4 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

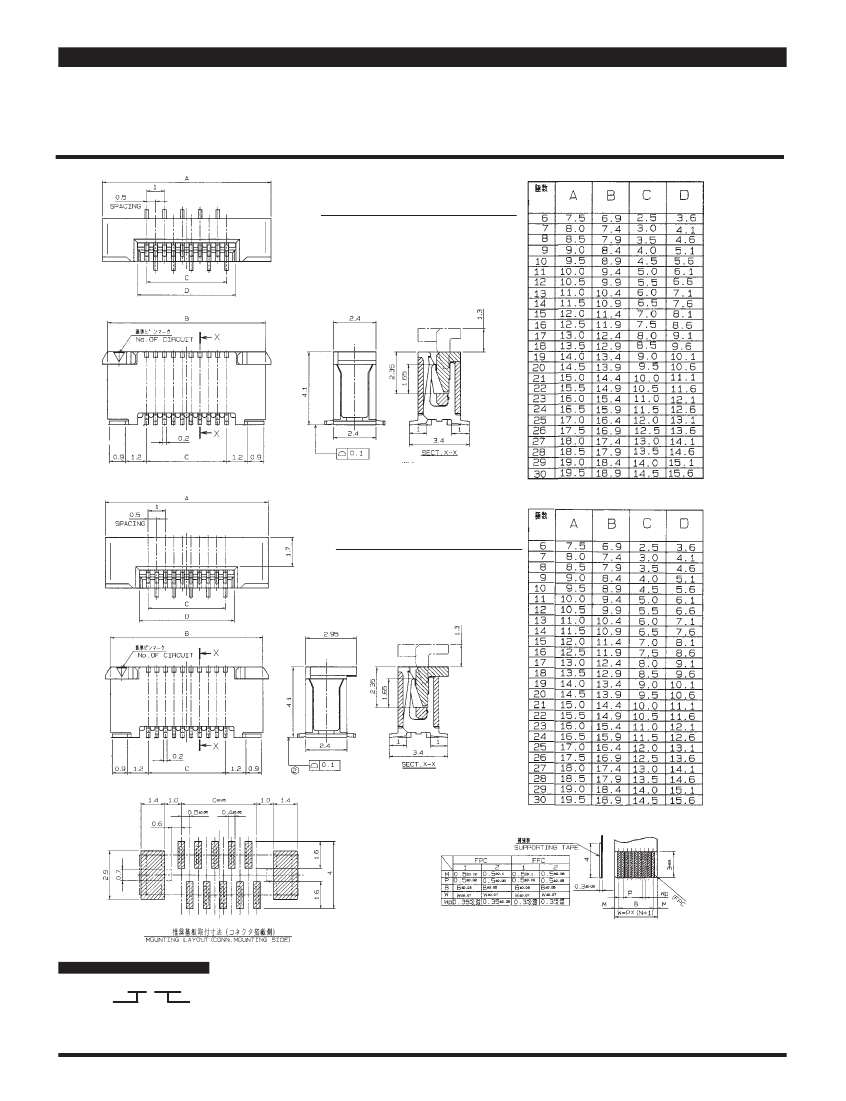

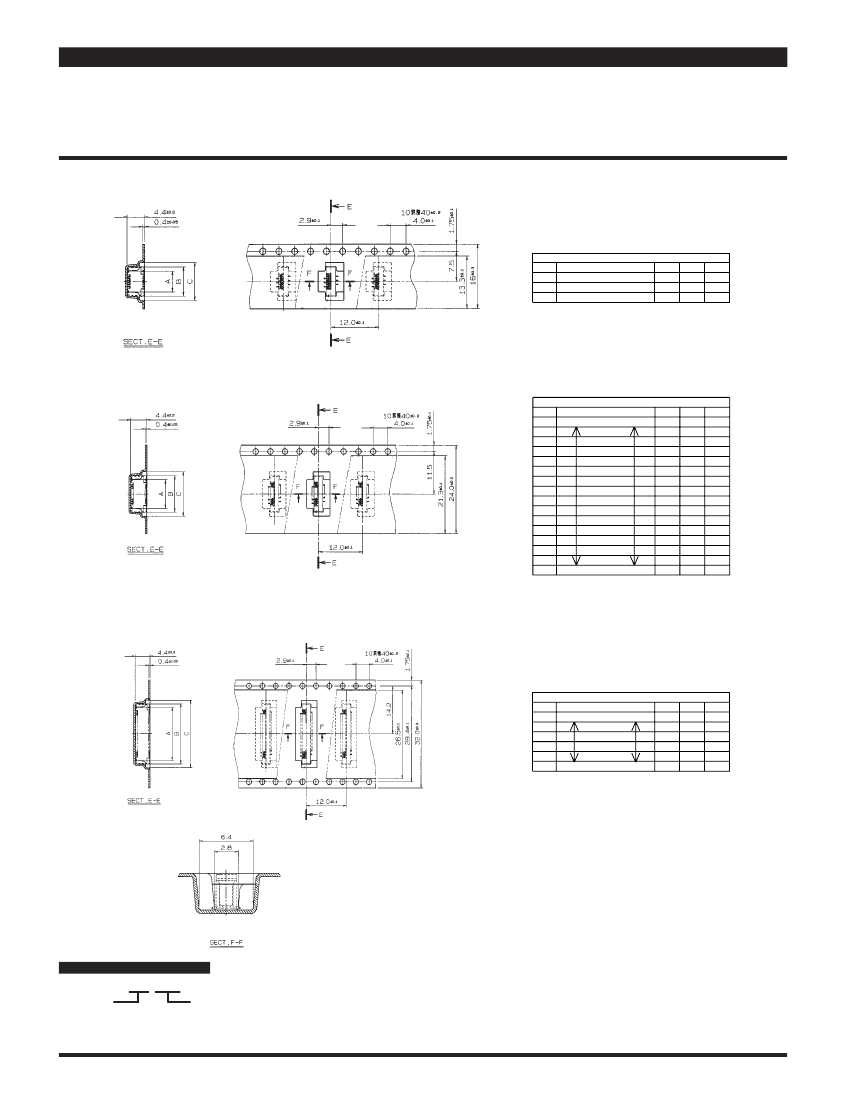

0.5mm Spacing

SERIES

6214

ZIF

ストレート

SMT

(6∼30極)

ZIF Vertical SMT

(6∼30P)

プレイト無

Standard Slider

No. of pos.

プレイト有

Extended Slider

No. of pos.

注文コード

ORDERING CODE

04 6214 0XX XXX 800

極数

NUMBER

OF

POSITIONS

バリエーション

VARIATION CODE

000：プレイト無 Standard slider

010：プレイト有 Extended slider
