830-10-031-10-001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 830-10-031-10-001

Preview

830-10-031-10-001: DescriptionBoard Connector, 31 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

830-10-031-10-001 Overview

Board Connector, 31 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

830-10-031-10-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: 5012-0-00-15-00-00-03-0
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	830
Plug information	831-93-031-10-001
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	31
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

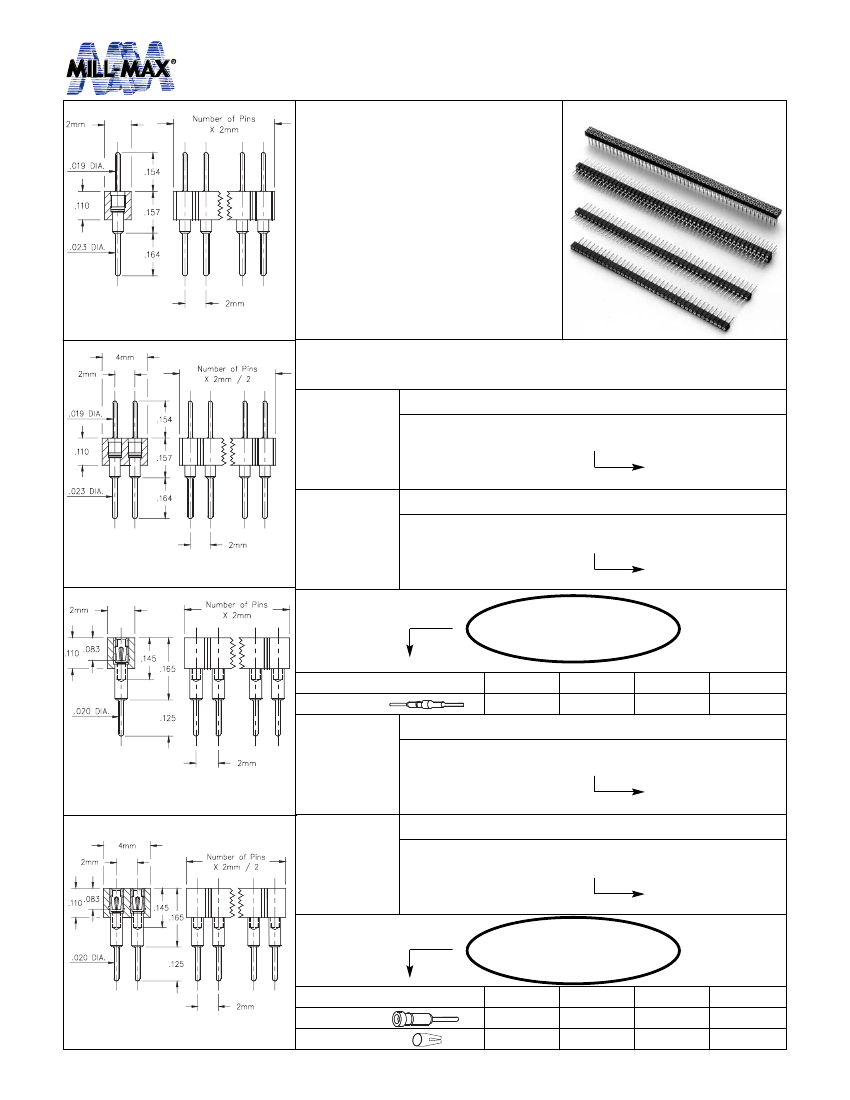

INTERCONNECTS

2mm Grid

Single and Double Row

•

Series 830 single and double row

interconnects have 2 mm pin

spacing and permit board stacking

as low as .322”.

Pin headers (830 & 832) use

MM# 5012 pins. (See page 166

for details)

Sockets (831 & 833) use

MM# 1802 receptacle accepts pin

diameters from .015-.025. (See page

138 for details)

Insulators are high temperature

thermoplastic, suitable for all

soldering operations.

Series 830, 831

832, 833

•

Fig. 1

Ordering Information

Single Row Pin Header

Fig. 1

830-XX-0_ _-10-001

Specify # of pins

01-50

Double Row Pin Header

Fig. 2

832-XX-_ _ _-10-001

Specify # of pins

002-100

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10

10µ” Au

90

200µ” Sn/Pb

Pin Plating

Single Row Socket

Fig. 3

831-XX-0_ _-10-001

Specify # of pins

01-50

Double Row Socket

Fig. 4

833-XX-_ _ _-10-001

Specify # of pins

002-100

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

93

200µ” Sn/Pb

30µ” Au

Fig. 4

Sleeve (Pin)

Contact (Clip)

w w w. m i l l - m a x . c o m

73

516-922-6000
