IDC
NRD
CONNECTOR
• Daisy chain connection
Emboss Tape
Radial Tape
2.5mm
pitch
Disconnectable Insulation displacement connectors
Features ––––––––––––––––––––––––
The connection shown in the figure is commonly called "daisy
chain connection"s or "through connection"s. With these simple
connections, many signals can be bussed to many different
printed circuit boards. The NRD connector is constructed to
allow such daisy chain connections.
• Reliable insulation displacement construction
The contact is identical to that of the NR connector which has an
established reputation for superb reliability.
• Strain relief
Two strain relief sections are provided on the housing to
decouple vibration, bending forces and other external stresses
from the insulation displacement section.
• Interchangeability
This 2.5mm pitch insulation displacement
connector is another version of the NR
connector for printed circuit boards. The
NRD connector allows daisy chaining and
is very useful in simplifying connection
systems in electronic equipment.
The shrouded header is interchangeable with the XH
connectors (crimp style), the NR connectors (IDC style), and the
JQ connectors (board-to-board style).
Specifications –––––––––––––––––––
• Current rating: 2A AC, DC (AWG #24)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: UL1007(Contact JST for details regarding other UL
wires.)
AWG #28, #26, #24
Conductor/7 strands, tin-coated
Insulation O.D./1.1 to 1.5mm
• Applicable PC board thickness: 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
6
JS
T
Standards ––––––––––––––––––––––
0
1
1
Recognized E60389
Certified LR20812
NRD
CONNECTOR
Receptacle –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
Cir-
cuits
AWG #28
(green)
AWG #26
(natural/white)
AWG #24
(black)
Dimensions (mm)
A
2.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
22.5
27.5
32.5
37.5
B
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
32.5
37.5
42.5
Q'ty /
box
1,000
1,000
1,000
500
500
500
500
250
250
250
200
200
B
A
2.5
2.5
2
3
02NR-D8M-P 02NR-D6S-P 02NR-D4K-P
03NR-D8M-P 03NR-D6S-P 03NR-D4K-P
04NR-D8M-P 04NR-D6S-P 04NR-D4K-P
05NR-D8M-P 05NR-D6S-P 05NR-D4K-P
06NR-D8M-P 06NR-D6S-P 06NR-D4K-P
07NR-D8M-P 07NR-D6S-P 07NR-D4K-P
08NR-D8M-P 08NR-D6S-P 08NR-D4K-P
09NR-D8M-P 09NR-D6S-P 09NR-D4K-P
10NR-D8M-P 10NR-D6S-P 10NR-D4K-P
12NR-D8M-P 12NR-D6S-P 12NR-D4K-P
14NR-D8M-P 14NR-D6S-P 14NR-D4K-P
16NR-D8M-P 16NR-D6S-P 16NR-D4K-P
Material and Finish
7.0
4
5
6
7
8
10.8
JS
6
9
10
12
14
16
4.05
Contact: Phosphor bronze, tin-plated (reflow treatment)
Housing: PA 66, UL94V-0
RoHS compliance
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
02NR-D8M-P-
K…black [standard color for AWG#24]
S…natural (white) [standard color for AWG#26]
M…green [standard color for AWG#28]
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
The shrouded headers are interchangeable with the XH connectors (crimp style), the NR connectors (IDC style), and the JQ connectors
(board-to-board).

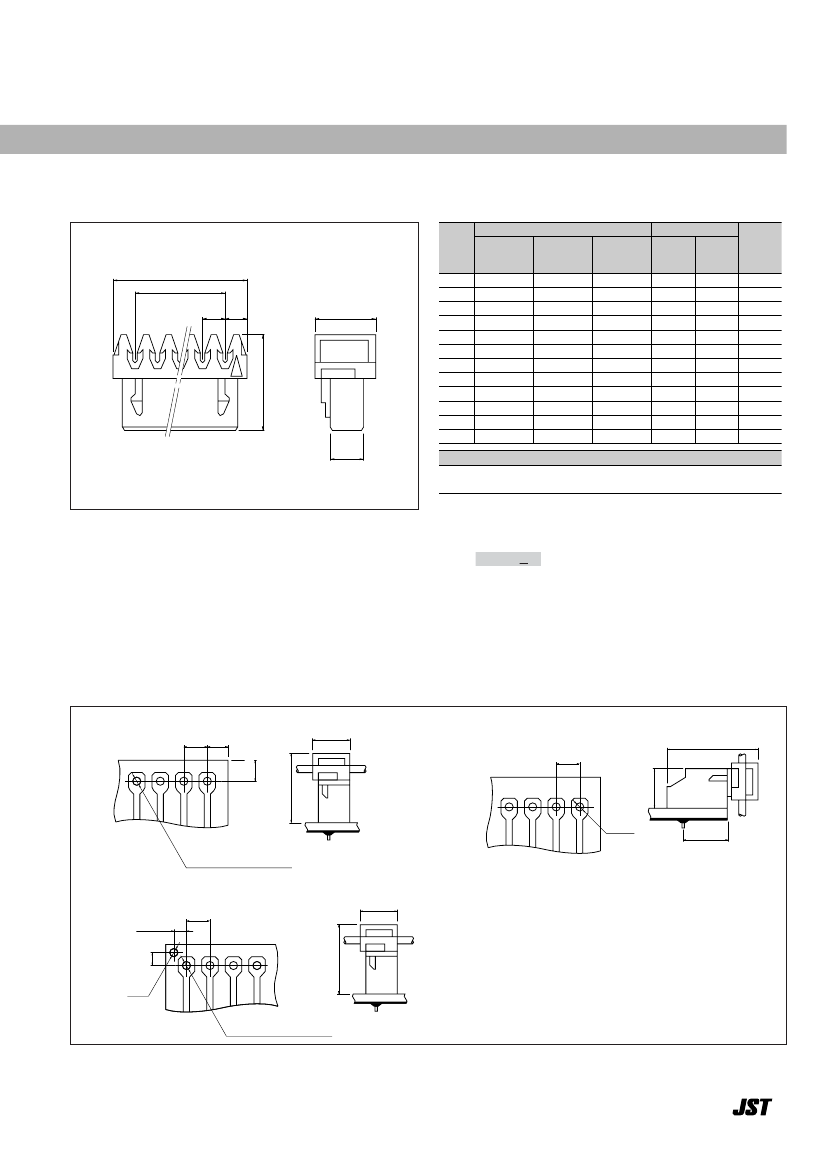

PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
Top entry type
2.5±0.05 2.5min.
3.4min.
7.0
17.6
2.5±0.05
13.1
6.1
φ
0.9
+0.1
0
2 circuits:
φ
1.0±0.05
3 to 16 circuits:
φ
0.9
+0.1
0
Side entry type
9.2
Top entry type
with boss
7.0
2.5±0.05
1.6±0.05
2.0±0.05
φ
1.1
2 circuits:
φ
1.0±0.05
3 to 16 circuits:
φ
0.9
+0.1
0
Note:
1. Tolerances are non-cumulative: ±0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should be
larger. The dimensions above should serve as a guideline. Contact JST for details.
13.1
2
PCB Design
