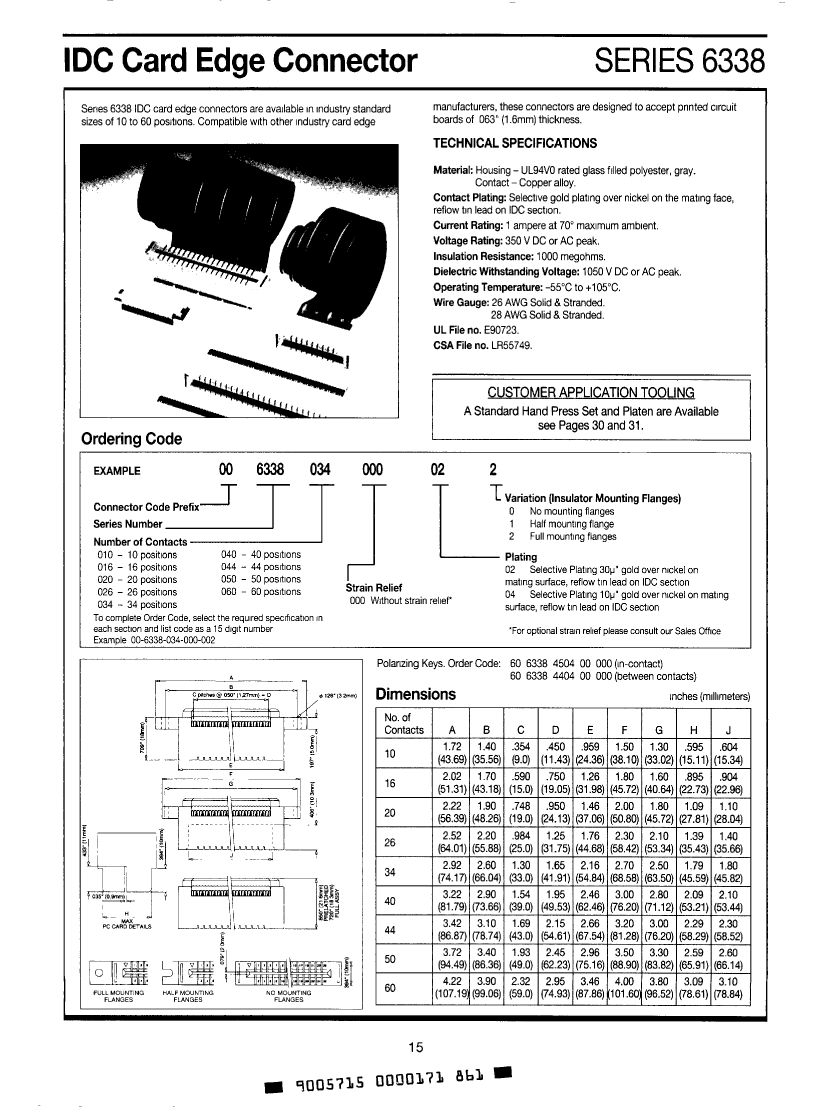

00-6338-050-000-022 datasheet, PDF

00-6338-050-000-022: DescriptionCard Edge Connector, 50 Contact(s), 2 Row(s), 0.05 inch Pitch, Gray Insulator; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

00-6338-050-000-022 Overview

Card Edge Connector, 50 Contact(s), 2 Row(s), 0.05 inch Pitch, Gray Insulator

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Is Samacsys	N
Other features	NONE
Board mount options	MOUNTING FLANGE
body width	0.394 inch
subject depth	0.85 inch
body length	2.96 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1050VAC V
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	6338
Plug contact pitch	0.05 inch
Match contact row spacing	0.063 inch
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Total number of contacts	50
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1
