JE
CONNECTOR
1.25mm
(.049") pitch
Board-to-board connectors
Features ––––––––––––––––––––––––
• A compact high-density design to meet
today's needs
The mating part has a 1.25mm (.049") pitch, single row
construction. To meet the needs for high-density design, this
compact, low-profile connector is only 6.8mm (.268") high and
3.6mm (.142") wide when mounted on the printed circuit board
- roughly 40 percent smaller than our second smallest 2.0mm
(.079") pitch model.
• Secure locking and reliable connection
This connector features a high pressure, dual beam, fork
contact. The secure housing lock ensure a highly reliable
connection even under the severest environmental conditions.
• Box shaped housing
Box-shaped housing prevents misinsertion. The plug fits
securely into the mating receptacle for greater resistance to

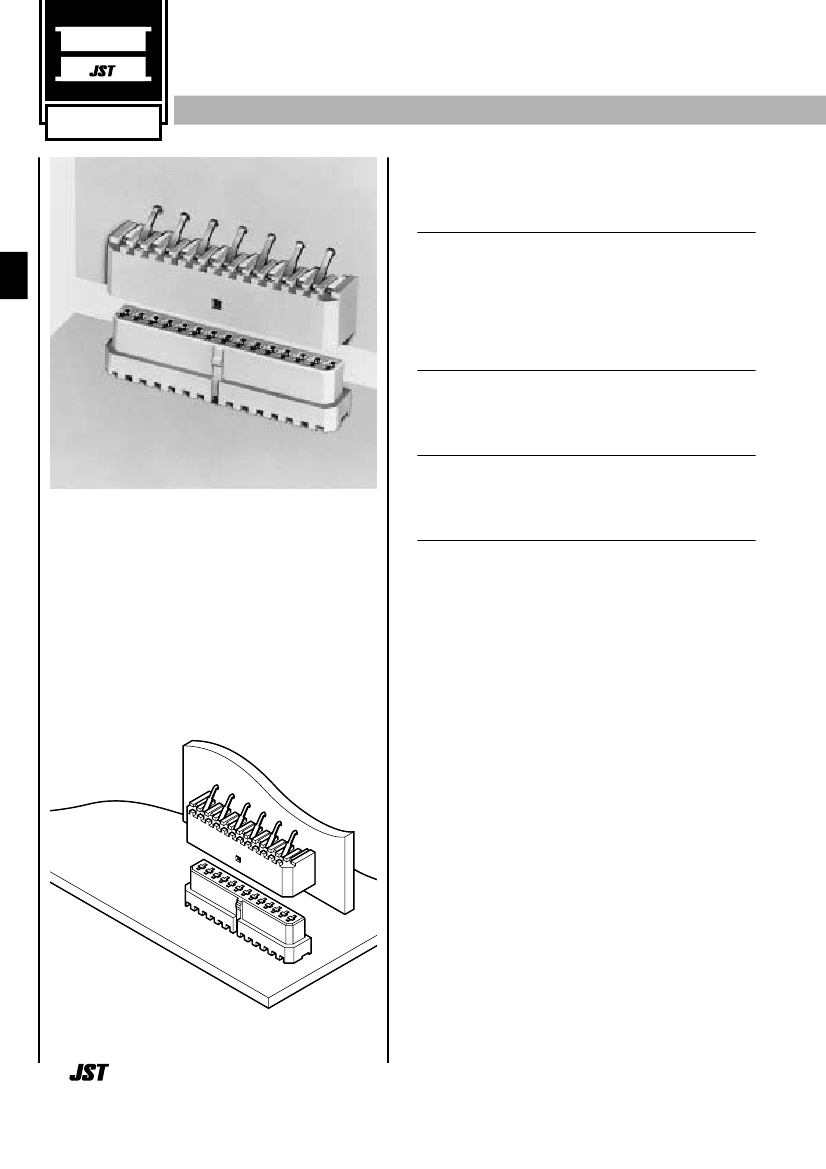

The JE connector is a compact, high-
density, board-to-board connector only
6.8mm (.268") high and 3.6mm (.142") wide.
Its mating part has a 1.25mm (.049") pitch,
single row construction. High contact
pressure dual beam fork contacts are
combined with a housing lock mechanism
to ensure a reliable connection.
vibration.
• Easy mounting and no flux problems
The contact solder tails can be easily clinched. This allows
efficient, secure mounting onto printed circuit boards. The
bottom of the connector housing is designed to prevent flux
from adhering.
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/20m
Ω
max.
After environmental testing/40m
Ω
max.
• Insulation resistance:
500M
Ω
min.
• Withstanding voltage: 500V AC/minute
• Applicable PC board thickness: 1.6mm(.063")
* Contact JST for details.
Standards ––––––––––––––––––––––
300
0
1
Recognized E60389
Certified LR20812
JE
CONNECTOR
Plug ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
•With stop:( )PSL-JE
4.6(.181)
Cir-
cuits
5
7
Model No.
With stop
05PSL-JE
07PSL-JE
09PSL-JE
11PSL-JE
13PSL-JE
15PSL-JE
17PSL-JE
19PSL-JE
Without stop
05PS-JE
07PS-JE
09PS-JE
11PS-JE
13PS-JE
15PS-JE
17PS-JE
19PS-JE
Dimensions mm(in.)
A
5.0(.197)
7.5(.295)
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
20.0(.787)
22.5(.886)
B
7.4(.291)
9.9(.390)
12.4(.488)
14.9(.587)
17.4(.685)
19.9(.783)
22.4(.882)
24.9(.980)
Q'ty /
box
1,400
1,050
800
700
600
500
450
400
4.4(.173)
9
11
13
3.2(.126)
15
17
19
1.25
(.049)
A
B
0.5
(.020)
4.25(.167)
2.0
(.079)
Material and Finish
Contact: Brass, copper-undercoated, tin-plated
Housing: Glass-filled nylon 66, UL94V-0
•Without stop:( )PS-JE
4.6(.181)
1.25
(.049)
A
B
0.5
(.020)
4.25(.167)
2.0
(.079)
Receptacle –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Cir-
cuits
0.5(.020)
2.6(.102)
5
7
9
5.1(.201)
11
13
15
17
3.2(.126)
19
3.2(.126)
4.4(.173)
Model No.
05R-JE
07R-JE
09R-JE
11R-JE
13R-JE
15R-JE
17R-JE
19R-JE
Dimensions mm(in.)
A
5.0(.197)
7.5(.295)
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
20.0(.787)
22.5(.886)
B
7.4(.291)
9.9(.390)
12.4(.488)
14.9(.587)
17.4(.685)
19.9(.783)
22.4(.882)
24.9(.980)
Q'ty /
box
1,000
1,000
1,700
1,400
1,200
1,000
900
800
2.2
(.087)
1.25
(.049)
A
B
0.5
(.020)
2.0
(.079)
3.6(.142)
Material and Finish
Contact: Phosphor bronze, copper-undercoated, tin/lead-plated
Housing: Glass-filled nylon 66, UL94V-0
301
JE
CONNECTOR
PC board layout
(viewed from soldering side)
––––––––––––––––––––––––––––––––––––––
Plug
2.0
±
0.05
(.079
±
.002)
Receptacle
2.5
±
0.05(.098
±
.002)
Circuit No.1
1.25
±
0.05(.049
±
.002)
1.2
(.047)
min.
Circuit No.1
0.8
(.031)
min.
0.7
+0.1
0
(.028
+.004
)dia.
0
4.25
(.167)
min.
1.25
±
0.05(.049
±
.002)
2.5
±
0.05(.098
±
.002)
1.2
(.047)
min.
Note:
1. Tolerances are non-cumulative:
±
0.05mm(
±
.002") for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline.
Contact JST for details.
Assembly layout ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
With stop
4.4(.173)
Daughter board
2.0
(.079)
Without stop
4.4(.173)
Daughter board
2.0
(.079)
6.8(.268)
Mother board
2.0
(.079)
1.5(.059)
2.2
(.087)
4.25
(.167)
2.2
6.8(.268) (.087)
Mother board
2.0
(.079)
1.5(.059)
Note: The daughter board should be secured. For details of the securing method, contact JST.
302
2.2
(.087)
4.25
(.167)
2.0
±
0.05
(.079
±
.002)
0.7
+0.1
0
(.028
+.004
)dia.
0
Talking
