063783 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 063783

063783: DescriptionD Subminiature Connector, 8 Contact(s), Male, Press Fit Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size250KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

063783 Overview

D Subminiature Connector, 8 Contact(s), Male, Press Fit Terminal, #4-40, Receptacle,

063783 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	ROHS COMPLIANT
body width	0.492 inch
subject depth	0.354 inch
body length	2.728 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S0C8
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	1 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation type	BOARD
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Terminal length	0.126 inch
Termination type	PRESS FIT
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

22.86

16.51

10.16

22.86

15.24

8.89

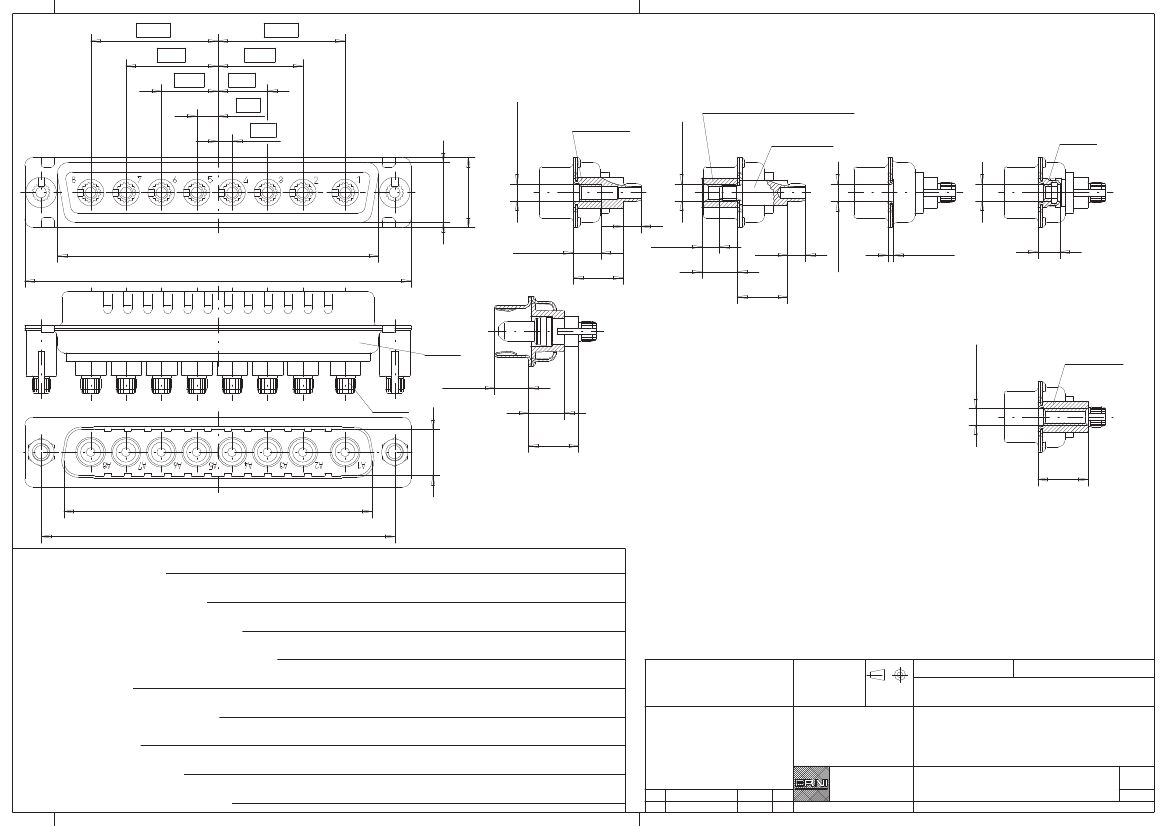

Einpressbolzen

press-fit bolt :

Schnitt A-A /

cross section A-A

ohne Zubehoer

without accessories :

Nietmutter mit Klemmteil

clamping thread :

Einpressbolzen / Gewindehuelse

press-fit bolt / threaded sleeve :

044881 M3 / 044880 #4-40

(044878 M3 / 044879 #4-40)

oder / or

3.81

2.54

oder /

or #4-40

053016 M3

053017 #4-40

10.8

±0.2

12.5

±0.3

#4-40

064470 M3

053019 #4-40

103761

(min. 2.5)

69.3

±0.3

6.4

(5.9)

ø3.05

57.7

±0.3

min.

4.5

min.

+0.13

3.2

max.

1.5

3.9

Nietmutter /

riveted nut :

104572 M3

104573 #4-40

5.8

054116

+0.3

6.4

-0.3

+0.1

8.3

+0.2

oder /

or #4-40

114182

55.3

+0.2

Zubehör /

Accessories

63.5

±0.2

Ident-Nr./

Polzahl/

Part No. :

No. of contacts :

Refer to table on page 2

Pressfit

3.2 mm

Einpressbolzen /

press-fit bolt

Gewindehülse /

threaded sleeve

Nietmutter /

riveted nut

Nietmutter mit Klemmteil /

clamping thread

ohne / without

Schichtaufbau im metallisierten Loch /

für Einpresskontakt Zeichnung 114110 /

für Einpressbolzen Zeichnung 114109 /

Information:

Tolerances

All Dimensions

in mm

Consider protection memo from DIN 34

Anschlussart/

Anschlusslänge/

Bauart/

Type :

Terminal Type :

Terminal Length :

8W8

Class :

ERNI

metal plating of plated-through hole

for press-fit contact drawing 114110

for press-fit bolt drawing 114109

Scale

2:1

Anforderungsstufe/

Aufdruck/

Zubehör/

Logo :

201=0.8µm (30

µin)

Au CONTACT, GOLD/LEAD TERMINAL

Accessory :

Refer to table on page 2

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

TMC-P 8W8-EP36-09.0-8

www.ERNI.com

Index

29.04.1998

Date

M:00021151.SZN

Sonderausführung/

Special :

054881

TMCP

063783 Related Products

	063783	104284
Description	D Subminiature Connector, 8 Contact(s), Male, Press Fit Terminal, #4-40, Receptacle,	D Subminiature Connector, 8 Contact(s), Male, Press Fit Terminal, M3, Receptacle,
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	ERNI	ERNI
Reach Compliance Code	compliant	compli
Other features	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.492 inch	0.492 inch
subject depth	0.354 inch	0.354 inch
body length	2.728 inch	2.728 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact arrangement	S0C8	S0C8
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	GOLD (30)	GOLD
Contact completed and terminated	Gold (Au)	Tin (Sn)
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	COPPER ALLOY
Contact resistance	1 mΩ	1 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	1000VDC V	1000VDC V
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insulation resistance	5000000000 Ω	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4	e3
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation option 1	#4-40	M3
Installation option 2	THREADED	THREADED
Installation type	BOARD	BOARD
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	30u inch
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN
Shell material	STEEL	STEEL
Housing size	4/C	4/C
Terminal length	0.126 inch	0.126 inch
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	8	8
UL Flammability Code	94V-0	94V-0
