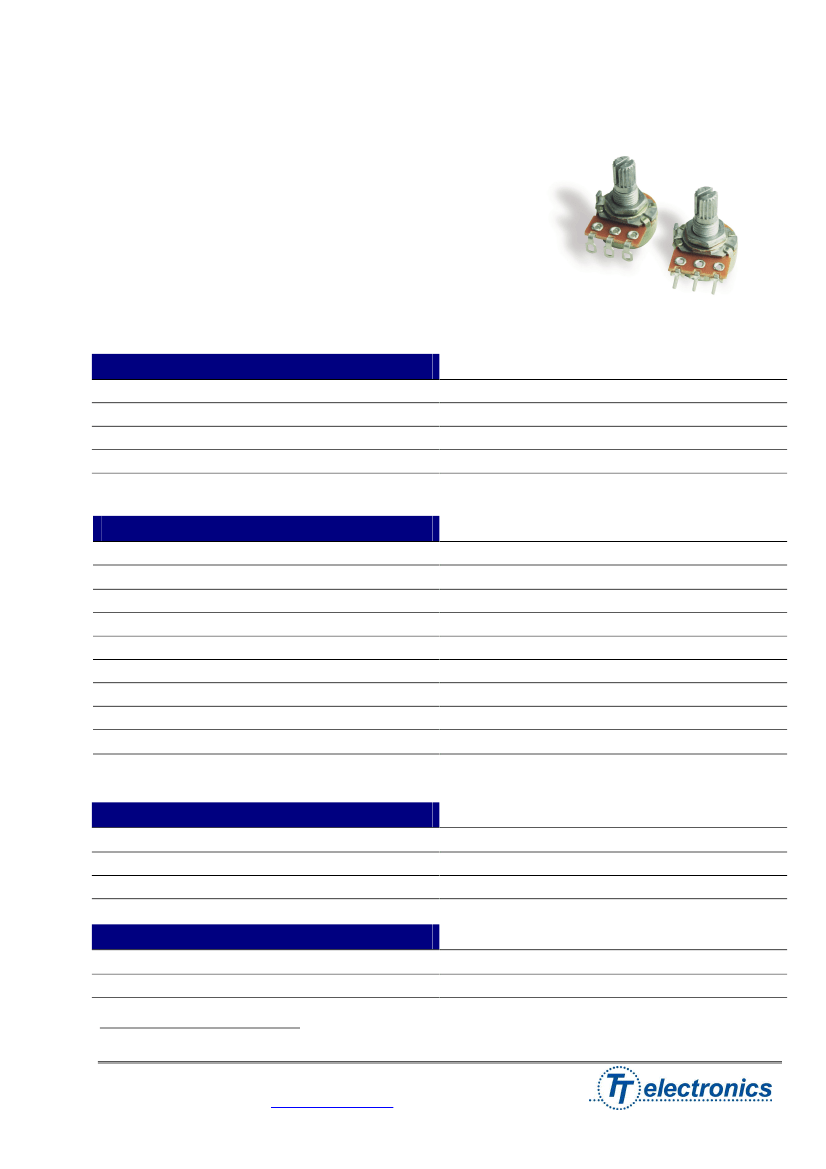

Model P160
16mm Rotary Potentiometer
Conductive Plastic Element
100,000 Cycle Life
Metal shaft / Bushing
Multi – Ganged available
RoHS Compliant
MODEL STYLES
Side Adjust , Solder Lugs
Side Adjust , PC pins
Side Adjust , PC Pins, Long pins
Rear Adjust, PC pins
P160KNP
P160KN
P160KN2
P160KNPD
ELECTRICAL
1
Resistance Range, Ohms
Standard Resistance Tolerance
Residual Resistance
Power rating Input Voltage, maximum
Power Rated, Watts
Dielectric Strength
Insulation Resistance, Minimum
Sliding Noise
Actual Electrical Travel, Nominal
500-1M
±
20%
20 ohms max.
200 Vac max.
0.2W- B taper, 0.1W-others
500Vac, I minute
100M ohms at 250Vdc
100mV max.
270°
MECHANICAL
Total Mechanical Travel
Static Stop Strength
Rotational Torque, Maximum
300°± 10°
90 oz-in
2.5 oz-in
ENVIRONMENTAL
Operating Temperature Range
Rotational Life
-20°C to +70°C
100,000 cycles
1
Specifications subject to change without notice.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
June 13, 2007
Website:
www.bitechnologies.com
page 1 of 4
BI technologies
Model P160
ORDERING INFORMATION
2

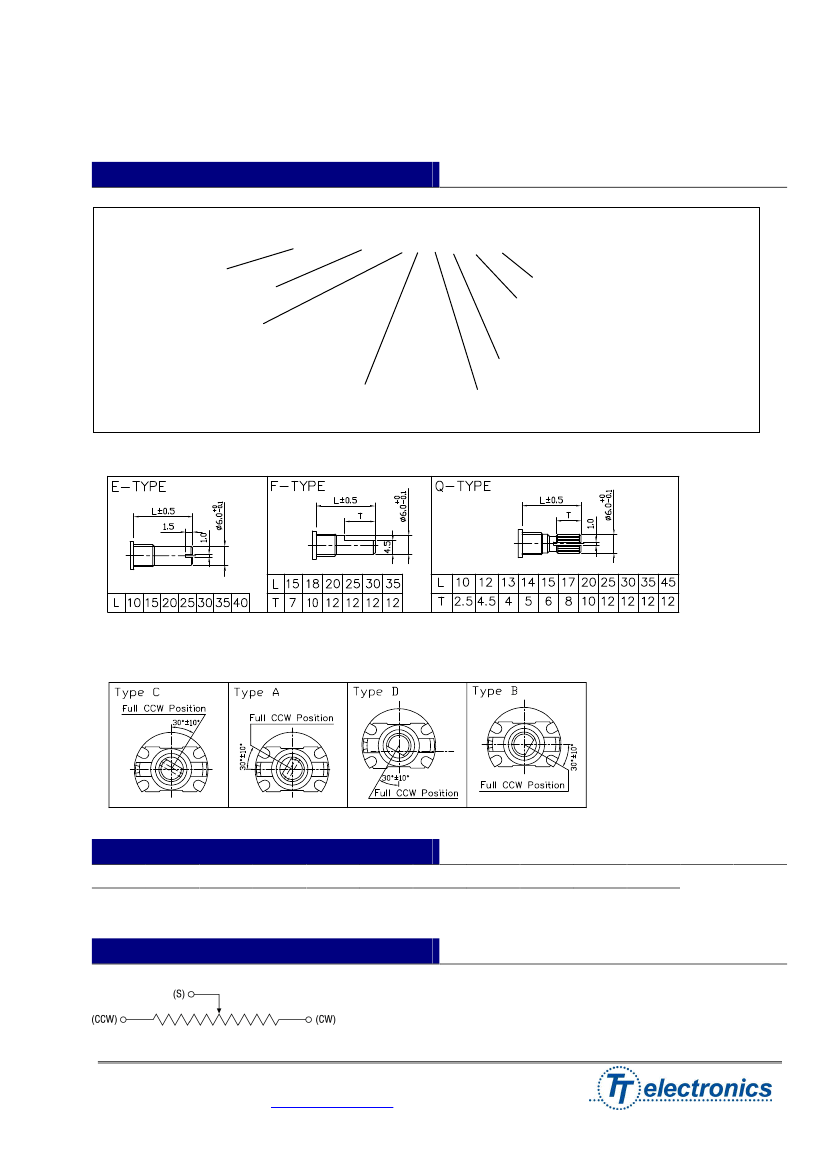

P160 KNP – 0 Q C 20 B 100K
Model Series
Style
Detent
0 – No Detent
1 – Center Detent
2 – 11 Detents
3 – 21 Detents
4 – 41 Detents
Total Resistance
Tapers
A = Audio
B = Linear
C = Reverse Audio
Shaft Length “L” see below
Shaft Type
Full CCW Shaft Position: see below
Shaft Types
Shaft Position
(F-Type Shaft)
Dashed lines on Type “C” and Type “A” shows position of adjustment slot for E-Type and Q-Type shafts
STANDARD RESISTANCE VALUES, OHMS
500
1K
2K
5K
10K
20K
50K
100K
200K
500K
1MEG
CIRCUIT DIAGRAM
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
June 13, 2007
Website:
www.bitechnologies.com
page 2 of 4
BI technologies
Model P160
OUTLINE DRAWING

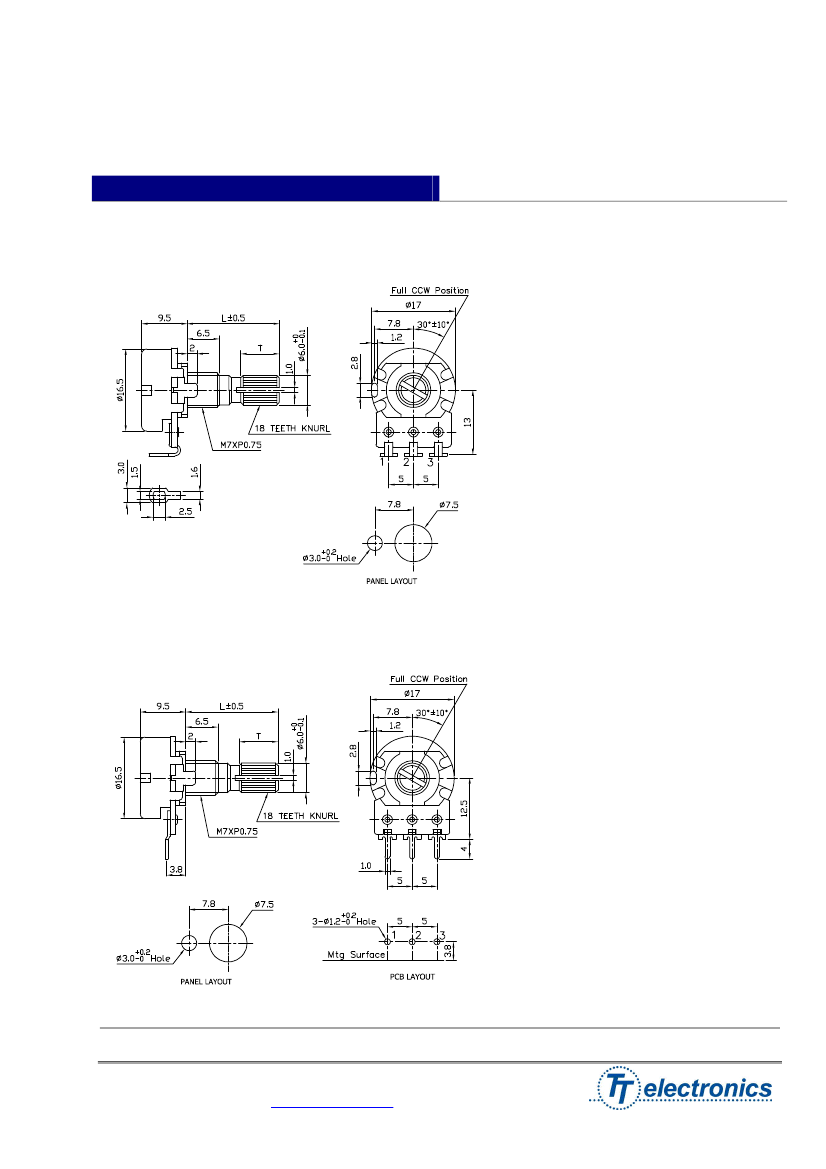

Model P160KNP (Side Adjust , Solder Lugs)
Model P160KN (Side Adjust , PC pins)
2
Contact our customer service for custom designs and features.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
June 13, 2007
Website:
www.bitechnologies.com
page 3 of 4
BI technologies
Model P160

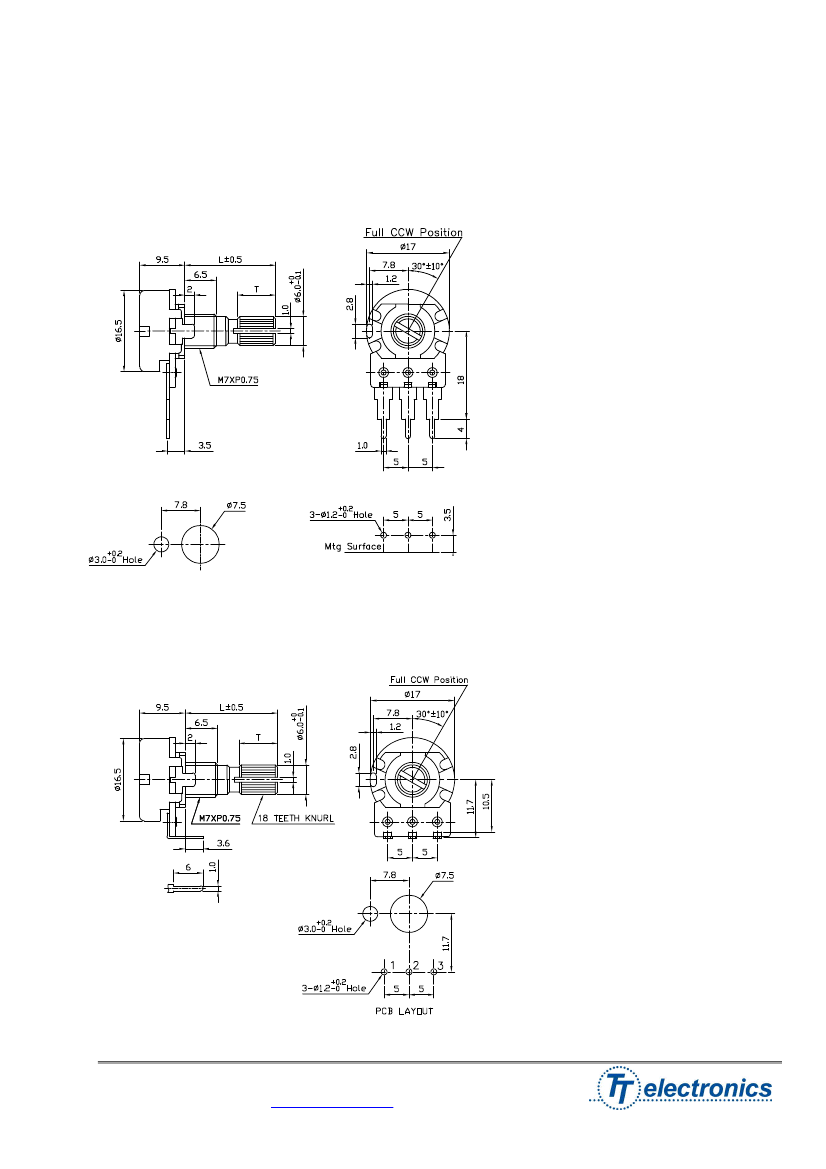

Model P160KN2 (Side Adjust , PC Pins, Long pins)
PCB LAYOUT
PANEL LAYOUT
Model P160KNPD (Rear Adjust , PC Pins)
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
June 13, 2007
Website:
www.bitechnologies.com
page 4 of 4
BI technologies
