0409-C-3030-B-005000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 0409-C-3030-B-005000

Preview

0409-C-3030-B-005000: DescriptionMains Power Connector, 10/15A, 250VAC, Male, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size243KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

0409-C-3030-B-005000 Overview

Mains Power Connector, 10/15A, 250VAC, Male, Plug, ROHS COMPLIANT

0409-C-3030-B-005000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	CSA, UL
Body/casing type	PLUG
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	10/15A, 250VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYVINYLCHLORIDE
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

Cord Sets

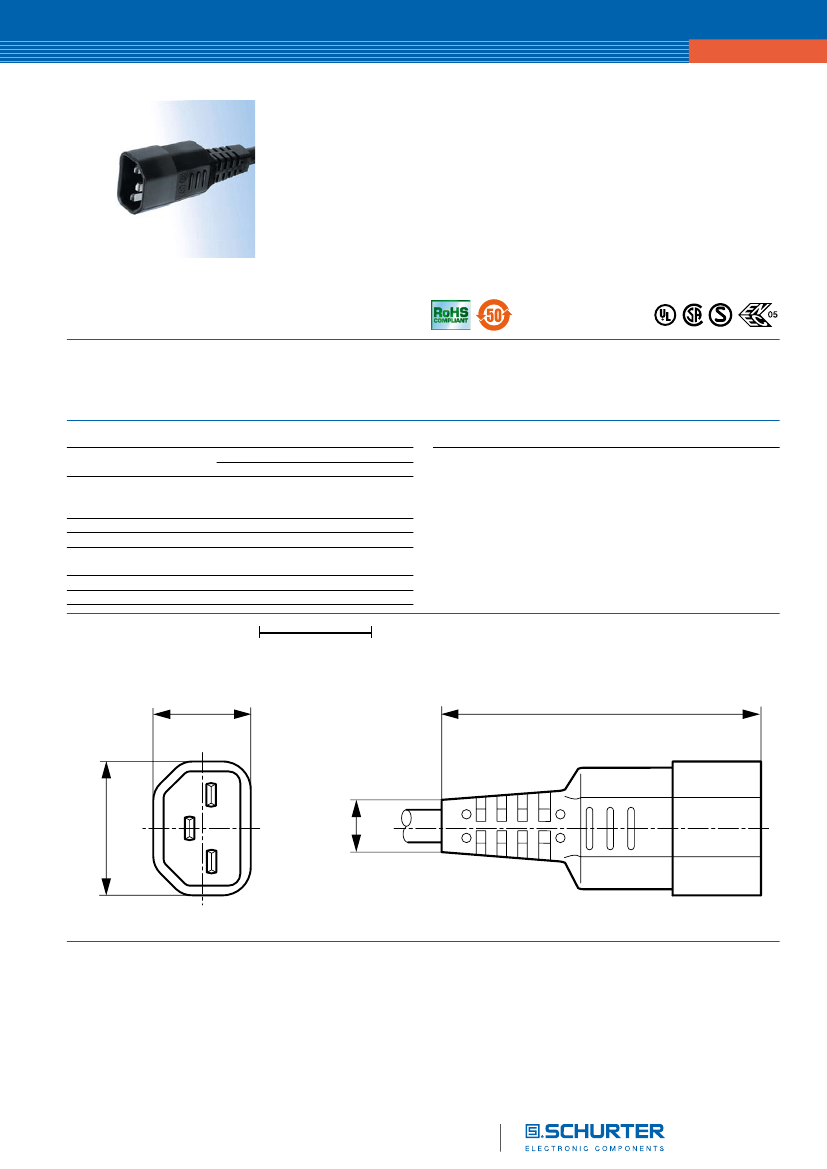

www.schurter.com/pg07_2

Interconnection Cord with Plug "E-Horizontal", Straight

0409

Description

Approvals

Interconnection Cord, Protection class I, Pin temperature 70 °C, Cable

- UL File Number: E45116

- CSA File Number: 32338

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Material: Housing

Dimensions

SE

28.3 mm

10 A / 250 VAC; 50 Hz

15 A / 250 VAC; 60 Hz

> 2 kVDC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class 1 acc. to IEC 61140

moulded

PVC, black or grey

20.6

PH

A

ø 11

28.3

Connectors

-O

UT

Weblinks

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories, Detailed request for product

67.5
