250MMB183M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 250MMB183M

250MMB183M: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 250V, 0.018uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size27KB，1 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

250MMB183M Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 250V, 0.018uF, THROUGH HOLE MOUNT, RADIAL LEADED

250MMB183M Parametric

Parameter Name	Attribute value
Objectid	1967991662
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.018 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e2
Manufacturer's serial number	MMB
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
surface mount	NO
Terminal surface	TIN COPPER
Terminal shape	WIRE

Preview

Download Datasheet

View All

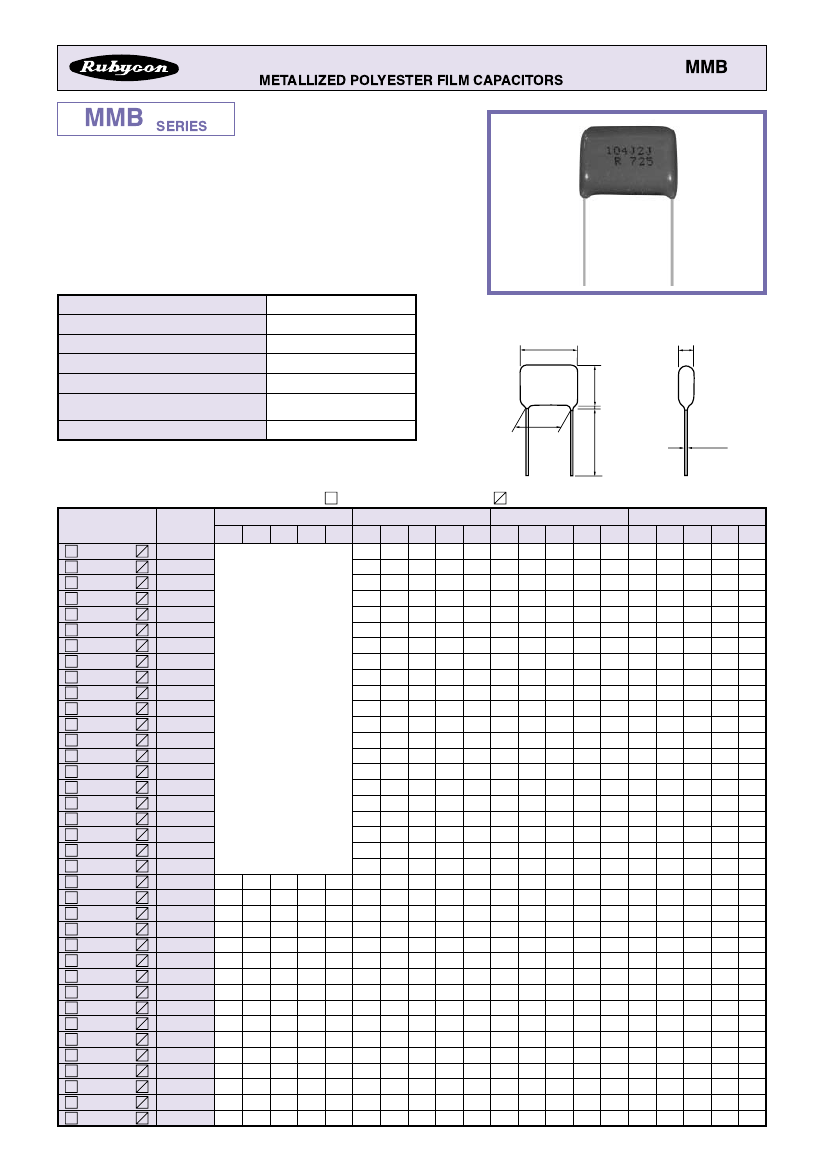

メタライズドポリエステルフィルムコンデンサ

MMB

シリーズ

SERIES

◆特長／FEATURES

METALLIZED POLYESTER FILM CAPACITORS

MMB

•

小½品。

•

自己回復性のある信頼性の高いコンデンサです。

•

外装に難燃性（UL 94V-0）のエポキシ樹脂を½用していま

すので、安全性に優れています。

•

Small and light.

•

This capacitors provide self-healing.

•

Coated flame-retardant (UL 94V-0) epoxy resin.

◆規格／SPECIFICATIONS

カテゴリ温度/

Category temperture

定格電圧/

Rated voltage (U

)

静電容量許容差/

Capacitance tolerance

誘電正接/

tanδ

耐電圧/

Voltage proof

絶縁抵抗/

Insulation resistance

準拠規格/

Reference standard

※−40℃∼＋105℃

DC100V, 250V, 400V, 630V

±5%(J), ±10%(K), ±20%(M)

0.01 max at 1kHz

×150% 60s

0.33μF = :9000MΩmin

0.33μF < :3000ΩFmin

JIS C 5101-2 JIS C 5101-1

C max

2.0 max

◆寸法図／DIMENSIONS (mm)

A max

B max

F±1.5

20 min

φd±0.05

※定格温度（＋85℃）を超えて½用の場合P182、図-2に示す電圧½減を行って下さい。

Derate the voltage as shown in the figure 2(182page) when using the

capacitor beyond 85℃.

◆標準品／STANDARD PRODUCTS

品番

Part No.

MMB 103

MMB 123

MMB 153

MMB 183

MMB 223

MMB 273

MMB 333

MMB 393

MMB 473

MMB 563

MMB 683

MMB 823

MMB 104

MMB 124

MMB 154

MMB 184

MMB 224

MMB 274

MMB 334

MMB 394

MMB 474

MMB 564

MMB 684

MMB 824

MMB 105

MMB 125

MMB 155

MMB 185

MMB 225

MMB 275

MMB 335

MMB 395

MMB 475

MMB 565

MMB 685

MMB 825

MMB 106

: 定格電圧/Rated voltage

DC 250V

DC 100V

静電容量

cap(μF) A

0.01

10.3 4.5 8.0 7.5 0.6

0.012

10.3 4.5 8.0 7.5 0.6

0.015

10.3 4.5 8.0 7.5 0.6

0.018

10.3 4.5 8.0 7.5 0.6

0.022

10.3 4.5 8.0 7.5 0.6

0.027

10.3 5.0 8.0 7.5 0.6

0.033

この範囲は

10.3 4.5 8.5 7.5 0.6

0.039

0.047 SMCシリーズ(100V） 10.3 4.5 8.5 7.5 0.6

をご½用ください。 10.3 4.8 8.8 7.5 0.6

0.056

10.3 5.0 9.0 7.5 0.6

0.068

0.082 The items of this range, 10.3 5.5 9.5 7.5 0.6

please select out of 10.3 6.0 10.0 7.5 0.6

0.1

SMC(100V) series.

10.3 6.0 10.0 7.5 0.6

0.12

10.3 6.0 11.5 7.5 0.6

0.15

12.8 5.0 11.0 10.0 0.6

0.18

12.8 5.5 10.5 10.0 0.6

0.22

12.8 6.5 12.0 10.0 0.6

0.27

12.8 6.5 13.0 10.0 0.6

0.33

18.0 5.0 11.0 15.0 0.6

0.39

18.0 5.5 11.0 15.0 0.6

0.47

0.56

12.5 5.6 11.4 10.0 0.6 18.0 5.5 13.0 15.0 0.6

0.68

12.5 6.4 11.9 10.0 0.6 18.0 6.0 13.5 15.0 0.8

12.5 6.0 14.0 10.0 0.6 18.0 6.5 14.0 15.0 0.8

0.82

12.5 6.6 14.6 10.0 0.6 18.0 7.0 14.5 15.0 0.8

1.0

18.0 6.5 14.5 15.0 0.8 18.0 7.4 16.5 15.0 0.8

1.2

18.0 7.5 15.0 15.0 0.8 18.0 8.3 17.0 15.0 0.8

1.5

18.0 8.0 15.5 15.0 0.8 25.5 7.0 16.2 22.5 0.8

1.8

18.0 8.5 16.5 15.0 0.8 25.5 7.8 17.0 22.5 0.8

2.2

18.0 9.5 17.5 15.0 0.8 25.5 9.0 18.0 22.5 0.8

2.7

18.0 10.0 18.0 15.0 0.8 25.5 10.0 19.0 22.5 0.8

3.3

25.5 8.0 16.5 22.5 0.8 25.5 11.0 20.0 22.5 0.8

3.9

25.5 9.0 17.5 22.5 0.8 25.5 12.3 21.3 22.5 0.8

4.7

31.0 11.0 22.0 27.5 0.8

5.6

31.0 12.5 23.3 27.5 0.8

6.8

31.0 14.0 24.5 27.5 0.8

8.2

31.0 15.7 26.3 27.5 0.8

: 静電容量許容差/Capacitance tolerance

DC 400V

DC 630V

10.3 4.5 8.0 7.5 0.6 12.8 4.5 8.0 10.0

10.3 4.5 8.0 7.5 0.6 12.8 5.0 8.0 10.0

10.3 4.5 8.0 7.5 0.6 12.8 5.3 8.5 10.0

10.3 4.5 8.0 7.5 0.6 12.8 5.5 10.0 10.0

10.3 4.5 8.0 7.5 0.6 12.8 5.5 10.5 10.0

10.3 5.0 8.0 7.5 0.6 12.8 6.0 11.0 10.0

12.8 5.0 8.0 10.0 0.6 12.8 6.0 13.0 10.0

12.8 5.0 8.0 10.0 0.6 12.8 6.5 13.3 10.0

12.8 5.5 8.5 10.0 0.6 18.0 5.5 10.3 15.0

12.8 5.5 8.5 10.0 0.6 18.0 6.0 10.7 15.0

12.8 5.5 8.5 10.0 0.6 18.0 6.0 11.2 15.0

12.8 6.0 9.5 10.0 0.6 18.0 6.0 13.0 15.0

18.0 5.5 9.0 15.0 0.6 18.0 6.5 13.5 15.0

18.0 6.0 9.0 15.0 0.6 18.0 7.0 14.2 15.0

18.0 6.5 9.5 15.0 0.6 18.0 7.5 15.0 15.0

18.0 5.5 12.5 15.0 0.6 18.0 8.3 15.6 15.0

18.0 6.0 13.0 15.0 0.8 25.5 7.0 14.5 22.5

18.0 6.5 13.5 15.0 0.8 25.5 7.8 15.0 22.5

18.0 7.0 14.5 15.0 0.8 25.5 8.0 17.0 22.5

18.0 7.5 16.0 15.0 0.8 25.5 8.8 18.0 22.5

25.5 6.0 15.0 22.5 0.8 25.5 9.0 20.0 22.5

25.5 6.5 15.5 22.5 0.8 25.5 10.3 21.0 22.5

25.5 7.0 16.5 22.5 0.8 31.0 9.8 20.5 27.5

25.5 7.5 18.5 22.5 0.8 31.0 11.0 22.0 27.5

25.5 8.5 18.5 22.5 0.8 31.0 12.5 23.0 27.5

31.0 8.5 19.0 27.5 0.8 31.0 14.0 24.5 27.5

31.0 9.0 20.0 27.5 0.8 31.0 15.5 26.0 27.5

31.0 10.5 21.0 27.5 0.8 31.0 17.0 28.0 27.5

31.0 12.0 22.0 27.5 0.8

31.0 13.0 24.0 27.5 0.8

31.0 14.5 25.0 27.5 0.8

31.0 16.0 27.0 27.5 0.8

0.6

0.8
