T-1 3/4 (5mm) INFRA-RED EMITTING DIODE
L-7113F3C
Features
Description
AND SPECTRALLY MATCHED
F3 Made with Gallium Arsenide Infrared Emitting
diodes.
z
MECHANICALLY
z
WATER
TO THE L-7113P3C PHOTOTRANSISTOR.
CLEAR LENS AVAILABLE HIGH POWER
zRoHS
COMPLIANT.
OUTPUT.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAB6712
APPROVED: J. Lu
REV NO: V.7
CHECKED: Allen Liu
DATE: NOV/01/2005
DRAWN: F.LI
PAGE: 1 OF 3
Selection Guide
Part No.
Dice
Lens Type
Po (mW/sr)
@ 20mA*50mA
Min.
7
L-7113F3C
GaAs
WATER CLEAR
*10
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2.* Luminous intensity with asterisk is measured at 50mA.
Viewing
Angle
2θ1/2
20
°
Typ.
20
*30
Electrical / Optical Characteristics at T
A
=25°C
Item
Forward Voltage
Reverse Current
Capacitance
Peak Spectral Wavelength
Spectral Bandwidth
F3
F3
F3
F3
F3
P/N
Symbol
V
F
I
R
C
λP
∆λ1/2
Typ.
1.2
-
90
940
50
Max.
1.6
10
-
-
-
Units
V
uA
pF
nm
nm
Test Conditions
I
F
=20mA
V
R
=5V
V
F
=0V;f=1MHz
I
F
=20mA
I
F
=20mA
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power Dissipation
DC Forward Current
Peak Forward Current[1]
Reverse Voltage
Operating Temperature
Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/100 Duty Cycle, 10µs Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Symbol
P
T
I
F
i
FS
V
R
T
A
T
STG
F3
100
50
1.2
5
-40 To +85
-40 To +85
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
A
V
°C
°C
SPEC NO: DSAB6712
APPROVED: J. Lu
REV NO: V.7
CHECKED: Allen Liu
DATE: NOV/01/2005
DRAWN: F.LI
PAGE: 2 OF 3

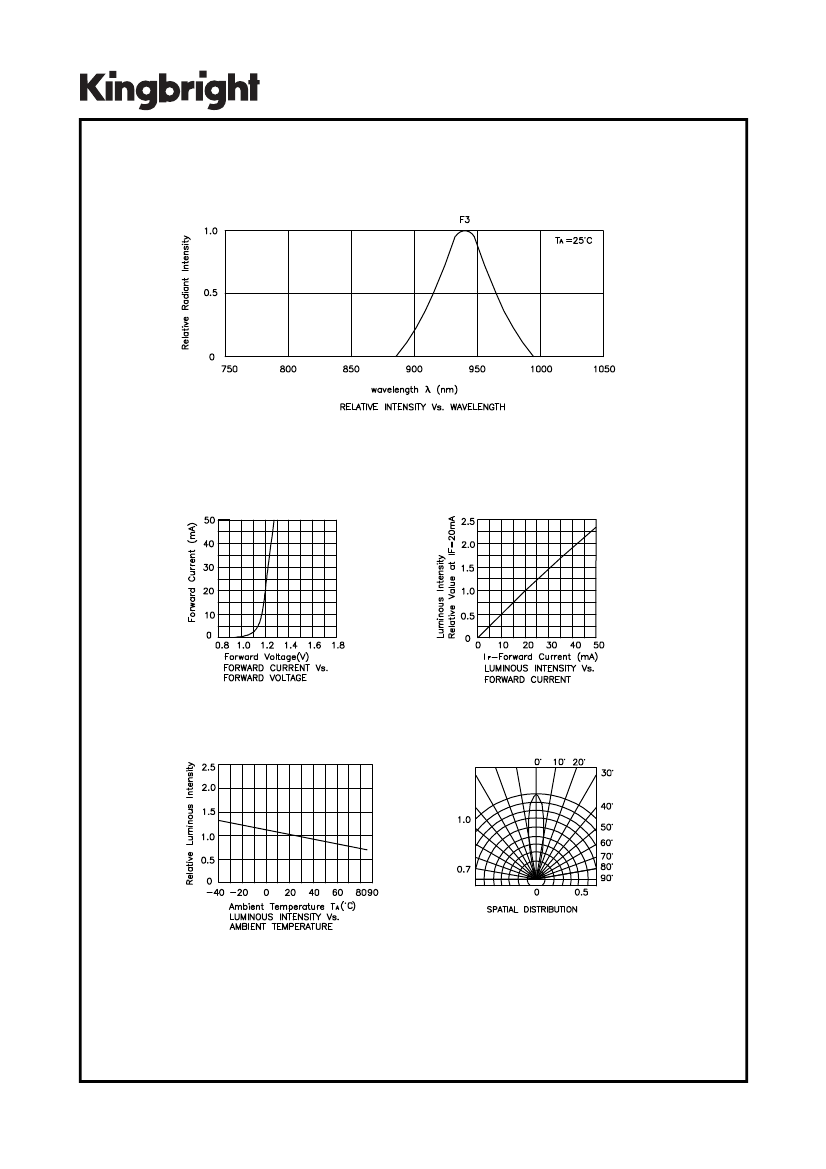

L-7113F3C
Remarks:
If special sorting is required (e.g. binning based on forward voltage or radiant intensity/ luminous flux),
the typical accuracy of the sorting process is as follows:
1. Radiant Intensity/ Luminous Flux: +/-15%
2. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAB6712
APPROVED: J. Lu
REV NO: V.7
CHECKED: Allen Liu
DATE: NOV/01/2005
DRAWN: F.LI
PAGE: 3 OF 3
