L-7113GD-12V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-7113GD-12V

L-7113GD-12V: DescriptionSingle Color LED, Green, Diffused Green, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size63KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-7113GD-12V Overview

Single Color LED, Green, Diffused Green, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2

L-7113GD-12V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	483536
Samacsys Pin Count	2
Samacsys Part Category	LED
Samacsys Package Category	Other
Samacsys Footprint Name	L-7143QBC-D-1
Samacsys Released Date	2019-05-23 11:22:50
Is Samacsys	N
Other features	HIGH RELIABILITY
color	GREEN
color@wavelength	Green
Configuration	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.0115 A
Maximum forward voltage	14 V
Lens type	DIFFUSED GREEN
minimum luminous intensity	30 cd
Nominal luminous intensity	20.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	565 nm
Maximum reverse voltage	5 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	30 deg
Base Number Matches	1

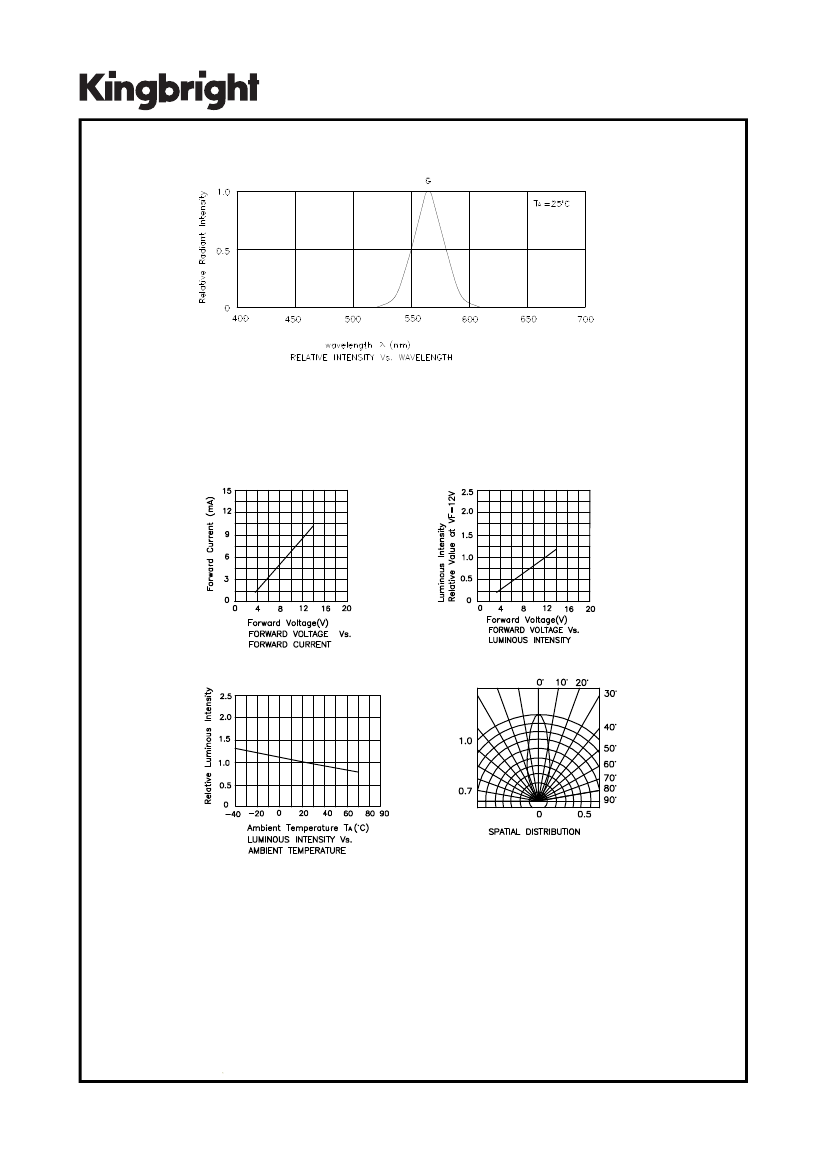

Preview

Download Datasheet

View All

T-1 3/4 (5mm) SOLID STATE LAMP

L-7113GD-12V

GREEN

Features

zLOW

POWER CONSUMPTION.

zGENERAL

PURPOSE LEADS.

zRELIABLE

AND RUGGED.

Description

The Green source color devices are made with

Gallium Phosphide Green Light Emitting Diode.

zPOPULAR

T-1 3/4 DIAMETER PACKAGE.

zLONG

LIFE - SOLID STATE RELIABILITY.

zAVAILABLE

ON TAPE AND REEL.

z12V

INTERNAL RESISTOR.

zRoHS

COMPLIANT.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.25(0.01") unless otherwise noted.

3. Lead spacing is measured where the leads emerge from the package.

4. Specifications are subject to change without notice.

SPEC NO: DSAE8451

APPROVED: J. Lu

REV NO: V.2

CHECKED: Allen Liu

DATE: MAR/22/2005

DRAWN: H.Q.YUAN

PAGE: 1 OF 3
