ASSR-1228-002E: DescriptionTransistor Output SSR, 2-Channel, 3750V Isolation, 0.300 INCH, ROHS COMPLIANT, DIP-8; CategoryLED optoelectronic/LED photoelectric; File Size313KB，12 Pages; ManufacturerBroadcom; Environmental Compliance

Download Datasheet Parametric Compare View All

ASSR-1228-002E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ASSR-1228-002E	-	-	View	Buy Now

ASSR-1228-002E Overview

Transistor Output SSR, 2-Channel, 3750V Isolation, 0.300 INCH, ROHS COMPLIANT, DIP-8

ASSR-1228-002E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Broadcom
package instruction	0.300 INCH, ROHS COMPLIANT, DIP-8
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	231531
Samacsys Pin Count	8
Samacsys Part Category	Integrated Circuit
Samacsys Package Category	Dual-In-Line Packages
Samacsys Footprint Name	8-Pin DIP
Samacsys Released Date	2015-08-19 08:23:55
Is Samacsys	N
Other features	UL RECOGNIZED, CMOS COMPATIBLE
Configuration	SEPARATE, 2 ELEMENTS
control current	0.003 A
control voltage	1.1 V
Maximum forward current	0.02 A
input type	DC
Maximum insulation voltage	3750 V
JESD-609 code	e3
Number of components	2
Maximum on-state current	0.2 A
Maximum on-state resistance	10 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Output circuit type	MOSFET
total height	3.7 mm
total length	9.9 mm
Terminal surface	Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

ASSR-1218 , ASSR-1219 and ASSR-1228

Form A, Solid State Relay (Photo MOSFET)

(60V/0.2A/10Ω)

Data Sheet

Description

The ASSR-12XX Series consists of an AlGaAs infrared

light-emitting diode (LED) input stage optically coupled

to a high-voltage output detector circuit. The detector

consists of a high-speed photovoltaic diode array and

driver circuitry to switch on/off two discrete high volt-

age MOSFETs. The relay turns on (contact closes) with a

minimum input current of 3mA through the input LED.

The relay turns off (contact opens) with an input volt-

age of 0.8V or less.

The single channel configurations, ASSR-1218 and

ASSR-1219, are equivalent to 1 Form A Electromechani-

cal Relays (EMR), and the dual channel configuration,

ASSR-1228, is equivalent to 2 Form A EMR. They are

available in 4-pin SO, 6-pin DIP, 8-pin DIP and Gull Wing

Surface Mount for DIP packages. ASSR-1219 enables

AC/DC and DC-only output connections. For DC-only

connection, the output current, Io, increases to 0.4A

and the on-resistance, R(ON) reduces to 2.5Ω.

Features

•

Compact Solid-State Bi-directional Signal Switch

•

Single and Dual Channel Normally-off Single-Pole-

Single-Throw (SPST) Relay

•

60V Output Withstand Voltage

•

0.2A or 0.4A Current Rating

(See Schematic for ASSR-1219 Connection A and B)

•

Low Input Current: CMOS Compatibility

•

Low On-Resistance: 0.25Ω Typical for DC-only,

1Ω Typical for AC/DC

•

High Input-to-Output Insulation Voltage

(Safety and Regulatory Approved)

- 3750 Vrms for 1 min per UL1577

- CSA Component Acceptance

Applications

•

Telecommunication Switching

Data Communications

Industrial Controls

Medical

Security

EMR / Reed Relay Replacement

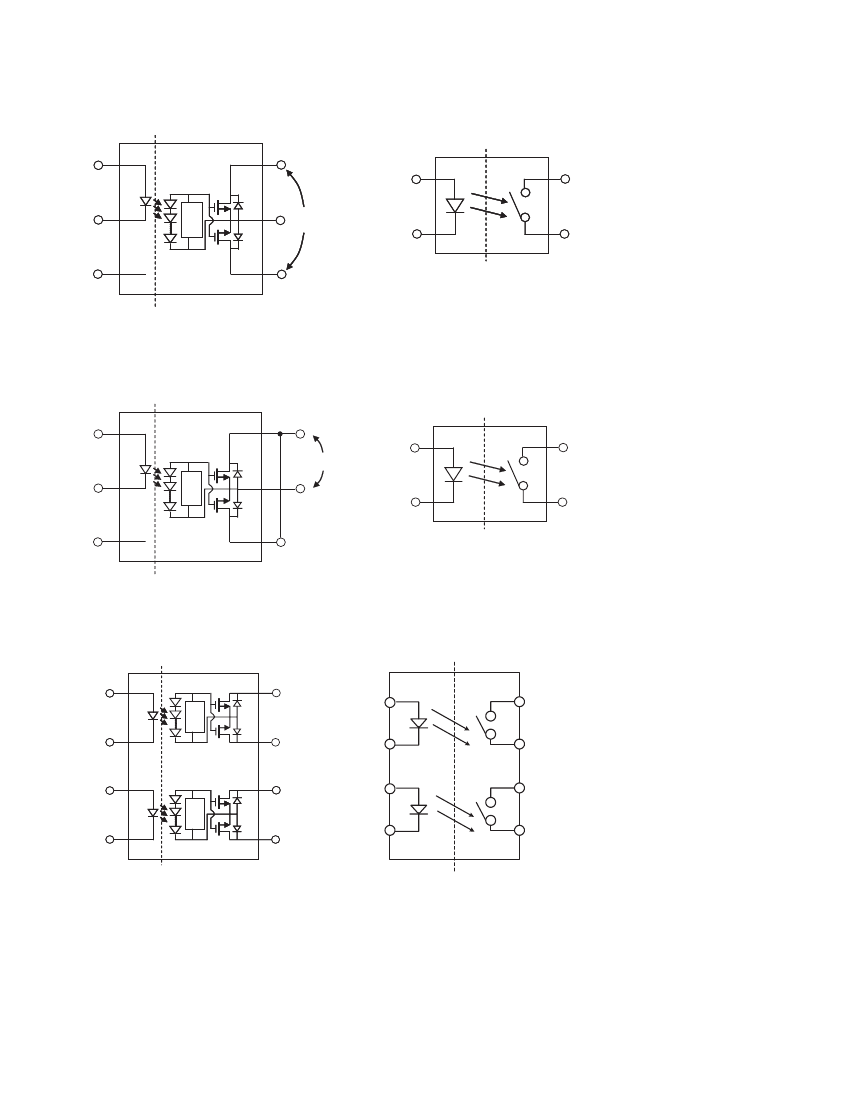

Functional Diagram

Opto-isolation

Turn-off

Circuit

Truth Table

LED

Off

Output

Open

Single Channel, SPST Relay,

1 Form A in 4-Pin SO Package

CAUTION

: It is advised that normal static precautions be taken in handling and assembly

of this component to prevent damage and/or degradation which may be induced by ESD.

ASSR-1228-002E Related Products

	ASSR-1228-002E	ASSR-1219-001E	ASSR-1228-302E	ASSR-1228-502E	BVB02/A0320/71	BZH22/A0620/B1	PS25/B0220/6310
Description	Transistor Output SSR, 2-Channel, 3750V Isolation, 0.300 INCH, ROHS COMPLIANT, DIP-8	Transistor Output SSR, 1-Channel, 3750V Isolation, 0.300 INCH, ROHS COMPLIANT, DIP-6	Transistor Output SSR, 2-Channel, 3750V Isolation, 0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8	Transistor Output SSR, 2-Channel, 3750V Isolation, 0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8	Mains Power Connector, 3A, 250VAC, Male	Mains Power Connector, Female and Male, Solder Terminal	Mains Power Connector, 2A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compli	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
package instruction	0.300 INCH, ROHS COMPLIANT, DIP-8	0.300 INCH, ROHS COMPLIANT, DIP-6	0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8	0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8	-	-	ROHS COMPLIANT
Other features	UL RECOGNIZED, CMOS COMPATIBLE	UL RECOGNIZED, CMOS COMPATIBLE	UL RECOGNIZED, CMOS COMPATIBLE	UL RECOGNIZED, CMOS COMPATIBLE	-	-	STANDARDS: CSA, ENEC, UL, VDE
Configuration	SEPARATE, 2 ELEMENTS	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	-	-	-
control current	0.003 A	0.003 A	0.003 A	0.003 A	-	-	-
control voltage	1.1 V	1.1 V	1.1 V	1.1 V	-	-	-
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	-	-	-
input type	DC	DC	DC	DC	-	-	-
Maximum insulation voltage	3750 V	3750 V	3750 V	3750 V	-	-	-
JESD-609 code	e3	e3	e3	e3	-	-	-
Number of components	2	1	2	2	-	-	-
Maximum on-state current	0.2 A	0.2 A	0.2 A	0.2 A	-	-	-
Maximum on-state resistance	10 Ω	10 Ω	10 Ω	10 Ω	-	-	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	-	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-	-
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	-	-	-
Output circuit type	MOSFET	MOSFET	MOSFET	MOSFET	-	-	-
total height	3.7 mm	4.7 mm	3.7 mm	3.7 mm	-	-	-
total length	9.9 mm	9.9 mm	9.9 mm	9.9 mm	-	-	-
Terminal surface	Tin (Sn)	Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	-	-	-
Base Number Matches	1	1	1	1	-	-	-
