IMX 7 Series
7 Watt DC-DC Converters
Wide input voltage ranges up to 150 V DC
1 or 2 outputs up to 48 V DC
1500...2500 V DC I/O electric strength test
LGA
• Magnetic feedback for single output models
• Short circuit protection
• Industry standard 2" x 1" case with 10.5 mm
profile
Selection chart
Output 1
Output 2
Input voltage
Type
Options
1, 2
U
o nom
I
o nom
U
o nom
I
o nom
U
i
-8, M, C, L, Z
-8, M, C, L, Z
-8, M
-8, M
-8, M, C, L, Z
-8, M, C, L, Z
-8, M
-8, M
-8
-8
-8
-8
-8
-8
-8, M, C, L, Z
-8, M, C, L, Z
-8, M
-8, M
-8, M, C, L, Z
-8, M, C, L, Z
-8, M
-8, M
-8, M, C, L, Z
-8, M, C, L, Z
-8, M
-8, M
-8, M, C, L, Z
-8, M, C, L, Z
-8, M
-8, M
[V DC]
[A]
[V DC]
[mA]
[V DC]
3.3
1.5
-
-
8.4...36
20 IMX 7-03-9
3.3
1.5
-
-
16.8...75
40 IMX 7-03-9
3
3.3
1.5
-
-
40...121
70 IMX 7-03-9
3.3
1.5
-
-
60...150
110 IMX 7-03-9
5.1
1.2
-
-
8.4...36
20 IMX 7-05-9
5.1
1.2
-
-
16.8...75
40 IMX 7-05-9
3
5.1
1.2
-
-
40...121
70 IMX 7-05-9
5.1
1.2
-
-
60...150
110 IMX 7-05-9
12
0.5
-
-
8.4…36
20 IMX 7-12-9C
12
0.6
-
-
16.8…75
40 IMX 7-12-9C
3
15
0.4
-
-
8.4…36
20 IMX 7-15-9C
15
0.48
-
-
16.8…75
40 IMX 7-15-9C
3
24
0.26
-
-
8.4…36
20 IMX 7-24-9C
24
0.3
-
-
16.8…75
40 IMX 7-24-9C
3
5
0.7
5
0.7
8.4...36
20 IMX 7-05-05-9
5
0.7
5
0.7
16.8...75
40 IMX 7-05-05-9
3
5
0.7
5
0.7
40...121
70 IMX 7-05-05-9
5
0.7
5
0.7
60...150
110 IMX 7-05-05-9
12
0.3
12
0.3
8.4...36
20 IMX 7-12-12-9
12
0.3
12
0.3
16.8...75
40 IMX 7-12-12-9
3
12
0.3
12
0.3
40...121
70 IMX 7-12-12-9
12
0.3
12
0.3
60...150
110 IMX 7-12-12-9
15
0.24
15
0.24
8.4...36
20 IMX 7-15-15-9
15
0.24
15
0.24
16.8...75
40 IMX 7-15-15-9
3
15
0.24
15
0.24
40...121
70 IMX 7-15-15-9
15
0.24
15
0.24
60...150
110 IMX 7-15-15-9
24
0.15
24
0.15
8.4...36
20 IMX 7-24-24-9
24
0.15
24
0.15
16.8...75
40 IMX 7-24-24-9
3
24
0.15
24
0.15
40...121
70 IMX 7-24-24-9
24
0.15
24
0.15
60...150
110 IMX 7-24-24-9
1
For minimum order quantity and lead time contact Power-One.
2
Option M, C, L and Z exclude each other.
3
Operation at lower input voltage possible:
P
approx. 80% of
P
o
o nom
at
U
i min
= 14.4 V
www.power-one.com
Edition 4/04.2001
1
Board Mountable
Input
Input voltage range
20 IMX 7
40 IMX 7
70 IMX 7
110 IMX 7
IMX 7 Series
8.4...36 V DC
16.8...75 V DC
40...121 V DC
60...150 V DC
Output
Output voltage setting accuracy
U
i nom
,
50%
l
o nom
, single output models
±0.5%
U
o nom
U
i nom
,
50%
l
o nom
, double outp., main/aux. outp.
±1%
/±1.2%
U
o nom
Minimum load
recommended for double output models
10%
l
o nom
Line/load regulation
U
i min
...U
i max
, 50%
l
o nom
, single output models
±1%
U
o nom
Line regulation
U
i nom
, 50%
l
o nom
, double output models
±1%
U
o nom
Load regulation
U
i nom
, 10...100%
l
o nom
, double outp. models, main outp.
±3%
U
o nom
tracking output
±3%
U
o nom
Output voltage switching noise
U
i nom
, 0...100%
l
o nom
, peak-peak, total
max. 1.5%
U
o nom
Efficiency
U
i nom
,
l
o nom
up to 84%
Control and protection
Input protection
Overload protection
No-load protection
Remote shut down
Trim input for
U
o
suppressor diode
U
i min
...U
i max
, fully protected, hiccup mode
TTL-compatible inhibit input
disabled with
≥2.4
V
Safety and EMC
Electric strength test voltage
Electromagnetic interference
I/O (20/40/70/110 IMX7)
with external filter
1500/1500/2000/2500 V DC
class B
Environmental
Operating ambient temperature
Storage temperature
Relative humidity
MTBF
U
i nom
,
l
o nom
non operational
non condensing
G
B
40°C, MIL-HDBK-217F, N2
–25...71°C
–40...100°C
93%
1'650'000 h
Options
Extended temperature range
SMD version
SMD version
Open frame without case
C-pinout
–40...85°C, ambient, operating
with pins
with adapter PCB
-8
M
L
Z
C
Accessories
DIN and chassis mounting bracket
www.power-one.com
Edition 4/04.2001
2
Board Mountable

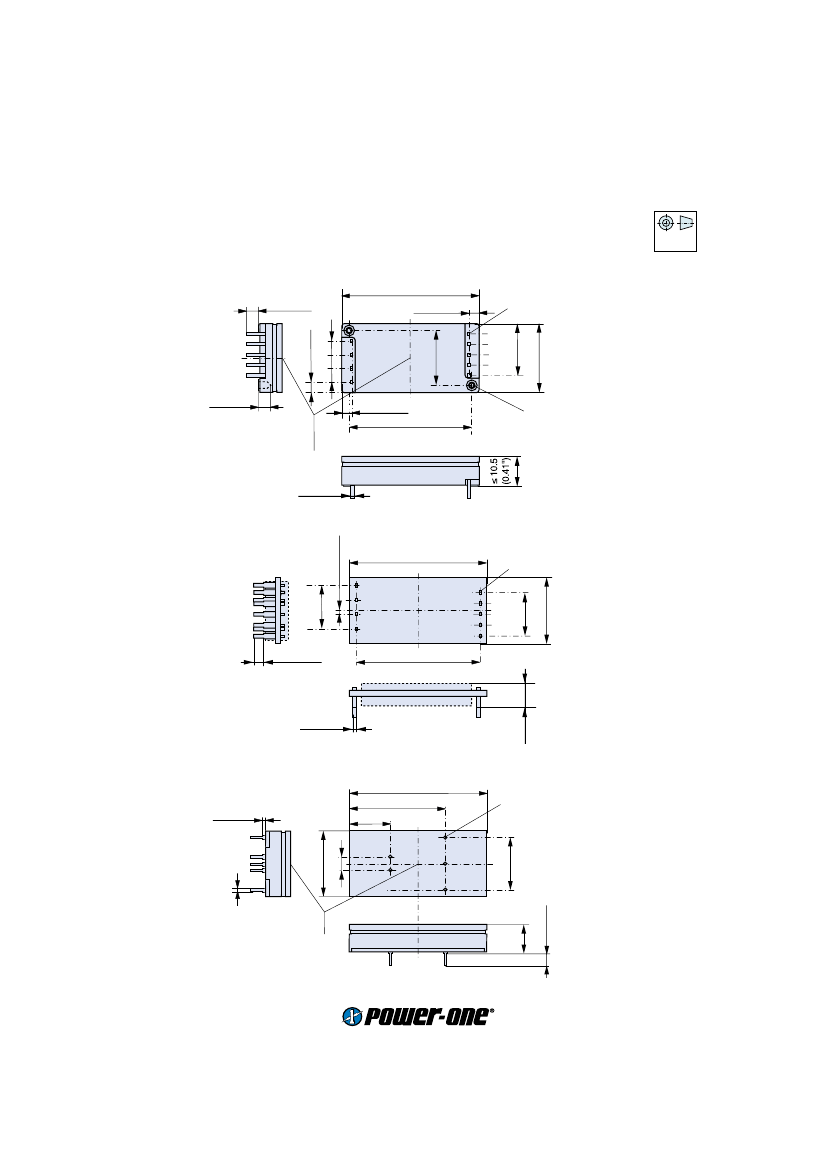

IMX 7 SMD version (option M)
3 x 5.08 (0.2")
50.8 (2")
14
IMX 7 Series
0.8
×
1.2 (0.03 x 0.05") Pins
3.81(0.15")
1.2 (0.45")
4
42.4 (1.67")
10
Measuring point of
case temperature
T
C
S09031
4.2 (0.17")
IMX 7 SMD version (option L)
50.8 (2")
Proposed solder lands
2.8 (0.11")
24 (0.94")
18
25.4 (1")
3.6 (1.4")
Foot print
8 x 5 (1.9")
1
25.4 (1")
1
Pin allocation IMX 7, option M and Z
Pin
1
2
3
4
10
11
12
13
14
Single output
Vi+
Vi–
i
n.c.
Vo–
Vo+
Vo–
R
n.c.
Dual output
Vi+
Vi–
i
R (Trim)
Vo1–
Vo1+
Vo2–
Vo2+
n.c.
SMD version (option L)
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Single output
Vo
Go
n.c.
n.c.
n.c.
n.c.
n.c.
n.c.
n.c.
n.c.
i
no pin
no pin
n.c.
n.c.
n.c.
Vi–
Vi+
Dual output
Vo1
Go
Vo2
n.c.
n.c.
n.c.
n.c.
n.c.
Trim
n.c.
i
no pin
no pin
n.c.
n.c.
n.c.
Vi–
Vi+
C pinout (option C)
Pin
1
2
3
4
5
Single output
Vi+
Vi–
Vo+
no pin
Vo–
Dual output
Vi+
Vi–
Vo+
Go
Vo–
10.5
(0.41")
Measuring point of
case temperature
T
C
90001
5 x 3.81
(0.15")
www.power-one.com
Edition 4/04.2001
4
