SD Series
Low Profile DIP Switches
Features/Benefits
•
Low profile design saves space
•
Thru-hole and surface mount models
•
Tape and reel packaging available
•
Sealed with top tape
•
RoHS compliant
Typical Applications
•
Address switch for industrial
controls
•
Logic switching for computers
and peripherals
•
Function controlling for
numerous applications
H
DIP
Specifications
SWITCH FUNCTION: SPST - 2, 3, 4, 5, 6, 7, 8, 9, 10 & 12
positions
CONTACT RATING:
Carry: 100 mA @ 50 V DC max.
Switch: 0.1 mA @ 5 V DC min to 100 mA @ 25 V DC max.
MECHANICAL AND ELECTRICAL LIFE: 2,000 make-and-break
cycles at full load, each circuit.
CONTACT RESISTANCE: Below 50 milliohms typ. initial
@ 2-4 V DC, 100mA.
INSULATION RESISTANCE: 10
9
ohms min.
DIELECTRIC STRENGTH: 500 V RMS min. @ sea level between
adjacent terminals.
STORAGE TEMPERATURE: -40°C to 85°C.
OPERATING TEMPERATURE: -40°C to 85°C.
OPERATING FORCE: 100-700g inital.
PACKAGING: Thru-hole switches supplied in rigid dispensing tubes in
full-tube quantities only: this may effect order quantity. Surface
mount switches available in tape and reel packaging by added ‘R’
to end of part number; 1,000 pieces per reel. Switch position 1
denotes pin number 1. All switch actuators in ‘OFF’ position,
standard.
Materials
CASE & COVER: (PPA), flame retardant (UL 94V-0)
ACTUATOR: Nylon, flame retardant (UL 94V-0)
CONTACTS: BeCu with gold plate.
TERMINALS: Bright tin-plated brass.
TERMINAL SEAL: All terminals insert molded.
TAPE SEAL: Polyimide.
Note:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
How To Order
The Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete
listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.
S D
Number
of Positions
SD02
SD07
SD03
SD08
SD04
SD09
SD05
SD10
SD06
SD12
Packaging
(None)
Tubes
R
Tape and Reel
Actuator
H0
Flush Actuator “OFF” position
H1
Extended Actuator “OFF” position
H2
Flush Actuator “ON” position
H3
Extended Actuator “ON” position
Terminations
S
Gull wing
(None)
PC ThruHole
Process Seal
(None)
Tape seal
D
No tape seal
Contact Material
B
Gold 10µ IN
B1
Gold 30µ IN *
* Consult factory for availability
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H–13
www.ck-components.com
SD Series
Low Profile DIP Switches

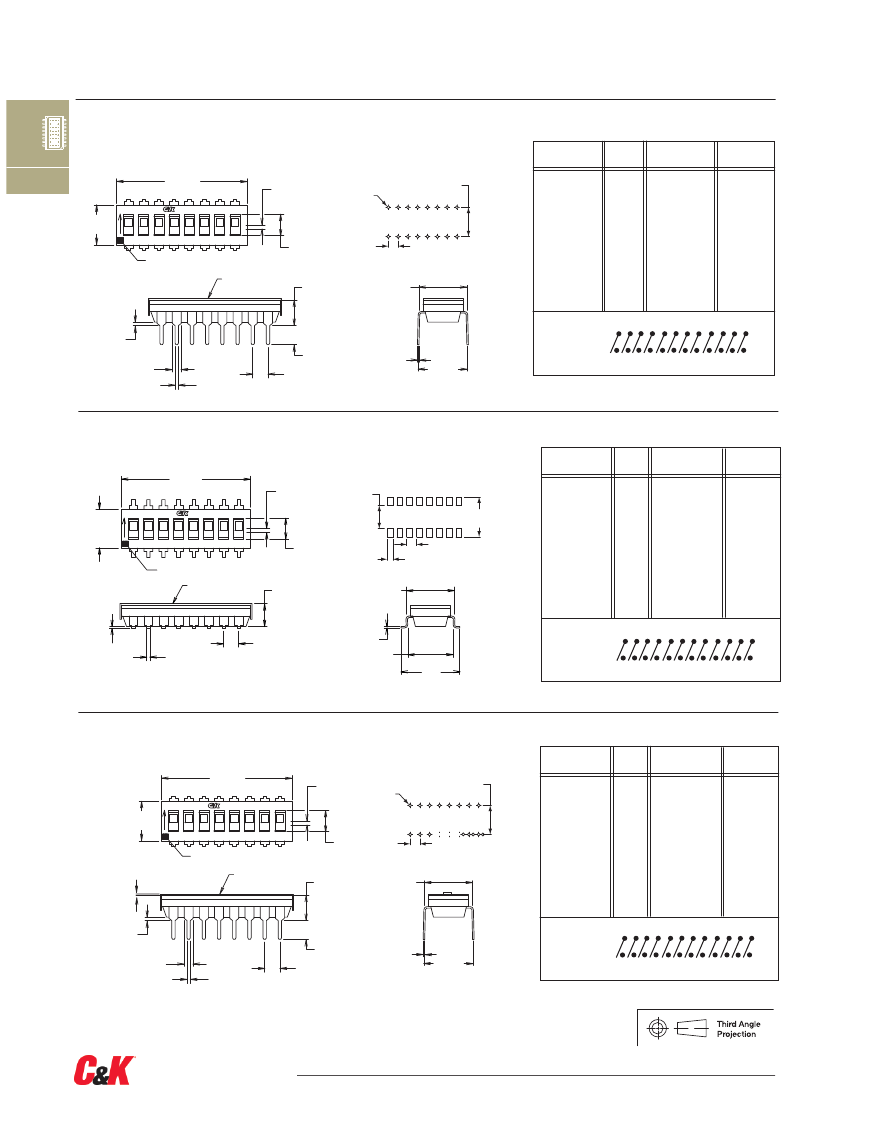

Sealed Flush Actuator – With Top Tape, Thru-hole Terminals
Process sealed - withstands soldering and cleaning processes
ROHS
PART NUMBER
NO.
POS.
2
3
4
5
6
7
8
9
10
12
DIM. ‘A’
.258 (6,55)
.358 (9,09)
.458 (11,63)
.558 (14,17)
.658 (16,71)
.758 (19,25)
.858 (21,79)
.958 (24,33)
1.058 (26,87)
1.258 (31,95)
QUANTITY
PER TUBE
85
60
45
40
30
25
25
20
20
15
H
DIP
ON
.263
(6,68)
1
2
3
DIM. 'A'
SEE CHART
.027
(0,70)
ACTUATOR TRAVEL
Ø.038
(0,97)
TYP.
.300 TYP.
(7,6)
4
5
6
7
8
.142
(3,62)
ORIENTATION MARK
PEELABLE
TAPE SEAL
.168 TYP.
(4,27)
.100
(2,54)
TYP.
.315 TYP.
(8,00)
SD02H0B
SD03H0B
SD04H0B
SD05H0B
SD06H0B
SD07H0B
SD08H0B
SD09H0B
SD10H0B
SD12H0B
Schematic
.023 TYP.
(0,60)
STANDOFF
.059 TYP.
(1,50)
.022 TYP.
(0,55)
.126 TYP.
(3,20)
.100 TYP.
(2,54)
.010 TYP.
(0,25)
.325 TYP.
(8,25)
SPST
Table applicable to “H0” and “H2” actuator options.

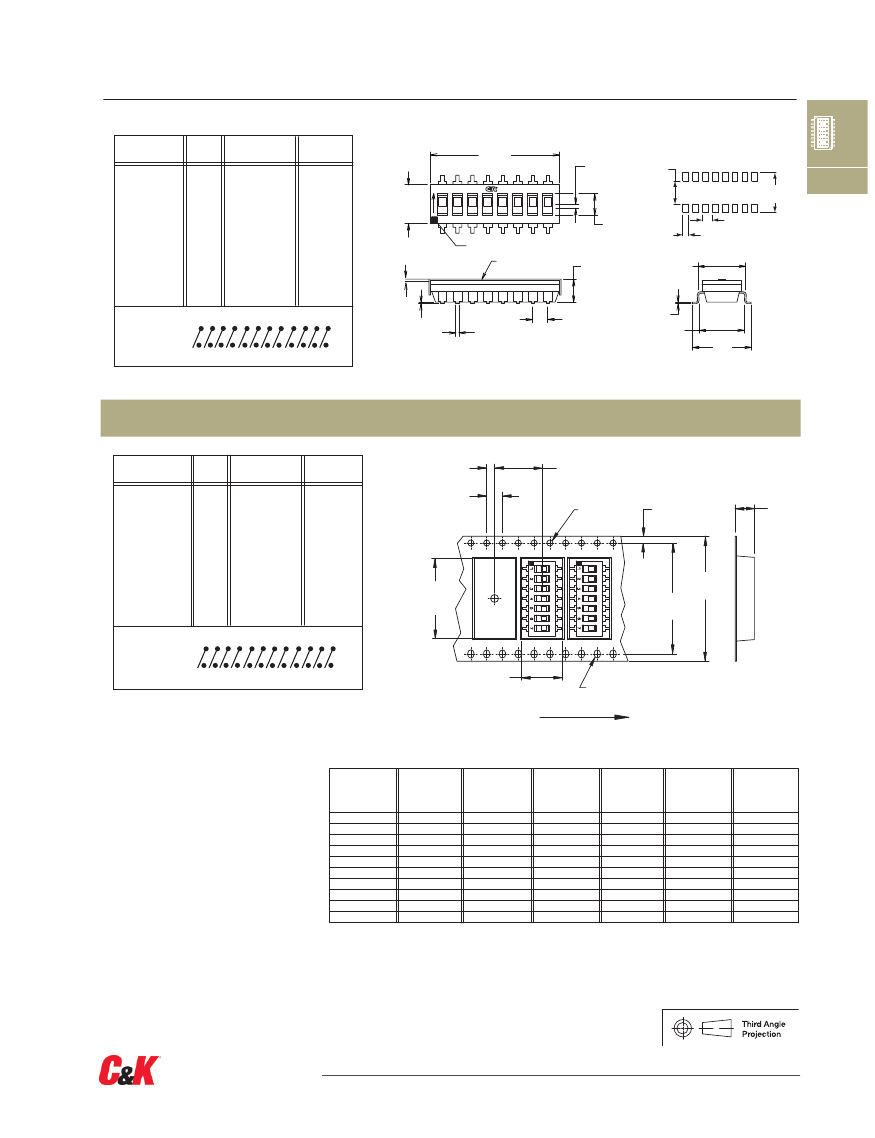

Sealed Flush Actuator – With Top Tape, Surface Mount Terminals
RoHS
PART NUMBER
NO.
POS.
2
3
4
5
6
7
8
9
10
12
DIM. ‘A’
.258 (6,55)
.358 (9,09)
.458 (11,63)
.558 (14,17)
.658 (16,71)
.758 (19,25)
.858 (21,79)
.958 (24,33)
1.058 (26,87)
1.258 (31,95)
QUANTITY
PER TUBE
85
60
45
40
30
25
25
20
20
15
DIM. 'A'
SEE CHART
ON
.263
(6,68)
1
2
3
4
5
6
7
8
.027
(0,70)
ACTUATOR
TRAVEL
.243 TYP.
(6,17)
.435 MIN.
(11,05)
.142
(3,62)
.160
(4,06)
WITH
TAPE
ORIENTATION MARK
PEELABLE
TAPE SEAL
.044 MIN.
(1,12)
.315 TYP.
(8,00)
.100
(2,54)
TYP.
SD02H0SB
SD03H0SB
SD04H0SB
SD05H0SB
SD06H0SB
SD07H0SB
SD08H0SB
SD09H0SB
SD10H0SB
SD12H0SB
Schematic
.010 TYP.
(0,25)
STANDOFF
.022 TYP.
(0,55)
.100 TYP.
(2,54)
.010 TYP.
(0,25)
.300
(7,62)
.390
(9,91)
SPST
Table applicable to “H0” and “H2” actuator options.
Sealed Extended Actuator – With Top Tape, Thru-hole Terminals
DIM. 'A'
SEE CHART
ON
.263
(6,68)
1
2
3
4
5
6
7
8
.142
(3,62)
.027
(0,70)
ACTUATOR
TRAVEL
RoHS
PART NUMBER
NO.
POS.
2
3
4
5
6
7
8
9
10
12
DIM. ‘A’
.258 (6,55)
.358 (9,09)
.458 (11,63)
.558 (14,17)
.658 (16,71)
.758 (19,25)
.858 (21,79)
.958 (24,33)
1.058 (26,87)
1.258 (31,95)
QUANTITY
PER TUBE
85
60
45
40
30
25
25
20
20
15
Ø.038
(0,97)
TYP.
.300 TYP.
(7,6)
ORIENTATION MARK
.010 TYP.
(0,25)
PEELABLE
TAPE SEAL
.168 TYP.
(4,30)
.100
(2,54)
TYP.
.315 TYP.
(8,00)
SD02H1B
SD03H1B
SD04H1B
SD05H1B
SD06H1B
SD07H1B
SD08H1B
SD09H1B
SD10H1B
SD12H1B
Schematic
.023 TYP.
(0,60)
STANDOFF
.059 TYP.
(1,50)
.022 TYP.
(0,55)
.126 TYP.
(3,20)
.100 TYP.
(2,54)
.010 TYP.
(0,25)
.325 TYP.
(8,25)
SPST
Table applicable to “H1” and “H3” actuator options.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H–14
www.ck-components.com
