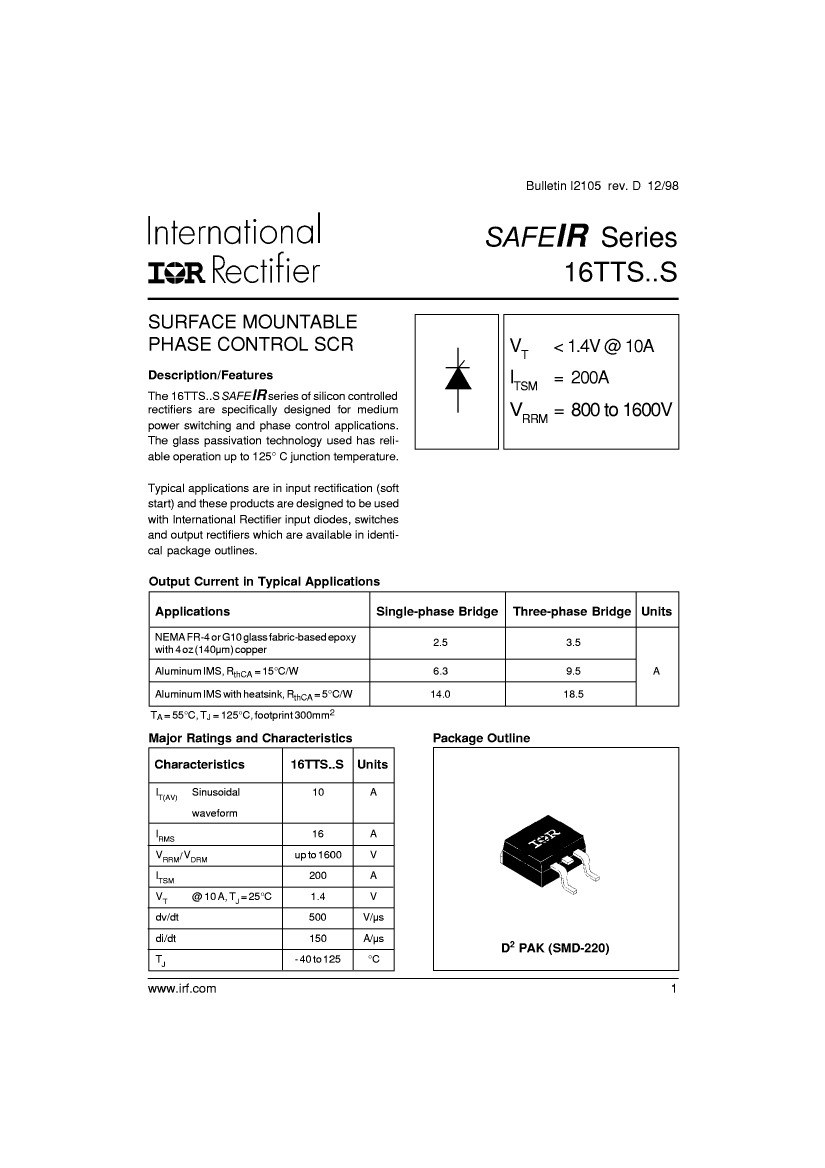

16TTS12STRLPBF Overview

Silicon Controlled Rectifier, 16A I(T)RMS, 10000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element,

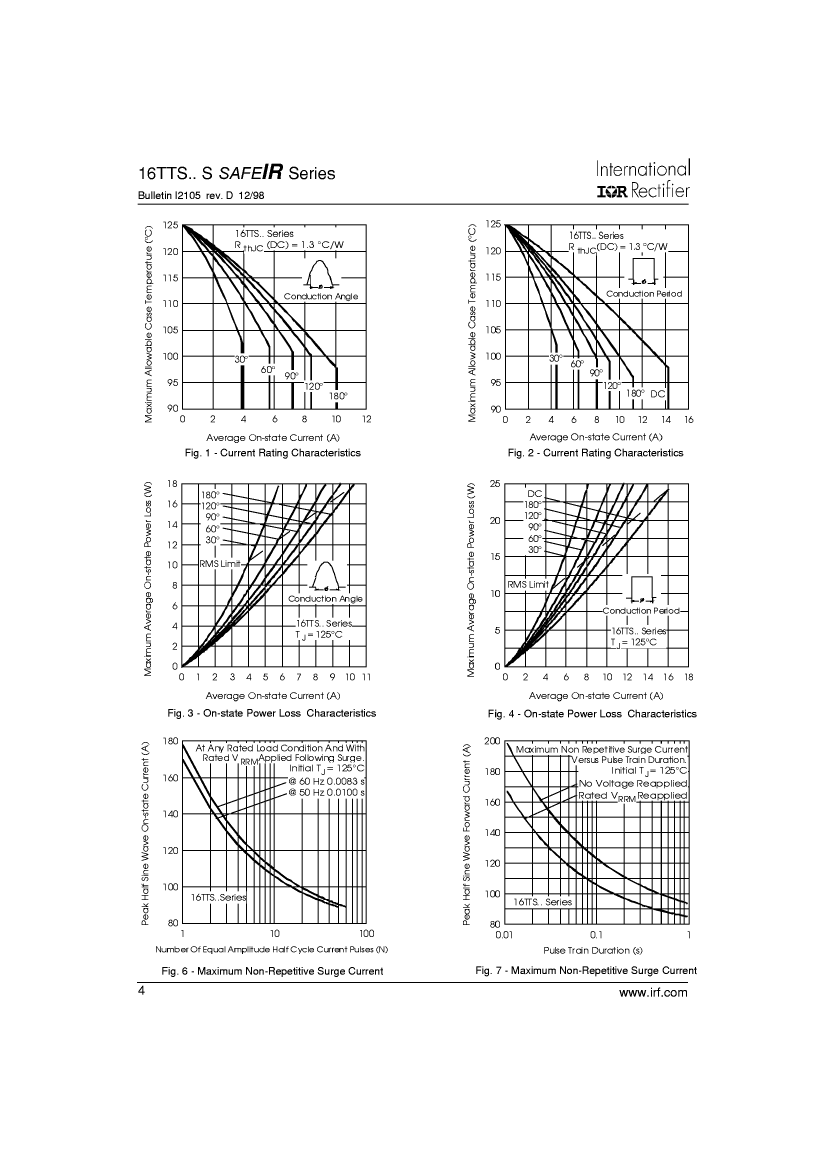

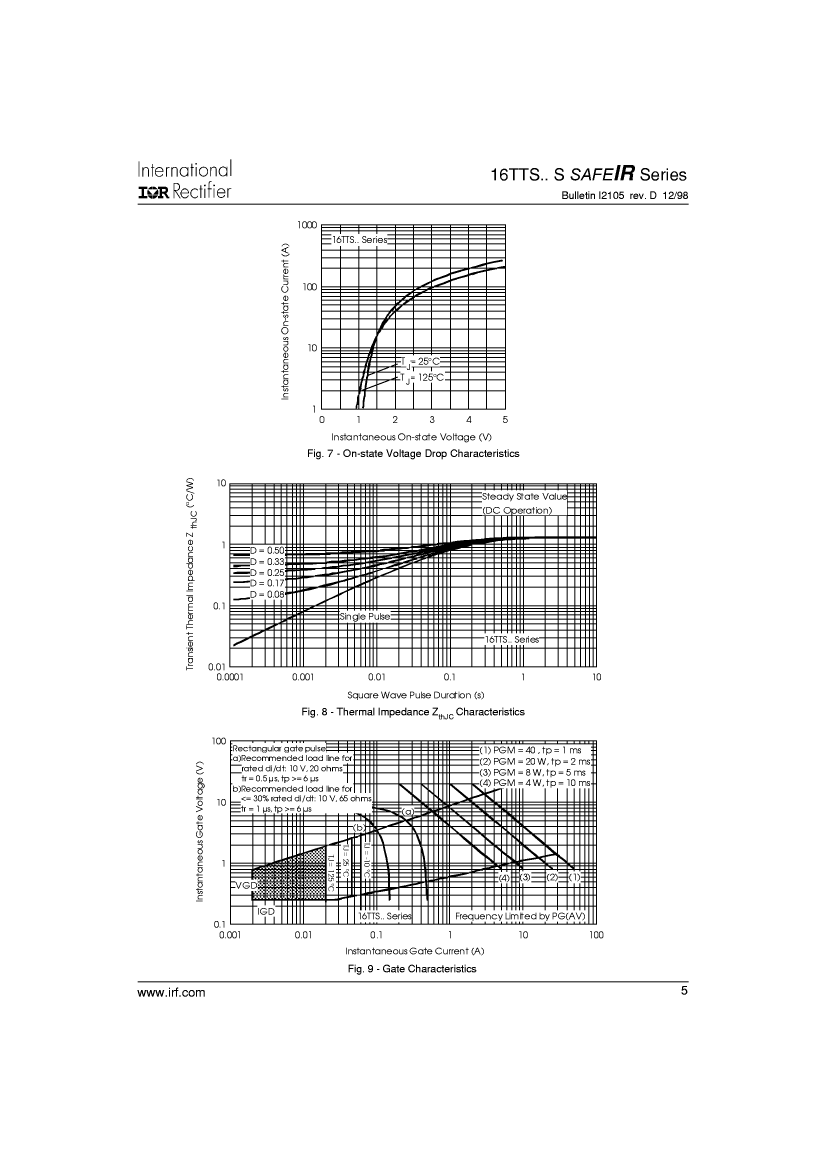

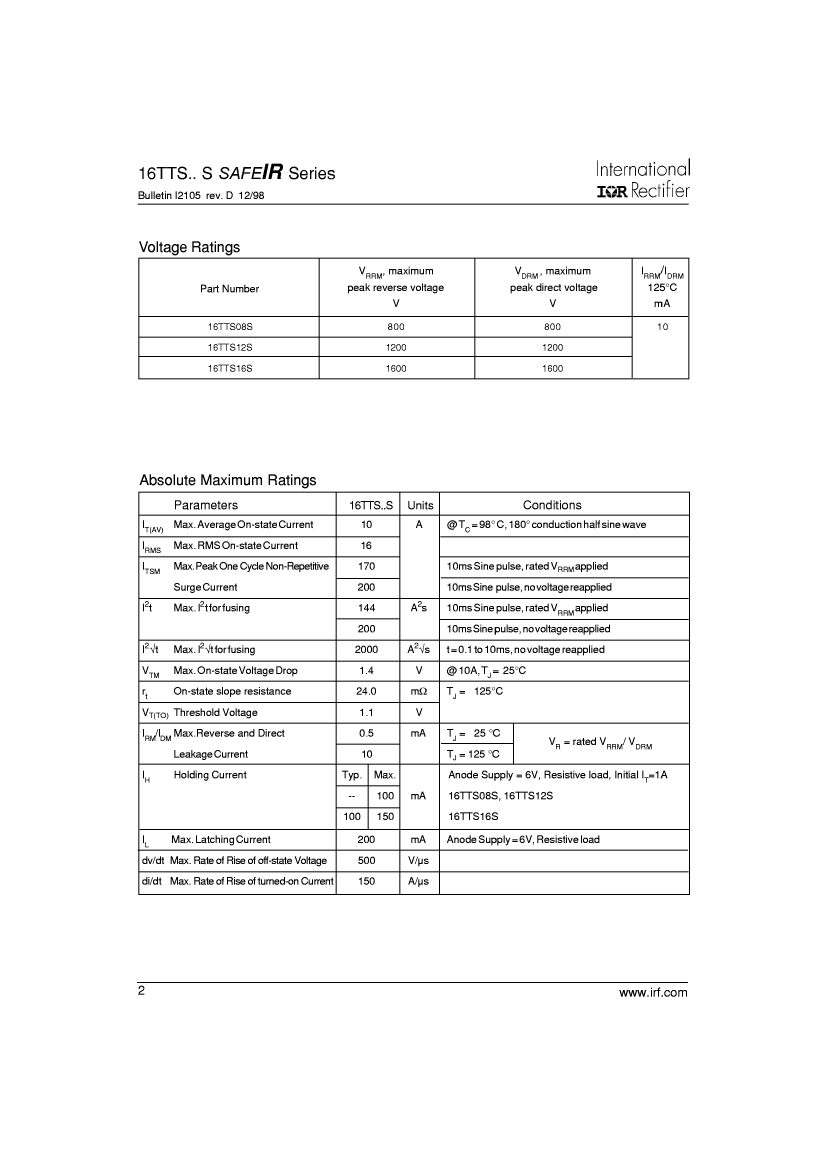

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	compliant
Is Samacsys	N
Shell connection	ANODE

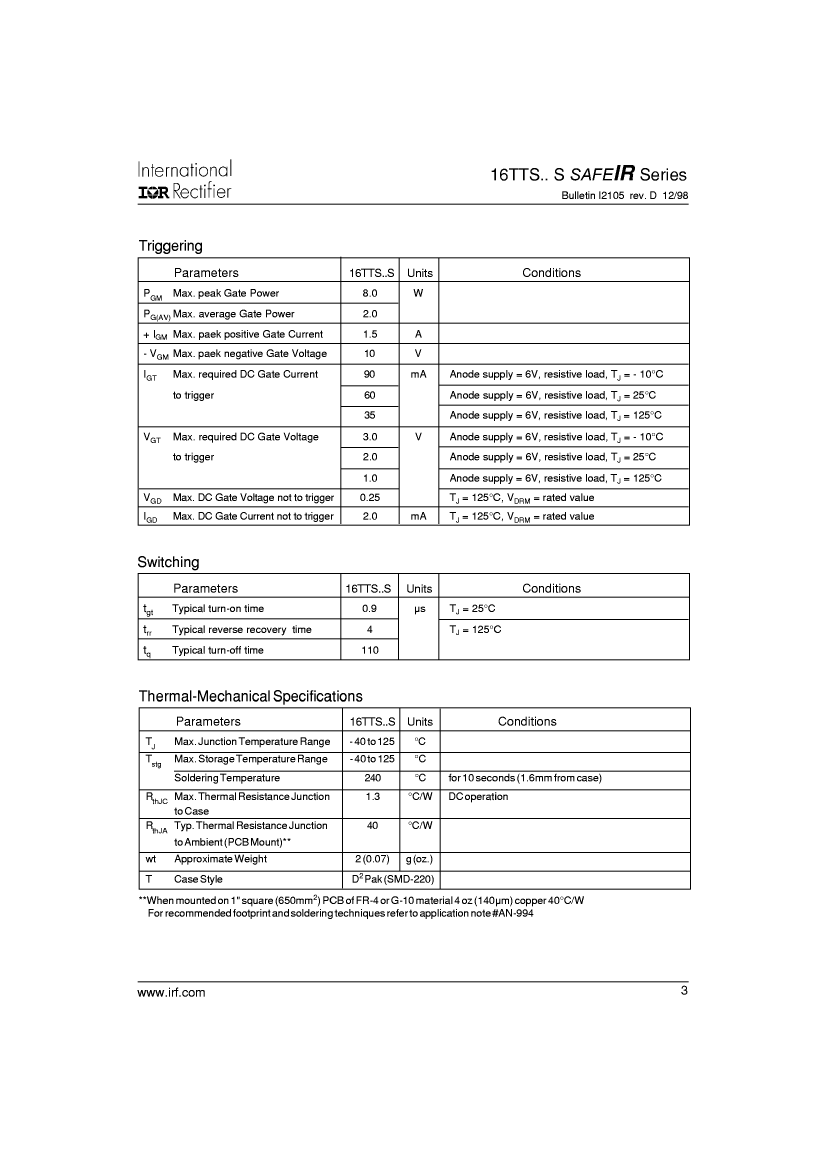

Nominal circuit commutation break time	110 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	500 V/us
Maximum DC gate trigger current	60 mA
Maximum DC gate trigger voltage	3 V
Maximum holding current	100 mA
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
Maximum leakage current	10 mA
Humidity sensitivity level	1
On-state non-repetitive peak current	200 A
Number of components	1
Number of terminals	2
Maximum on-state current	10000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum rms on-state current	16 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	YES
Terminal surface	MATTE TIN OVER NICKEL
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	30
Trigger device type	SCR
Base Number Matches	1

	16TTS12STRLPBF	CX12BZ-A1B1C2100-24.0D20-3
Description	Silicon Controlled Rectifier, 16A I(T)RMS, 10000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element,	Parallel - 3Rd Overtone Quartz Crystal, 24MHz Nom,
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
Maximum operating temperature	125 °C	70 °C
Minimum operating temperature	-40 °C	-10 °C
surface mount	YES	YES
