SC-1S1-GT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> SC-1S1-GT

SC-1S1-GT: DescriptionPCB Terminal; CategoryThe connector terminals; File Size568KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

SC-1S1-GT Overview

PCB Terminal

SC-1S1-GT Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	SC
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

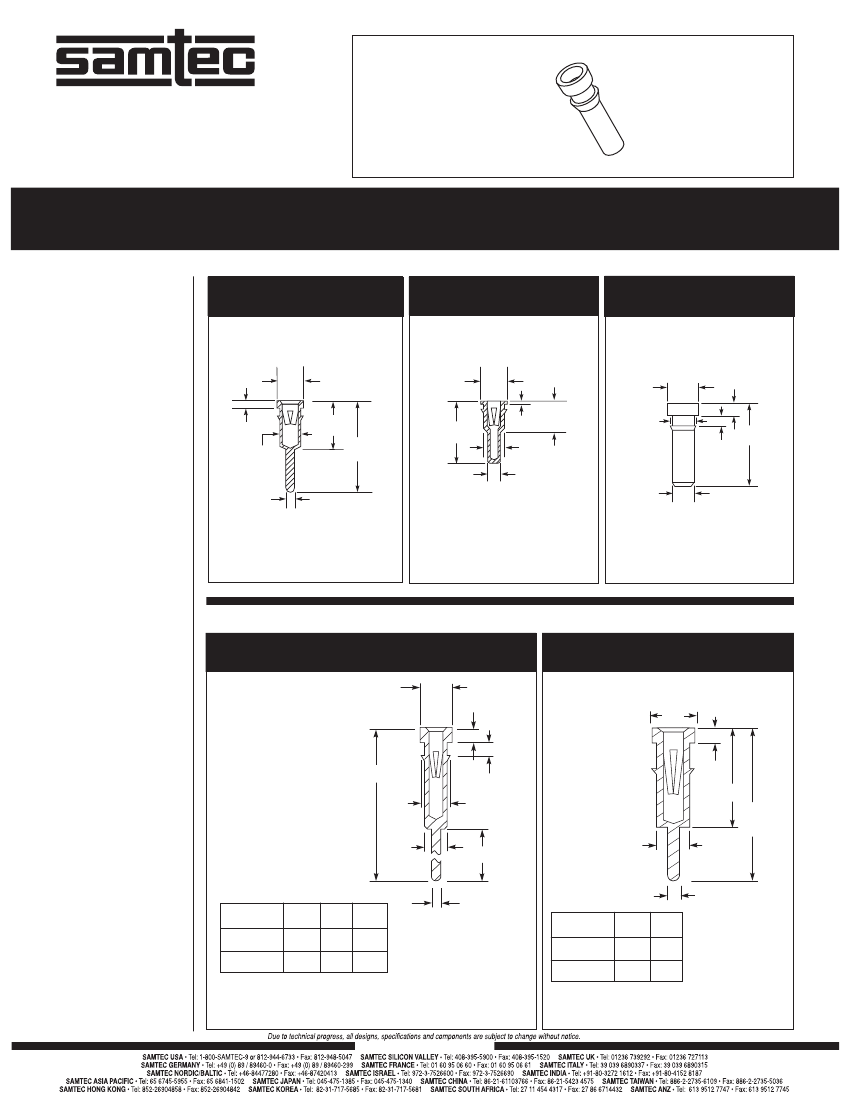

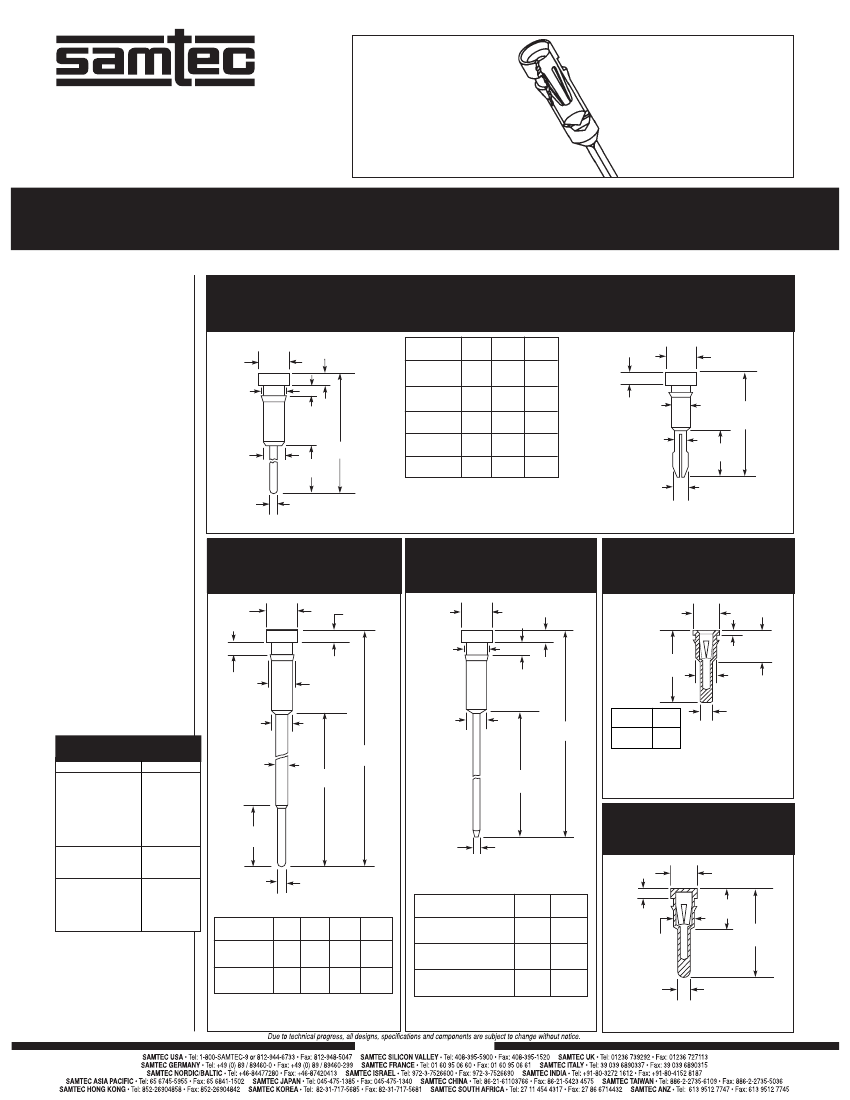

F-208 SUPPLEMENT

SC–7P1–GG

STANDARD, LOW PROFILE &

Speciﬁcations:

SC, SP, SK

Contact:

BeCu

Shell:

Brass

-GG Plating:

30µ" (0,76µm) Au over 50µ"

(1,27µm) Ni on contact;

10µ" (0,25µm) Au over 50µ"

(1,27µm) Ni on shell

-GT Plating:

30µ" (0,76µm) Au over 50µ"

(1,27µm) Ni on contact; Sn

over 50µ" (1,27µm) Ni on shell

-TT Plating:

Sn over 50µ" (1,27µm) Ni

on contact; Sn over 50µ"

(1,27µm) Ni on shell

-ST Plating:

10µ" (0,25µm) Au over 50µ"

(1,27µm) Ni on contact; Sn

over 50µ" (1,27µm) Ni on shell

Current Rating:

Contact Resistance:

10 mΩ max

Insertion Force (SC):

9 oz (2,50N) avg, 16 oz

(4,45N) max

Withdrawal Force (SC):

2.5 oz (0,70N) avg, 1.5 oz

(0,42N) min

Insertion Force (EZ):

2.5 oz (0,70N) avg, 5.5

(1,53N) oz max

Withdrawal Force (EZ):

2.0 oz (0,56N) avg, 0.35 oz

(0,10mm) min

Lead DIA Accepted:

.015" to .022" (0,38mm to

0,56mm) and most IC leads

RECOMMENDED

PC HOLE SIZE:

LEAD SIZE

(0,46) .018 DIA

(0,51) .020 DIA

(0,64) .025 DIA

(0,76) .030 DIA

(0,89) .035 DIA

(1,14) .045 DIA

(1,32) .052 DIA

(0,46) .018 SQ

(0,64) .025 SQ

(1,14) .045 SQ

(0,20) .008 x (0,71) .028

(0,25) .010 x (0,51) .020

(0,41) .016 x (0,51) .020

(0,41) .016 x (0,61) .024

(0,41) .016 x (0,79) .031

SC–1P1–, SC–6P1–, SC–1P3–, SC–2P1–

EZ–1P1–, EZ–6P1–, SC-7P1

(1,83)

.072

DIA

(1,52)

.061

DIA

(0,76)

.030

Part No.

SC–1L1–

EZ–1L1–

(1,83)

.072 DIA

DIA

(0,51)

.020

(0,51)

.020

±.010

(3,18)

.125

(4,57)

.180

±.015

(7,62)

.300

(8,89)

.350

(0,76)

.030

(0,76)

.030

DIA

(0,71)

.028

SC–1P1–

EZ–1P1–

SC–6P1–

EZ–6P1–

SC–1P3–

SC–2P1–

SC–7P1–

(0,64) (10,41) (15,24)

.025

.410

.600

(0,89) (12,95) (17,86)

.035

.510

.703

(0,51)

.020

(7,06)

.278

(11,25)

.443

(1.32)

.052

DIA (7,62)

.300

(3,43)

.135

(1,32)

.052

DIA

Insertion Depth (SC-1P1, SC-1L1, SC-6P1, SC-7P1)

= .95" to .145" (2,41mm to 3,68mm)

Insertion Depth (SC-2P1) = .125" to .157" (3,18mm to 3,99mm)

Insertion Depth (SC-1P3) = .095" to .138" (2,41mm to 3,51mm)

Plating Available (SC-1P1, SC-1L1) = GG, GT, TT, ST

Plating Available (SC-6P1, SC-2P1,SC-7P1) = GG, GT

(1,02)

.040

DIA

SC–2P3–,

EZ–2P3–, EZ–2P2–

(1,83)

.072

DIA

(0,76)

.030

SC–1W1–

EZ–1W1–

(1,83)

.072

DIA

(1,52)

.061

DIA

(0,76)

.030

SC–5P1–

EZ–5P1–

(1,83)

.072

DIA

(2,41)

(0,51)

.095

.020

(1,32)

.052

DIA

(0,71)

.028

(1,52)

.061

DIA

(0,71)

.028

(4,83)

.190

(1,32)

.052

DIA

(0,89)

.035

DIA

(1,32)

.052

DIA

SC–5P1–

(0,76)

EZ–5P1–

.030

Part No.

Insertion Depth (SC-5P1) = .080" to .150"

(2,03mm to 3,81mm)

Lead DIA Accepted: .016" to .020" (0,41mm to 0,51mm)

Plating Available (SC-5P1, EZ-5P1)= GG, GT, TT

HOLE SIZE

(0,61) .024 DIA

(0,66) .026 DIA

(0,79) .031 DIA

(0,91) .036 DIA

(1,04) .041 DIA

(1,30) .051 DIA

(1,47) .058 DIA

(0,76) .030 DIA

(1,02) .040 DIA

(1,75) .069 DIA

(0,89) .035 DIA

(0,71) .028 DIA

(0,79) .031 DIA

(0,89) .035 DIA

(1,04) .041 DIA

(0,64)

.025

DIA

SC–3P1–

EZ–3P1–

(1,83)

.072 DIA

Plating Available = GG, GT

Part No.

±.010

(12,95)

.510

(9,14)

.360

(6,60)

.260

±.015

(17,86)

.703

(14,05)

.553

(11,51)

.453

Part No.

DIA

±010

±015

SC–2P3–

EZ–2P3–

EZ–2P2–

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(0,51) (4,32)

.020 .170

(8,86) (13,77)

.349

.542

(0,46) (3,81) (12,95) (17,86)

.510

.703

.018 .150

SC–1W1–XX–1

EZ–1W1–XX–1

SC–1W1–XX–2

EZ–1W1–XX–2

SC–1W1–XX–3

EZ–1W1–XX–3

(0,76)

.030

(1,32)

.052

DIA

(0,76)

.030

DIA

(3,10)

.122

(5,84)

.230

Insertion Depth (SC-2P2) =

.125" to .145" (3,18mm to 2,41mm)

Insertion Depth (SC-2P3) =

.125" to .170" (3,18mm to 4,32mm)

Insertion Depth=

.125" to .157" (3,18mm to 3,99mm)

Plating Available = GG, GT, TT

Insertion Depth = .105" to .170" (2,67mm to 4,32mm)

Lead DIA Accepted: .015" to .020" (0,38mm to 0,51mm)

Plating Available = GG, GT, TT

WWW.SAMTEC.COM

SC-1S1-GT Related Products

	SC-1S1-GT	L42-B0-26-410-28A-CA	SC-2P4-GT	EZ-2P2-GG	SC-2P1-GG	EZ-1S1-GT	EZ-3P1-GT
Description	PCB Terminal	Magnetic Circuit Breaker,	PCB Terminal	PCB Terminal	PCB Terminal	PCB Terminal	PCB Terminal
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknown	unknown
Maker	SAMTEC	-	-	SAMTEC	SAMTEC	SAMTEC	SAMTEC
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	SC	-	SC	EZ	SC	EZ	EZ
terminal gender	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Terminal and terminal strip types	PCB TERMINAL	-	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL
