853-93-078-30-001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 853-93-078-30-001

853-93-078-30-001: DescriptionBoard Connector, 78 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket; CategoryThe connector The connector; File Size244KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

853-93-078-30-001 Overview

Board Connector, 78 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket

853-93-078-30-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: 0489-0-15-01-11-02-04-0
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	853
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	78
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

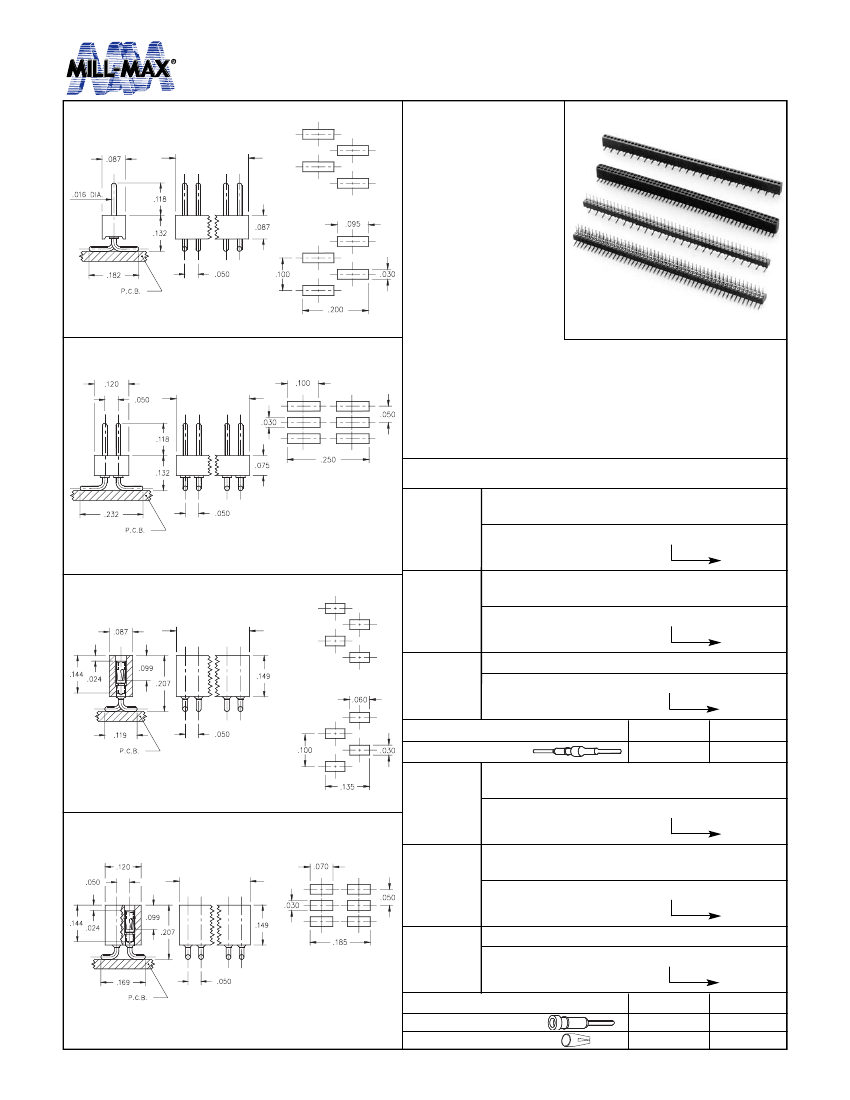

INTERCONNECTS

.050” Grid

Surface Mount Headers and Sockets

Left Hand

Footprint

(Number of Pins

X .050”) + .015”

Series 850, 851

852, 853

Right Hand

Footprint

•

Series 850 and 851

interconnects are

available in single

and double row

form.

•

Single row intercon-

nects having an

even number of pins

are now available

with a left or right

hand footprint.

•

Headers (850 &

852) use MM# 4006

pins. (See page 166 for details)

Footprint

Fig. 1

(Number of Pins

X .050”/2) + .015”

•

Sockets (851 & 853) use MM# 0489 receptacles and

accept pin diameters from .015-.021. (See page 129

for details)

•

Insulators are high temp. thermoplastic.

Ordering Information

Single Row Header, Left Hand Footprint

Odd or Even # of pins

Fig. 1L

Fig. 2

Left Hand

Footprint

(Number of Pins

X .050”) + .015”

850-XX-0_ _-30-001

Specify # of pins

01-50

Single Row Header, Right Hand Footprint

Even # of pins

Fig. 1R

850-XX-0_ _-30-002

Specify even # of pins

02-50

Double Row Header, Even # of pins

Right Hand

Footprint

Fig. 2

852-XX-_ _ _-30-001

Specify even # of pins

002-100

10μ” Au

200μ”Sn/Pb

SPECIFY PLATING CODE XX=

Pin Plating

Fig. 3

Single Row Socket, Left Hand Footprint

Odd or Even # of pins

Fig. 3L

851-XX-0_ _-30-001

Specify # of pins

01-50

Single Row Socket, Right Hand Footprint

Even # of pins

Footprint

(Number of Pins

X .050”/2) + .015”

Fig. 3R

851-XX-0_ _-30-002

Specify even # of pins

02-50

Double Row Socket, Even # of pins

Fig. 4

853-XX-_ _ _-30-001

Specify even # of pins

002-100

SPECIFY PLATING CODE XX=

Fig. 4

w w w. m i l l - m a x . c o m

Sleeve (Pin)

Contact (Clip)

200μ” Sn/Pb 200μ”Sn/Pb

30μ” Au

200μ”Sn/Pb

516-922-6000

Recommended Resources
